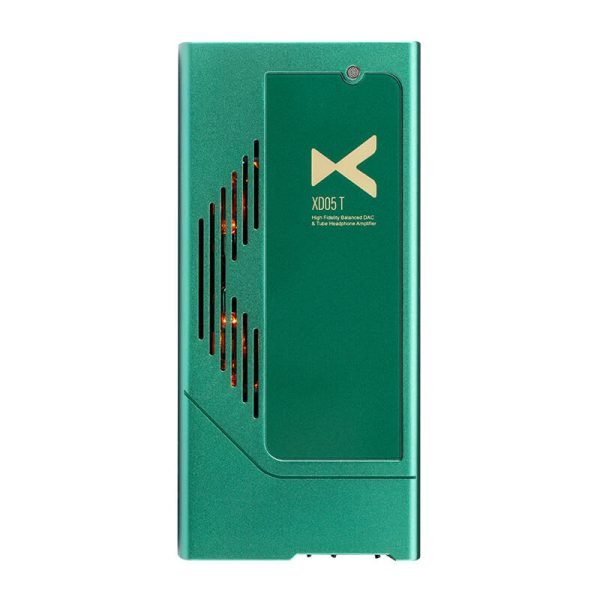

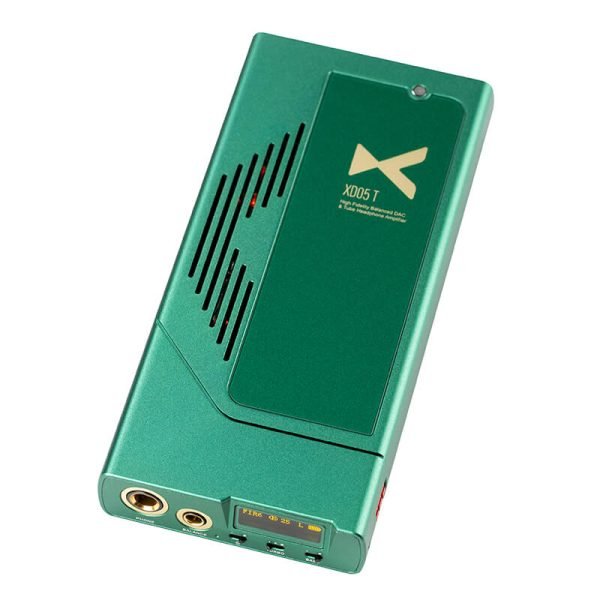

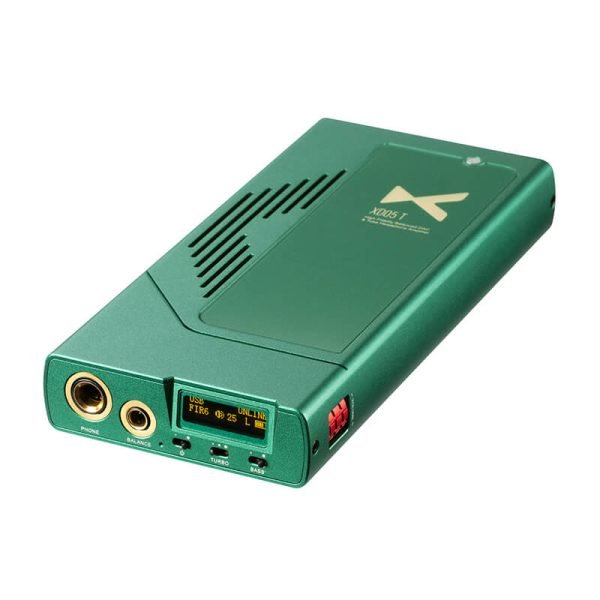

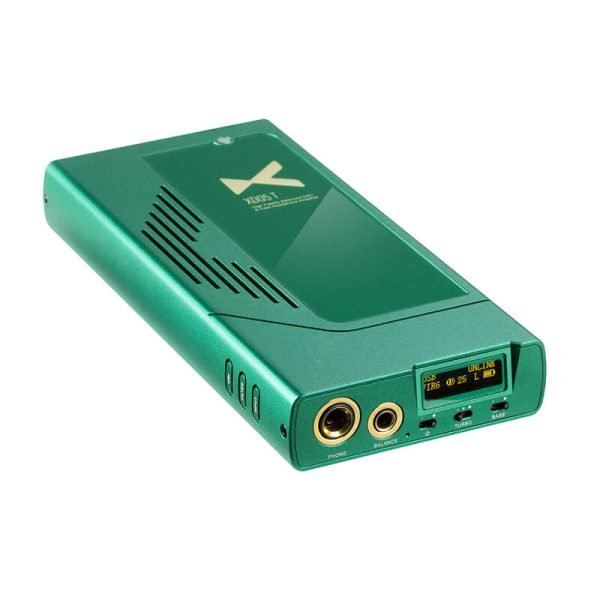

xDuoo - XD05T Portable DAC & Headphone Amplifier
Legendary Tube Sound in Your Pocket
Experience the warmth and emotion of classic analog audio. The xDuoo XD05T uses carefully selected 1960s vintage vacuum tubes to deliver smooth, rich harmonics that bring your music to life with a natural, velvety tone.
True Vintage Tubes – Matched and Rare
Equipped with original vacuum tubes from the 1960s, hand-selected and precisely matched. These discontinued gems are no longer in production, making every unit a rare piece of audiophile history.
Desktop Power, Portable Freedom
Use it anywhere—thanks to dual power options (battery or DC), the XD05T works perfectly as a portable amp or a stationary desktop unit. Flexible and ready to go wherever your music takes you.

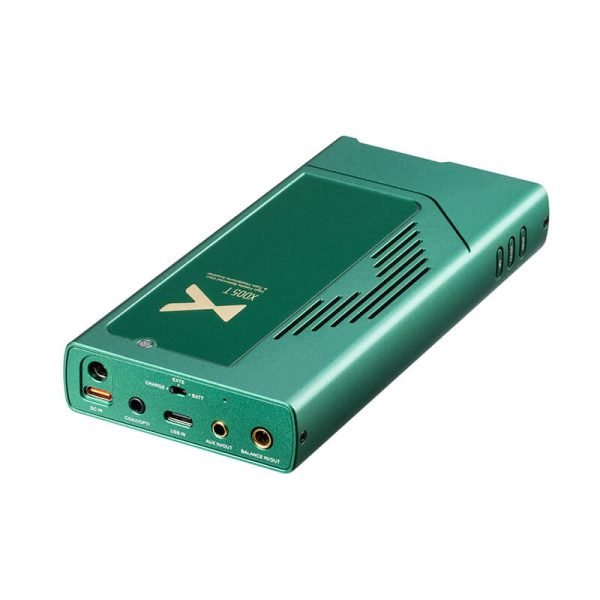

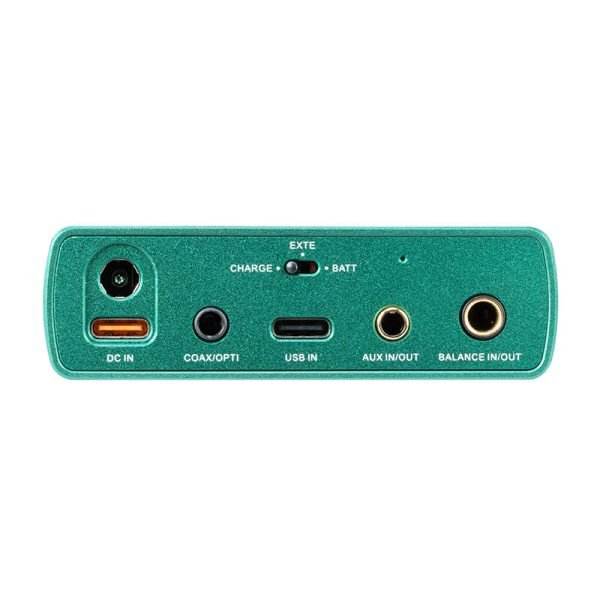

8 Audio Modes for Ultimate Flexibility
Easily connect to a wide range of audio devices. With multiple input and output options, the XD05T supports up to 8 different use scenarios—perfect for DACs, smartphones, laptops, players, and more.

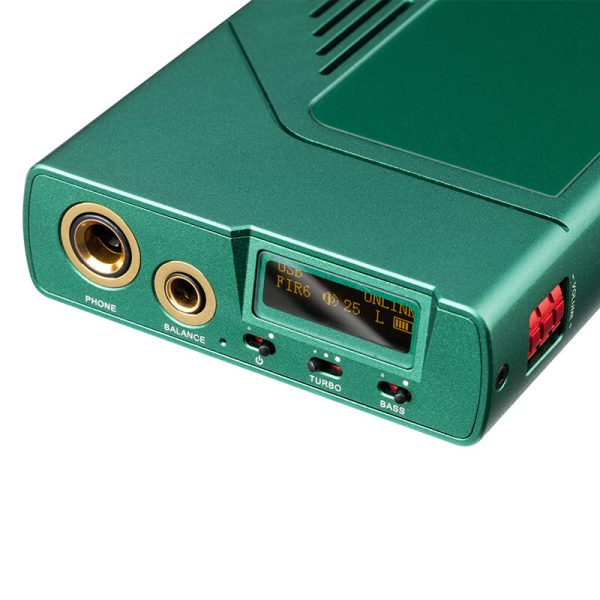

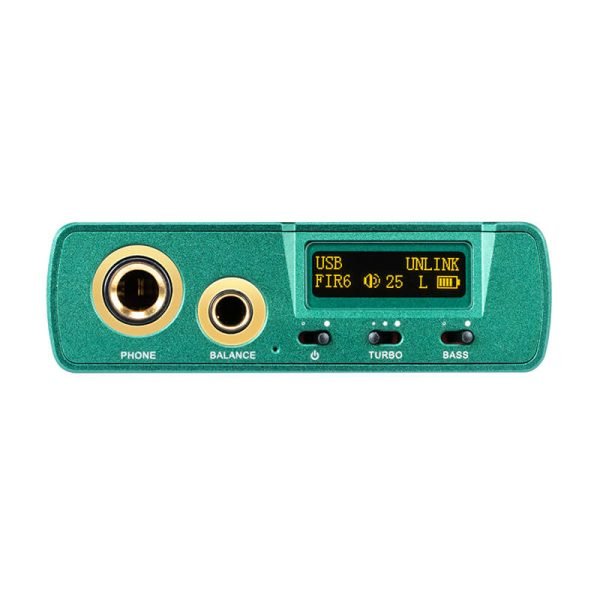

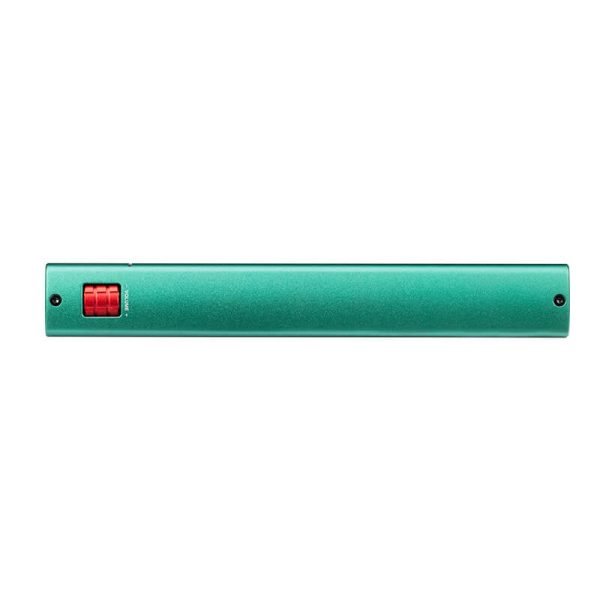

Ultra-Precise Volume Control
Fine-tune your sound with 99 levels of digital volume adjustment. Even with sensitive IEMs, you’ll enjoy pinpoint control without sudden jumps in loudness—just smooth, tailored audio at every level.
Specification
| DAC CHIP | ESS ES9039Q2M*2 |
|---|---|
| USB CHIP | XMOS XU316 |
| USB Support Format | PCM 16–32Bit / 44.1k–768kHz, DSD64–512, MQA 1-8X |
| Bluetooth CHIP | QCC5125, Bluetooth 5.1 |
| Bluetooth Format | SBC / AAC / APTX / APTX_LL / APTX_HD / LDAC |
| Unbalanced Output Parameters | Output Power: 32Ω@750mW (THD+N≤5%) 300Ω@83mW (THD+N≤5%) Output Impedance: <0.2Ω Peak Voltage: 15Vrpp (TURBO) Frequency Response: 20Hz–20kHz (±0.5dB) Crosstalk: ≥75dB THD+N: 0.5% SNR: ≥114dB |
| Balanced Output Parameters | Output Power: 32Ω@1500mW (THD+N≤5%) 300Ω@565mW (THD+N≤5%) Output Impedance: <0.2Ω Peak Voltage: 26Vrpp (TURBO) Frequency Response: 20Hz–60kHz (±0.5dB) Crosstalk: ≥105dB THD+N: 0.5% SNR: ≥116dB |
| AUX OUT Parameters | Output Level: 2.0V THD+N: 0.00065% SNR: ≥120dB Crosstalk: ≥100dB |
| BAL-LO Parameters | Output Level: 4.0V THD+N: 0.00065% SNR: ≥124dB Crosstalk: ≥100dB |
| Other Information | Applicable OS: Windows, Linux, Mac OS, iOS, Android Protection Circuits: Overheating / Overload / DC Protection Battery: 3.7V / 6000mAh Battery Life: USB IN ≈11H, SPDIF IN ≈14H, AUX IN ≈4.5H Charging Time: About 3.5 hours (fast charging) | 10 hours (slow charging) Size: 16.8 × 7.8 × 2.3 cm Weight: 0.4 kg |
| Warranty | 1 Year |
