xDuoo - MT-601S Headphone Portable Amplifier
Valve & Transistor Amplifier
xDuoo MT601S is the updated version of xDuoo, with the better 12AU7 valve for greater music. With the combined effort of the new 12AU7 and a transistor, the bass and vocal will sound warm and honey but full of details, while the treble magnificent and live. For a change of flavor, the 12AU7 can be replaced with ECC82 and other valves/tube.
Headphone Amplifier or Preamp
Transistor is used to increase the current while maintaining the voltage at a high level, so the output will be powerful enough to drive any kind of earphone. This amplifier, thanks to the valve’s ability to tune the music, could also serve as a preamp with a subsequent power amplifier or speaker as a set of stereo system.
Great Compatibility

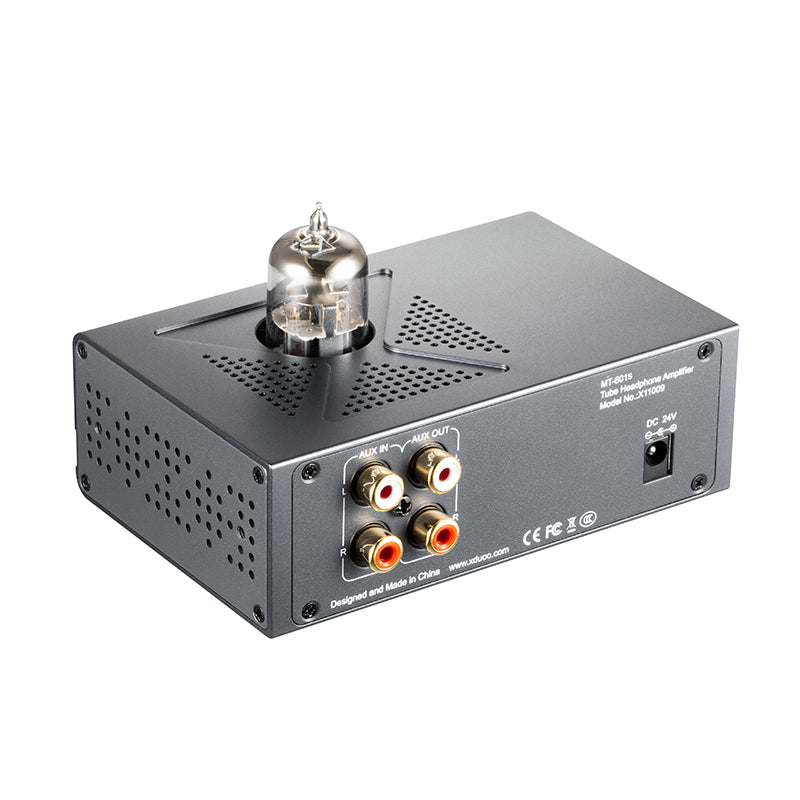

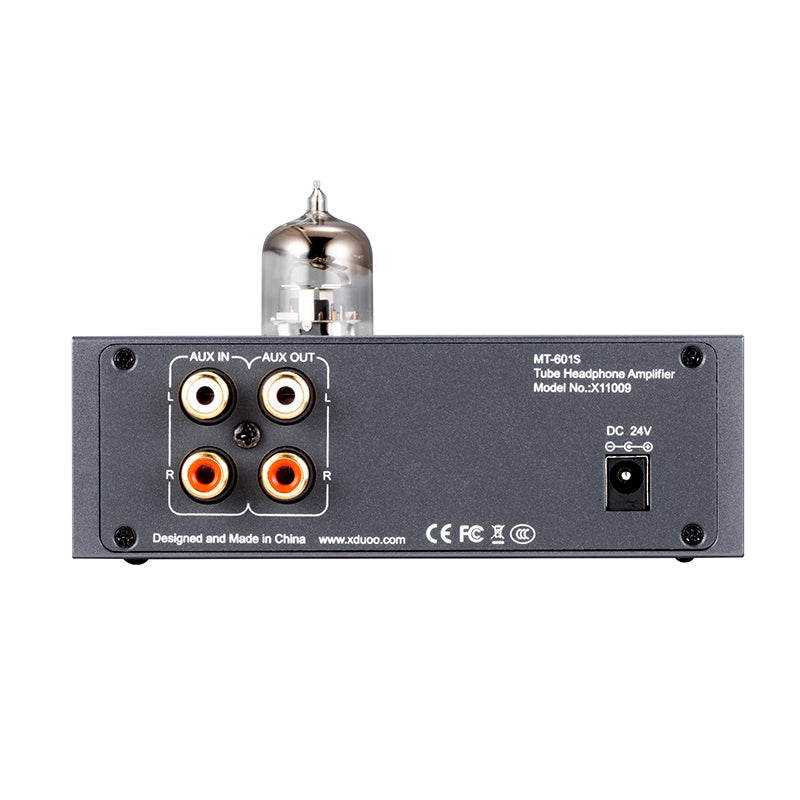

MT601S is designed to work in multiple scenarios, as a headphone amplifier, a preamp with a power amplifier or a speaker, thus it has four AUX ports for input and output to fulfill the demand of a full set of stereo system.
Matte Aluminum Alloy Case
The light grey matte case can blend in with any style and won’t disturb the theme of your home or office, while the aluminum alloy that made said case could resist interference to the circuit.
Portable Amplifier
With minimalism and compact design, this amplifier weighs only 0.36kg thus great for family use. Not only that, but it is also no bigger than the average size of a human hand, making it a true portable amplifier.
Specification
| Power Supply | DC24V/1A |
|---|---|
| Gain | 18dB |
| Output Power | 200mW(320hm) |
| Dynamic Range | 85dBA(320hm) |
| Frequency Response | 10Hz~60KHz(±0.5dB) |
| S/N | > 100dB |
| Headphone Impedance | 16~600 Ohm |
| THD+N | <0.01%(1KHz & 320hm) |
| Size | 12*7.8*4cm |
| Weight | 0.36kg |
| Inside the Box |
1 x xDuoo MT-601S User Manual |
