Gateron - Box Ink V2 Switch
Short Travel-Distance, Fast Actuation
Expanding on the original Ink V2 switches, the Gateron Box Ink Switches incorporate a shorter travel distance (about 3.4 mm) as well as a black-plated spring for a fast rebound. Compared to other ordinary mechanical switches, the Box Ink Switch is lighter and triggers faster.
Long Operation Life
15.4 mm (Box Ink Pink) and 20 mm (Box Ink Black) plating black springs and brand new anti-oxidation gold contacts improve the oxidation performance and guarantee the switch for about 60 million cycles.
Brand-New Design
Featuring a smoky-transparent housing and opaque colored dustproof “Wall” stem, this mechanical switch has less stem wobbliness than other gateron switches, which makes it more stable when typing. The newly ink black and ink pink physical design also adds a little mystery to this switch to add more enjoyment when typing.

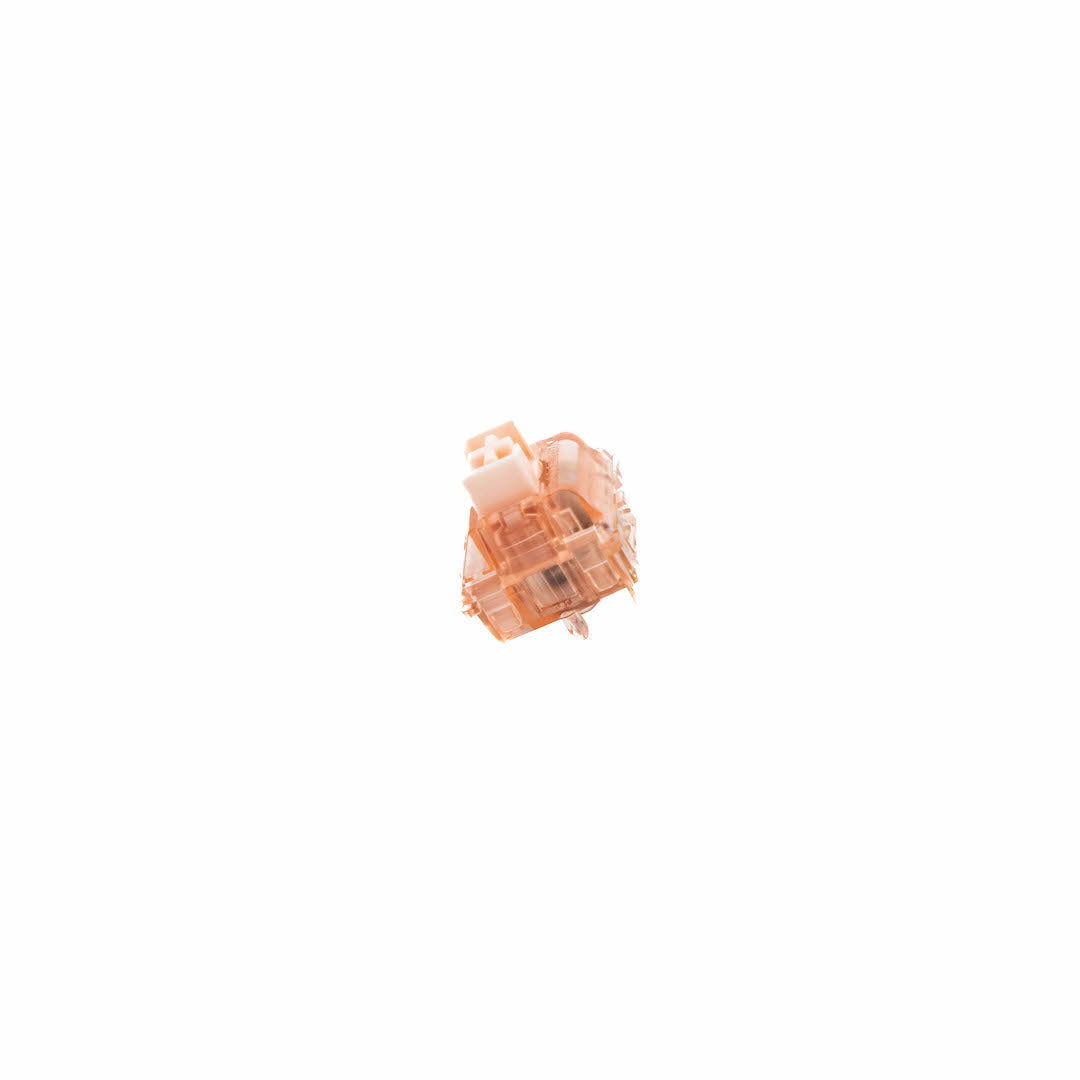

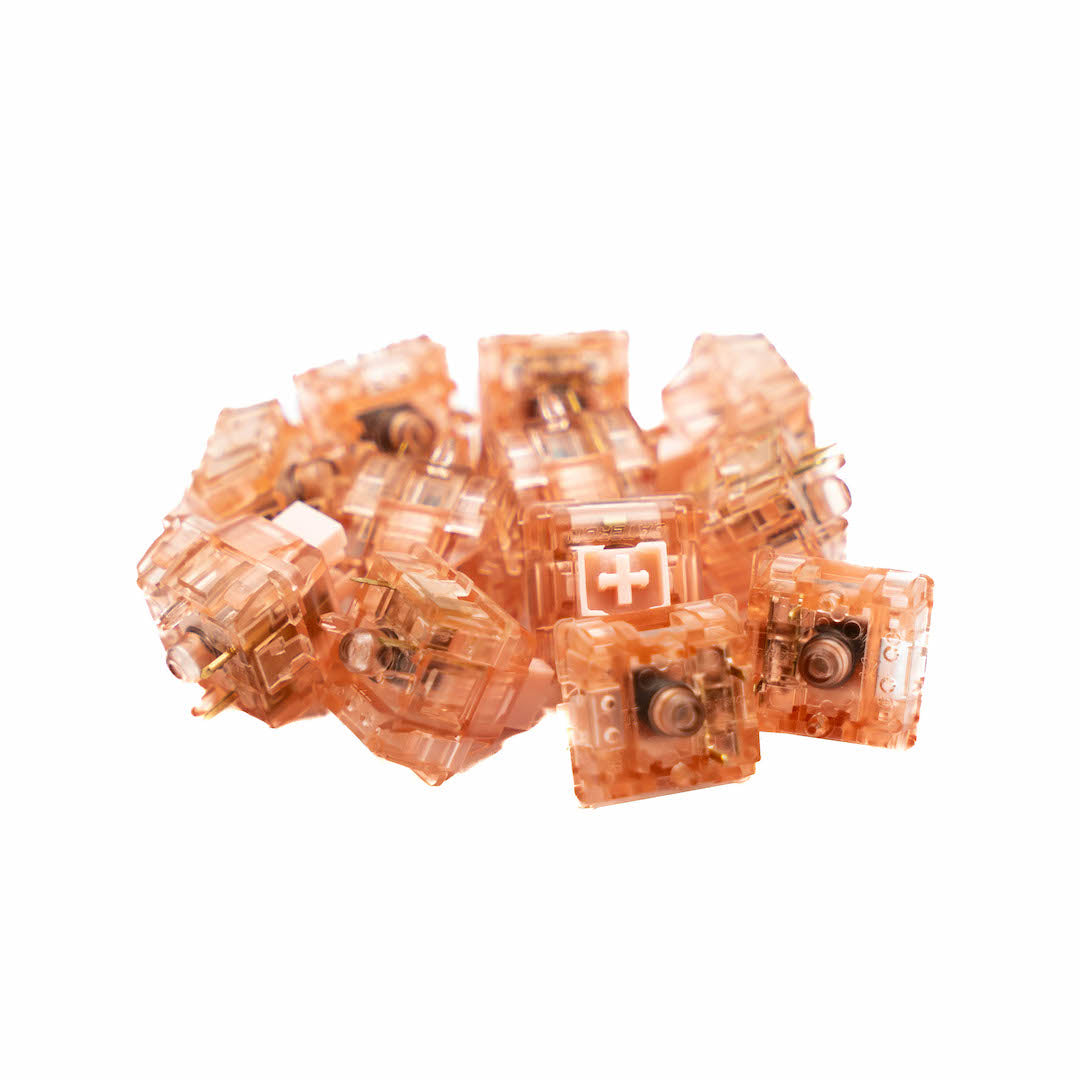

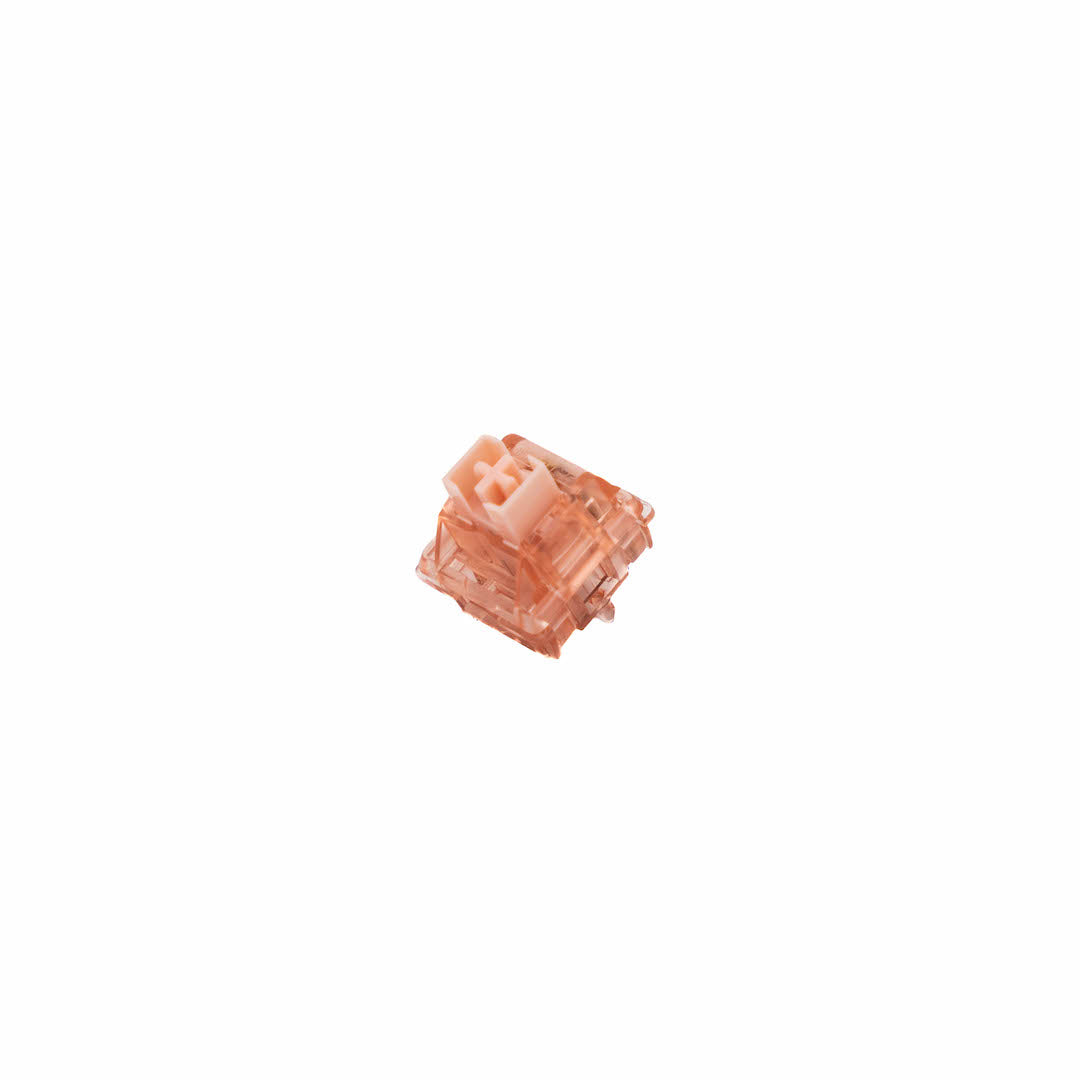

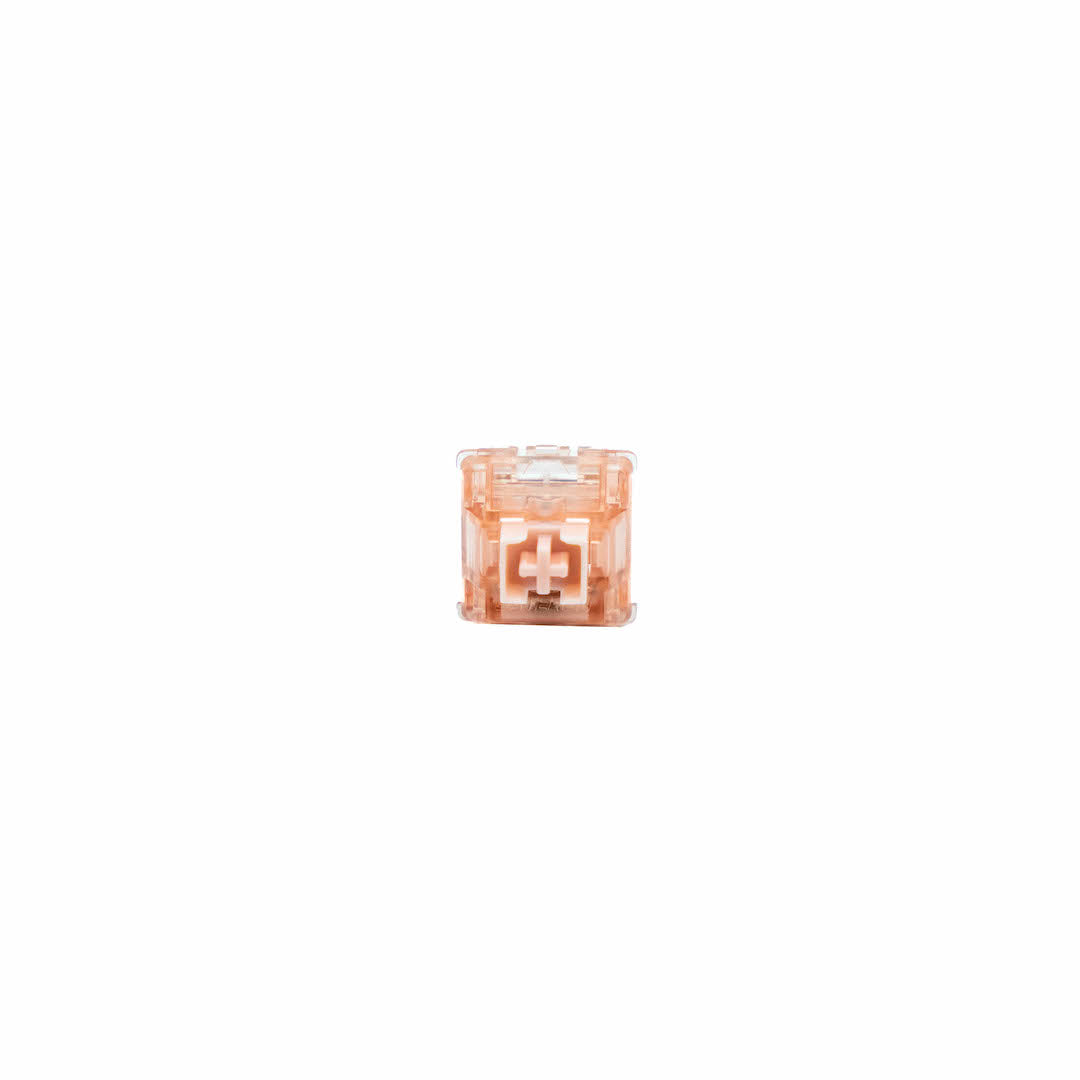

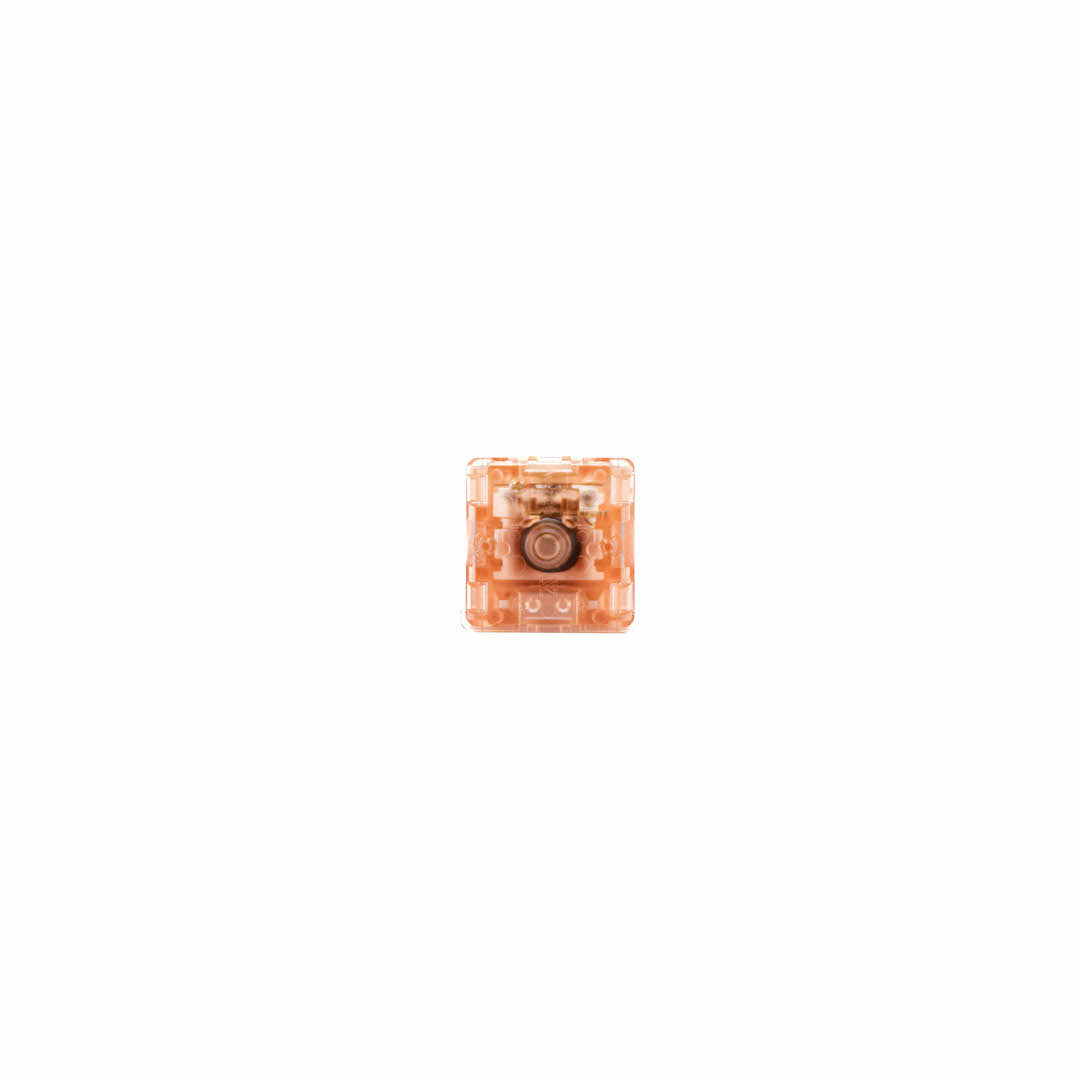

Box Ink Pink
Type: Linear
Operation Force: 50±15 gf
Pre-Travel: 1.2±0.3 mm
Total Travel: 3.4+0.0/-0.4 mm
Hand Feeling: Vertical, light pressing force, soft rebound
Operation Life: Up to 60M cycles

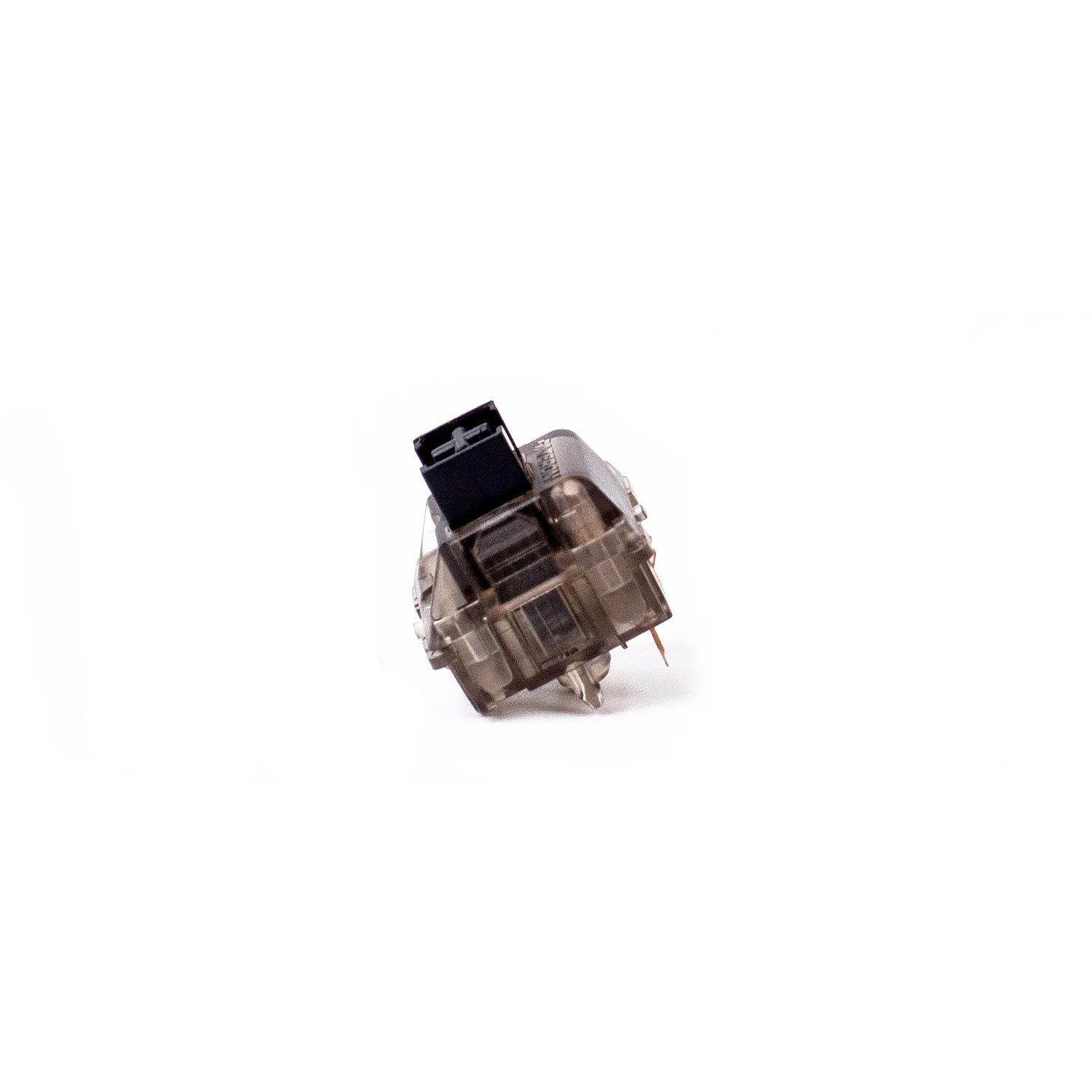

Box Ink Black
Type: Linear
Operation Force: 60±15 gf
Pre-Travel: 1.2±0.3 mm
Total Travel: 3.4+0.0/-0.4 mm
Hand Feeling: Vertical, moderate pressing force, clear rebound
Operation Life: Up to 60M cycles
Specification
| Product Name | Gateron Box Ink V2 Switch |
|---|---|
| Stem | POM, MX stem |
| Housing | Proprietary Ink material, Smokey-transparent housing |
| Spring | Stainless steel |
| Pins | 5-Pin switch |
| Lubrication | Yes |
| SMD LED Support | Yes |
| Compatibility | Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards. |
| Warranty | 1 Year |
