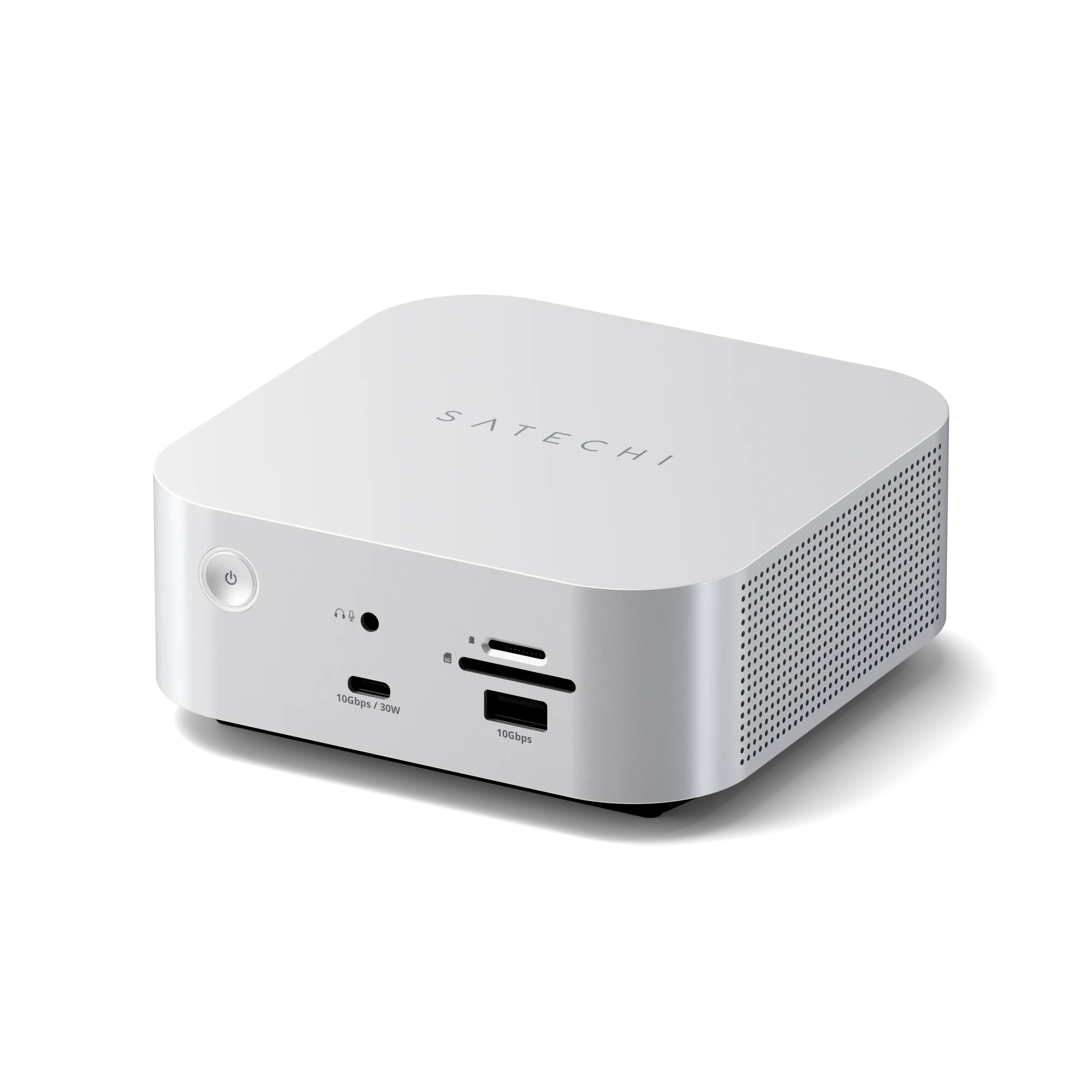

Satechi - Thunderbolt 5 CubeDock™ with SSD Enclosure
By Satechi
SKU: ST-DT5CES-EU
€469,00
Satechi Thunderbolt 5 CubeDock with SSD Enclosure is a powerful docking station offering up to 140W host charging, ultra-fast Thunderbolt 5 speeds, built-in NVMe SSD support up to 8TB, and versatile connectivity for professional workflows.
Satechi - Thunderbolt 5 CubeDock™ with SSD Enclosure
Up to 120Gbps speed and 140W charging—everything you need in one compact Thunderbolt 5 cube.
Charge, Connect, and Create Effortlessly
One cube unites every connection—turning cable chaos into seamless simplicity.
Next-Gen Technology

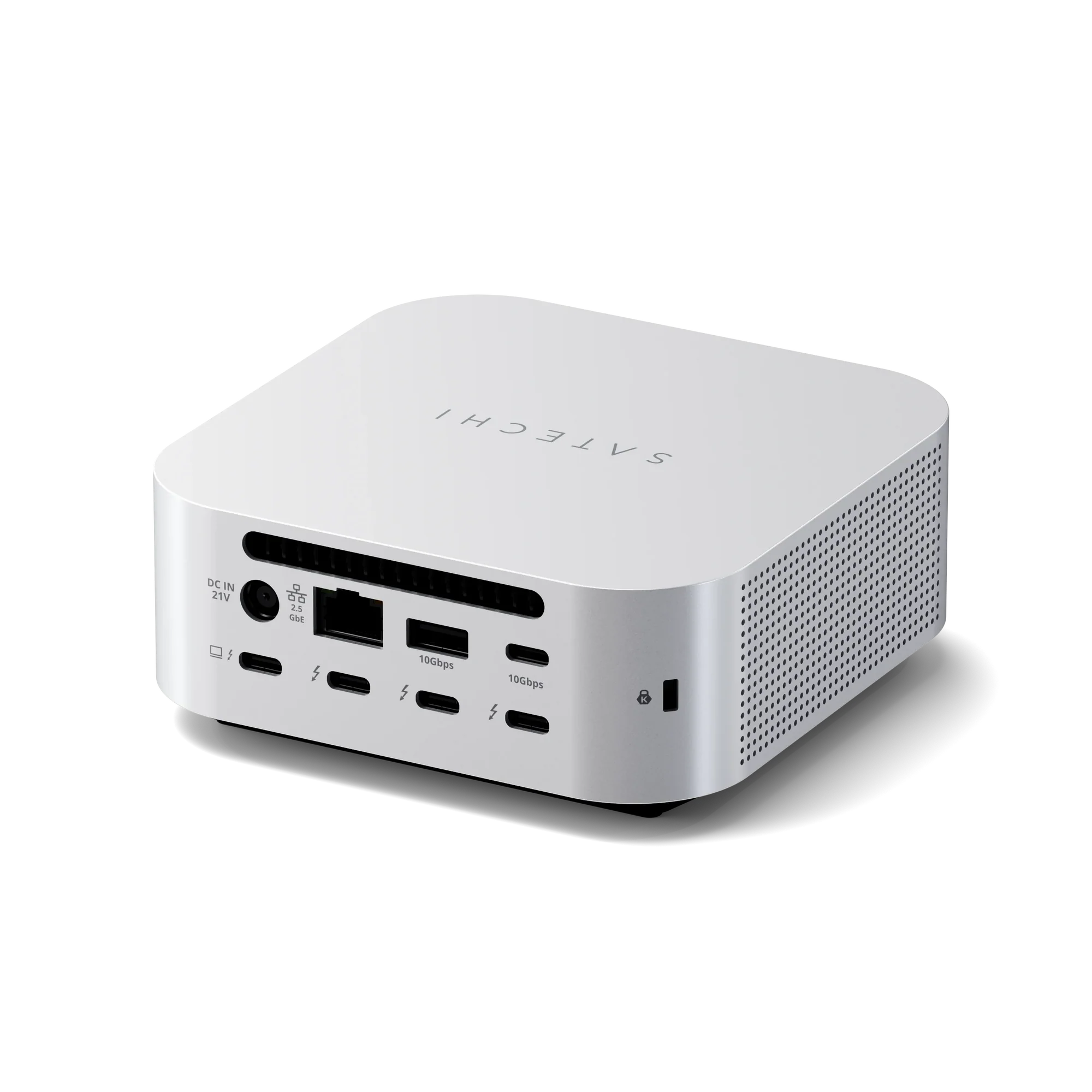

Every Port You Need.

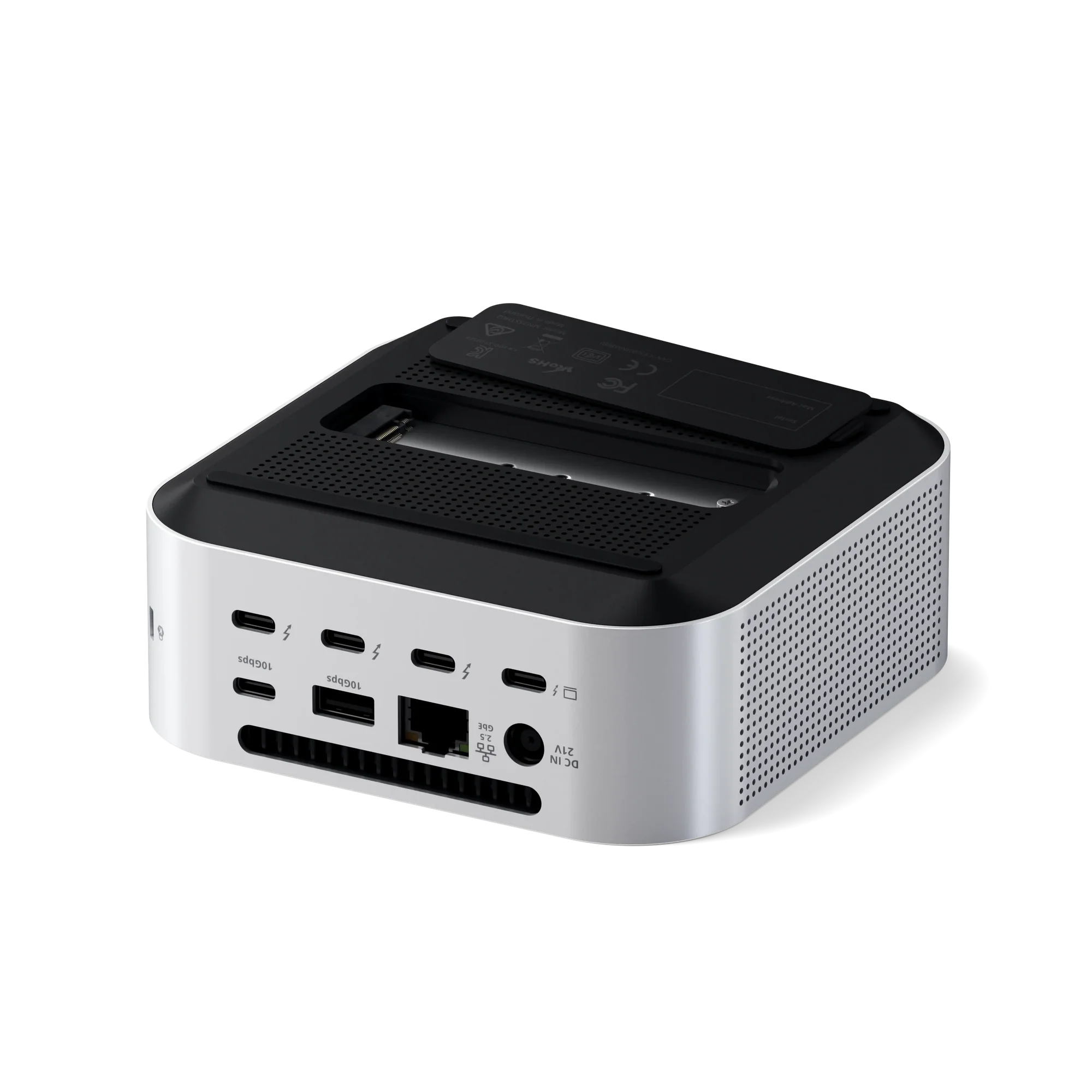

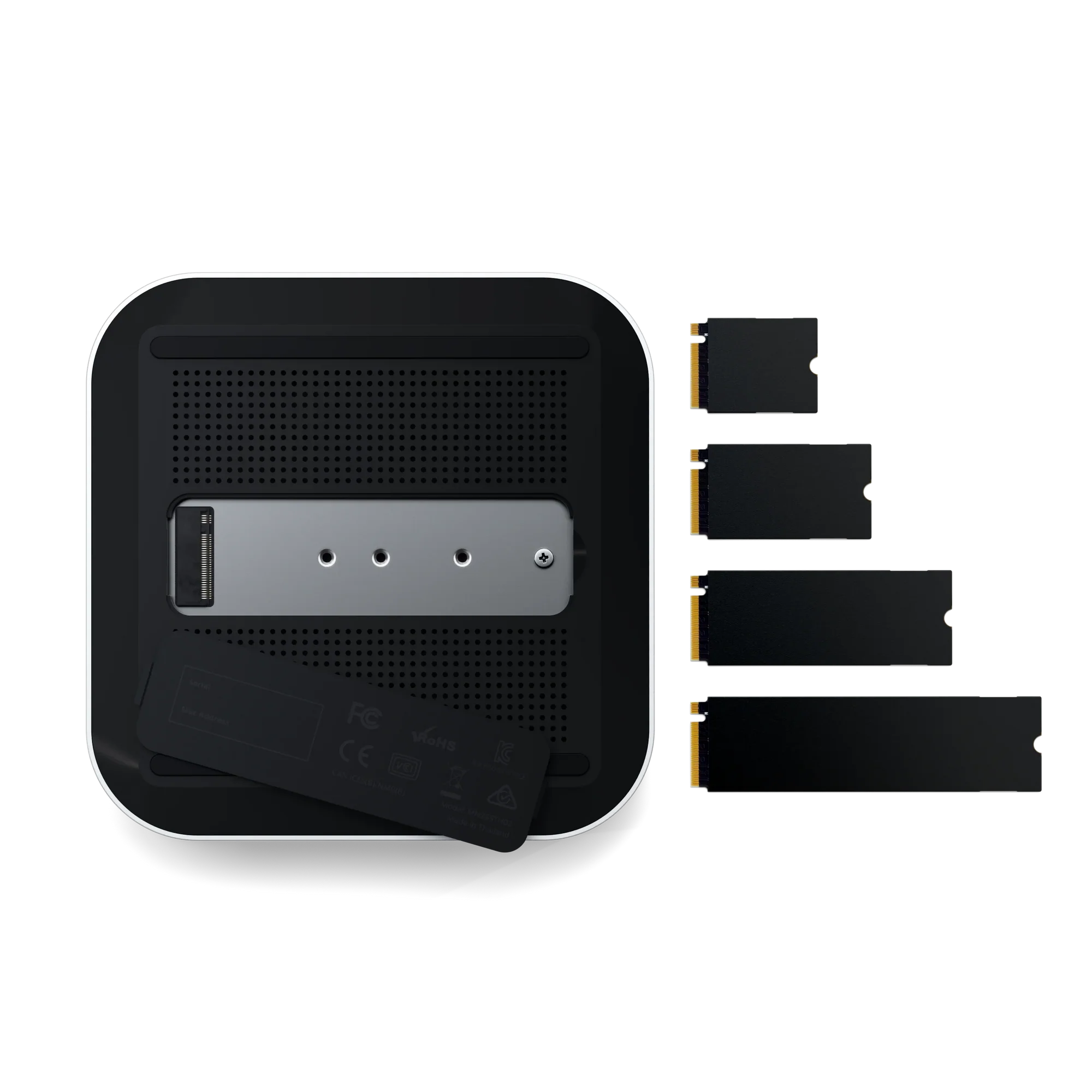

Built-In SSD Enclosure
Add up to 8TB of M.2 NVMe storage (PCIe 4×4) and work directly from your dock at up to 6000MB/s speeds—no external drives required.

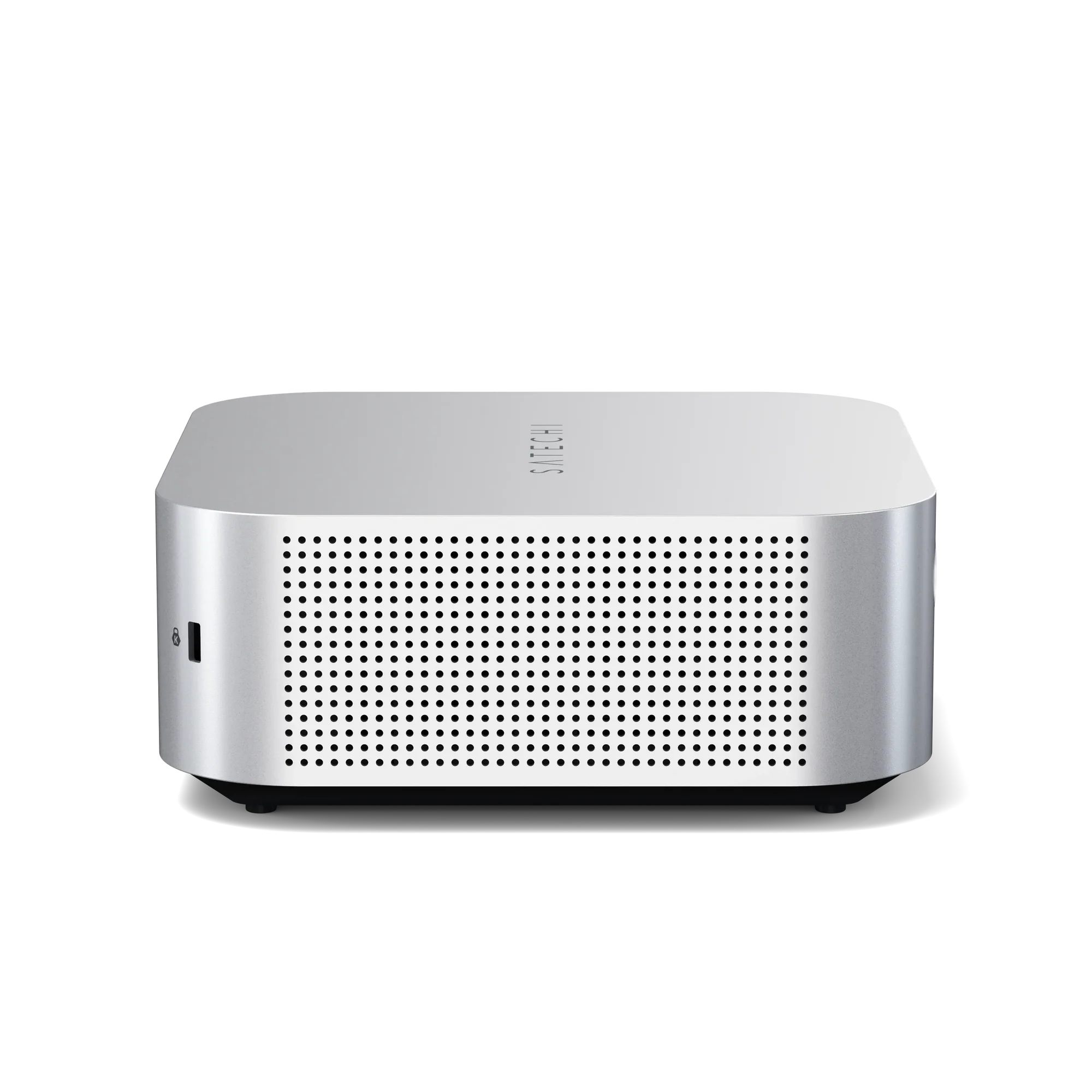

Quiet Strength, Inside Out
A smart fan curve and vented aluminum chassis maintain peak performance 30–50% cooler under load—whisper-quiet, steady, and built to last.
Specification
| Dimensions & Weight | Length: 12.7 cm / 5 in. Width: 12.7 cm / 5 in. Height: 5.2 cm / 2.04 in. Weight: 588.9 g |
|---|---|
| 1 x Thunderbolt 5 (Upstream) | 80/120Gbps, up to 140W host charging |
| 3 x Thunderbolt 5 (Downstream) | 80Gbps Data Bandwidth each 15W power output each Single Display up to 8K@144Hz (Windows), 6K@60Hz (macOS) Dual Display up to 8K@120Hz each (Windows) , 6K@60Hz each (macOS) Triple Display up to 8K@60Hz each (Windows) Triple Display not supported on macOS |
| 1 x M.2 SSD Enclosure | Supports 2230/2242/2260/2280 M.2 NVMe SSD sizes Up to 8TB capacity Up to 6000MB/s |
| 1 x USB-C Data + Power | Up to 10Gbps, up to 30W charging |
| 1 x USB-C Data | Up to10Gbps, up to 7.5W charging |
| 1 x USB-A Data 1 (Front) | Up to10Gbps, up to 7.5W charging |
| 1 x USB-A Data 2 (Back) | Up to10Gbps, up to 4.5W charging |
| 1 x SD Card Reader | UHS-II, up to 312MB/s |
| 1 x microSD Card Reader | UHS-II, up to 312MB/s |
| 1 x 3.5mm Audio Jack | Output/ Input Support |
| 1 x 2.5G Ethernet Port1 x DC Port | 180W Smart Power Supply |
| Warranty | 2 Years |
Compatibility
| MacBook Pro | MacBook Pro M5 (14-inch, 2025) |
|---|---|
| MacBook Pro M4 Pro/ M4 Max (14” & 16”, 2024) | |
| MacBook Pro M4 (14-inch, 2024) | |
| MacBook Pro M3 Pro/ M3 Max (14” & 16”, 2023) | |
| MacBook Pro M3 (14-inch, 2023) | |
| MacBook Pro M2 Pro/ M2 Max (14” & 16”, 2023) | |
| MacBook Pro M2 (13-inch, 2022) | |
| MacBook Pro M1 Pro/ M1 Max (14” & 16”, 2021) | |
| MacBook Pro M1 (13-inch, 2020) | |
| MacBook Air | MacBook Air M4 (13” & 15”, 2025) |
| MacBook Air M3 (13” & 15”, 2024) | |
| MacBook Air M2 (15-inch, 2023) | |
| MacBook Air M2 (13-inch, 2022) | |
| MacBook Air M1 (13-inch, 2020) | |
| iMac | iMac M4 (2024) |
| iMac M3 (2023) | |
| iMac M1 (2021) | |
| Mac Mini | Mac Mini M4/ M4 Pro (2024) |
| Mac Mini M2/ M2 Pro (2023) | |
| Mac Mini M1 (2021) | |
| Mac Studio | Mac Studio M4 Max/ M3 Ultra (2025) |
| Mac Studio M2 Max/ M2 Ultra (2023) | |
| Mac Studio M1 Max/ M1 Ultra (2022) | |
| Mac Pro | Mac Pro M2 Ultra (2023) |
| Windows | Microsoft Surface Laptop Studio |
| Lenovo ThinkPad X13 Gen 2 | |
| Lenovo X1 Gen 1 Carbon | |
| Dell XPS 13 9315 | |
| OS Compatibility | Windows 11 macOS X 10.6-10.12 or later Windows PC System Requirements: Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4, or USB 3.2 Gen2 with DP Alt Mode Type-C ports required for optimal use |
| Note | Downwards compatibility with Thunderbolt 4, USB4, Thunderbolt 3, USB-C devices.(Speeds may vary) SSD not included. |
