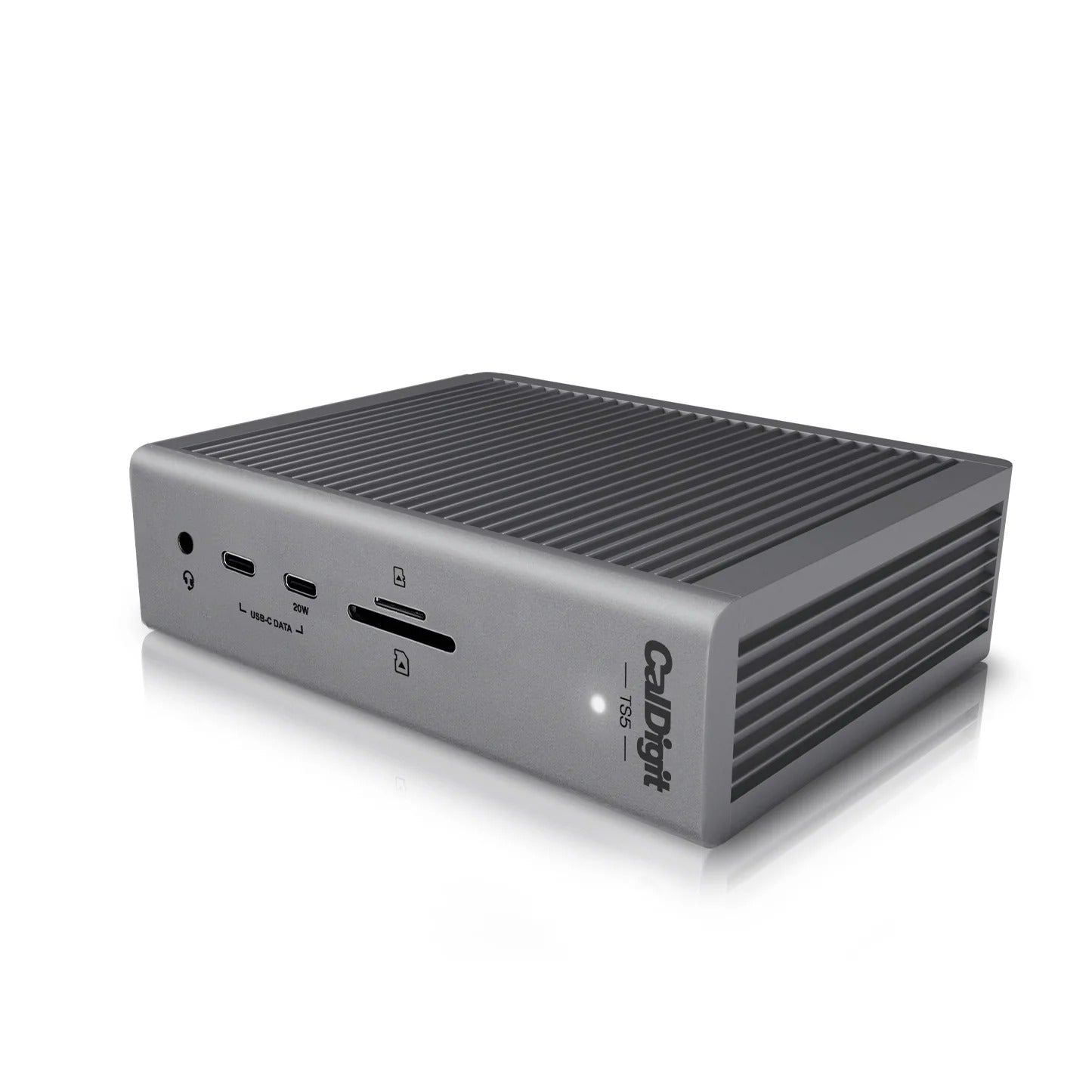

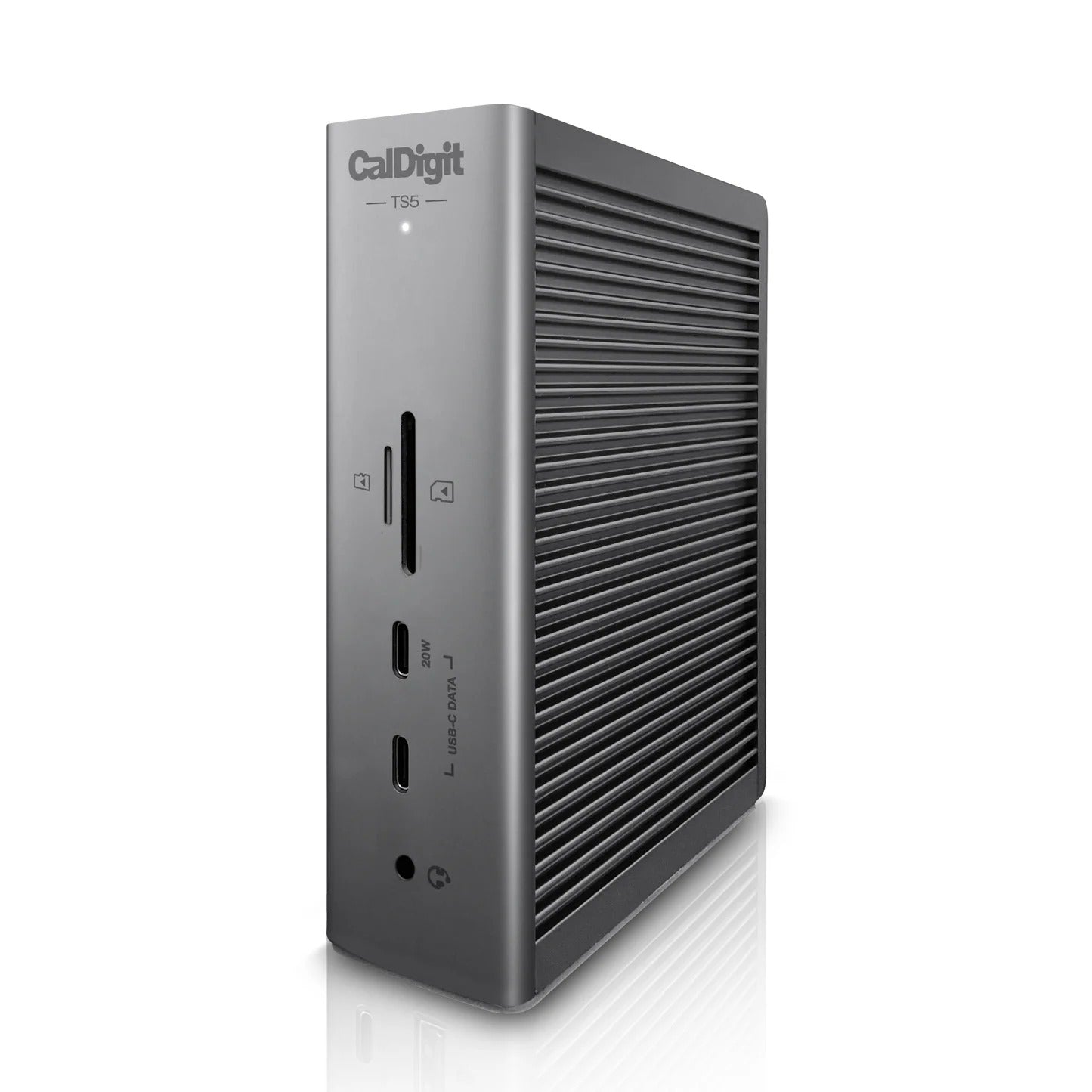

CalDigit - TS5 - Thunderbolt 5 Dock
This dock features a combined total of 15 ports, including 4x Thunderbolt 5 80Gb/s ports. Having four Thunderbolt 5 ports is ideal for users that want the flexibility to connect the exact devices they want to the TS5.
The 140W power delivery is perfect for even the most demanding laptops like the 16” MacBook Pro with M3/M4 Pro or Max chips that require 140W. The 240W power supply is more compact than previous generations, and the built-in 2.5GbE port is 2.5X faster than traditional 1GbE.
All About The Ports
The TS5 is built from the ground up with connectivity in mind. It is packed full of essential ports ready to take your workflow to the next level.
This dock features a combined total of 15 ports, including four Thunderbolt 5 80Gb/s ports. In addition to all of this connectivity, the TS5 will charge your laptop up to 140W.
BIG ON PORTS.
Delivering 15 ports, all of which can be used at the same time, this dock packs all the ports most of us would ever need.
140W Power Delivery
The TS5 provides up to 140W power delivery for even the most demanding laptops. This makes it ideal for laptops like the 16″ MacBook Pro with M4 Pro or M4 Max chips which require 140W.
Whilst many other Thunderbolt 5 docks state that they can charge at up to a certain wattage, they actually include an insufficient power supply. These docks will allocate host power based on how many devices are connected to them. Some of the host power will move to newly attached devices, thereby reducing the power delivery.
Rest assured that the CalDigit TS5’s power supply will always provide the full 140W power delivery, and will never drop that performance even when new devices are connected to the TS5.
For laptops or tablets that require less than 140W, the TS5 will only supply the wattage required by your device.
Thunderbolt 5
The TS5 features four 80Gb/s bi-directional Thunderbolt 5 ports, which are double the performance of Thunderbolt 4.
The PCIe performance of the the Thunderbolt ports have been doubled from the previous generation to 64Gb/s PCIe 4.0. This is ideal if you are intending on connecting high performance SSDs or RAID devices to the TS5. This powerful dock will support transfer speeds up to 6,200MB/s.
5 Powerful USB Ports
The TS5 features 5 USB ports in order to attach multiple accessories to the dock*.
Four of the USB ports on the TS5 offer 10Gb/s performance, and one of the USB-A ports provides USB 2.0 performance for keyboards or mice.
*USB-C & USB-A ports are for data only. Monitors must be connected to the spare Thunderbolt 5/USB4 v2 ports.
36 W mocy dla akcesoriów
Urządzenie TS5 Plus jest wyjątkowe, a wbudowanie portu USB-C o mocy 36W sprawia, że jest to wygodny i wydajny port z przodu urządzenia, idealny nawet dla najbardziej wymagających pod względem mocy urządzeń USB-C.
Nie tylko przedni port USB-C ma moc 36W, ale także dwa dodatkowe porty Thunderbolt 5. Poprzednie generacje portów Thunderbolt miały moc 15W, a w TS5 Plus moc ta została ponad dwukrotnie zwiększona, aby zapewnić jeszcze więcej energii Twoim urządzeniom.
36W to więcej niż wystarczająca moc nawet dla iPada Pro, który ładuje się z mocą 20W.
20W USB-C Port
One of the the front-facing USB-C ports features 20W in order to provide more power for accessories.
This is ideal for devices that require more than 7.5W of USB power such as an iPhone, Apple Watch, and iPad Pro.
Single, Dual, or Three Displays
Whether you need a high-resolution display, a high-refresh rate display, or up to 3 external displays, the TS5 has you covered.
* Dual 5K monitors must be Thunderbolt 4 or Apple Studio Displays. Dual LG UltraFine 5K monitors are not supported. 6K monitors can be a Thunderbolt 4 monitor or an Apple Pro Display XDR. DSC (Display Stream Compression) support is required for 6K and 8K resolutions.
** Higher refresh-rates (above 60Hz) may require DSC (Display Stream Compression) support on the monitors and host GPU. The bit/color depth may vary in order to support higher refresh-rates.
*** Some M3 MacBooks such as the MacBook Air can support dual external monitors up to 5K and 6K when the laptop lid is closed (clamshell mode).
**** Currently M1/2/3/4 Macs can only support up to HDMI 2.0b over their Thunderbolt ports. As such, resolutions will be limited to 4K 60Hz when using an HDMI adapter. If a higher refresh-rate is required, please use a USB-C to USB-C or USB-C to DisplayPort connection. For more information about a Mac’s external display support please visit https://support.apple.com/en-us/101571 and https://www.caldigit.com/macbook-multiple-monitor-support-with-caldigit-thunderbolt-docks/
***** Results may vary due to OS updates. For external display compatibility over a single Thunderbolt connection on different Windows computers, please refer to the manufacturer’s website.
Bandwidth Boost
When you connect bandwidth intensive monitors to the TS5 it will enable Bandwidth Boost in order to prioritize displays, and provide up to 120Gb/s performance. This will then keep 40Gb/s for the rest of the dock.
The great thing about this is that it will allow for higher refresh rate displays to be connected to the TS5, as well as three 4K 144Hz displays.
2.5 Gigabit Ethernet
The TS5 features a 2.5 Gigabit Ethernet port for outstanding performance.*
2.5GbE is 2.5x faster than traditional Gigabit Ethernet, and is becoming the new standard for routers, switches, and NAS devices.*
Of course you can use the 2.5GbE port on the TS5 with traditional 1GbE Ethernet devices.
*Ethernet is only supported on Thunderbolt based hosts as well as USB4 hosts that support PCIe. Please contact your USB4 host manufacturers for PCIe support information.
Tablets & Phones
Connect the TS5 to your Thunderbolt iPad, or Windows Thunderbolt tablet, and take your workflow to the next level.
The TS5 is also compatible with USB-C Tablets and iPhones.
*Full tablet functionality will be dependent on your tablet’s capabilities. Overall functionality will be reduced when using a tablet or phone as a host device.
SD & microSD 4.0 UHS-II

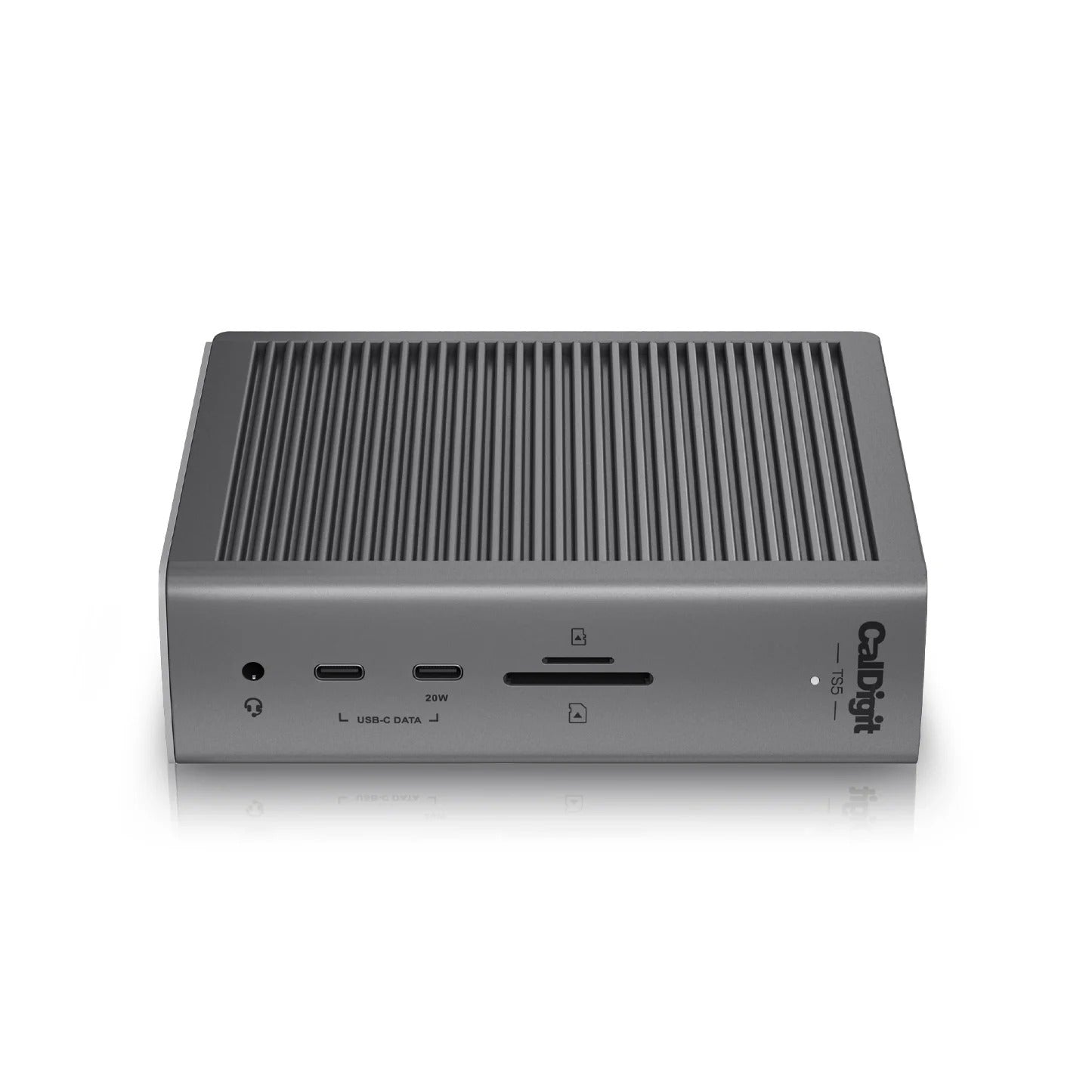

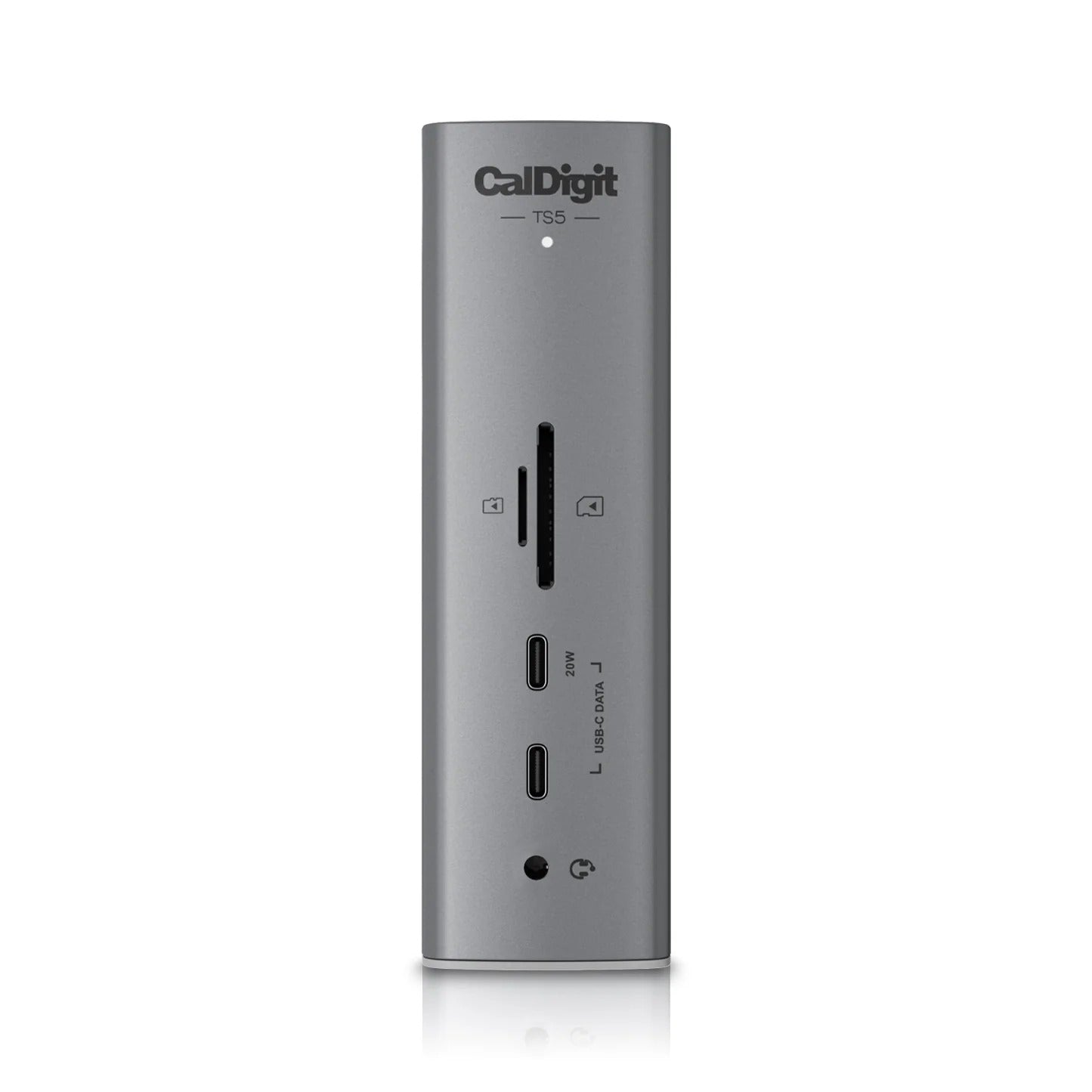

The TS5 features both microSD and SD card readers on the front of the device for easy access. Both ports offer UHS-II performance and can be used at the same time.
Tylny port hosta
Większość standardowych stacji dokujących Thunderbolt ma przedni port hosta Thunderbolt, co często prowadzi do bałaganu na biurku.
Unikalny, umieszczony z tyłu, port hosta Thunderbolt 5 w TS5 Plus zapewnia bardziej eleganckie rozwiązanie, które pozwala utrzymać porządek na biurku.
Apple SuperDrive
Devices such as the Apple SuperDrive are recommended by Apple to be directly connected to a laptop as they require extra power. CalDigit has developed a driver for the SuperDrive so that it can be directly connected to the TS5.
*Requires a one-time driver install.

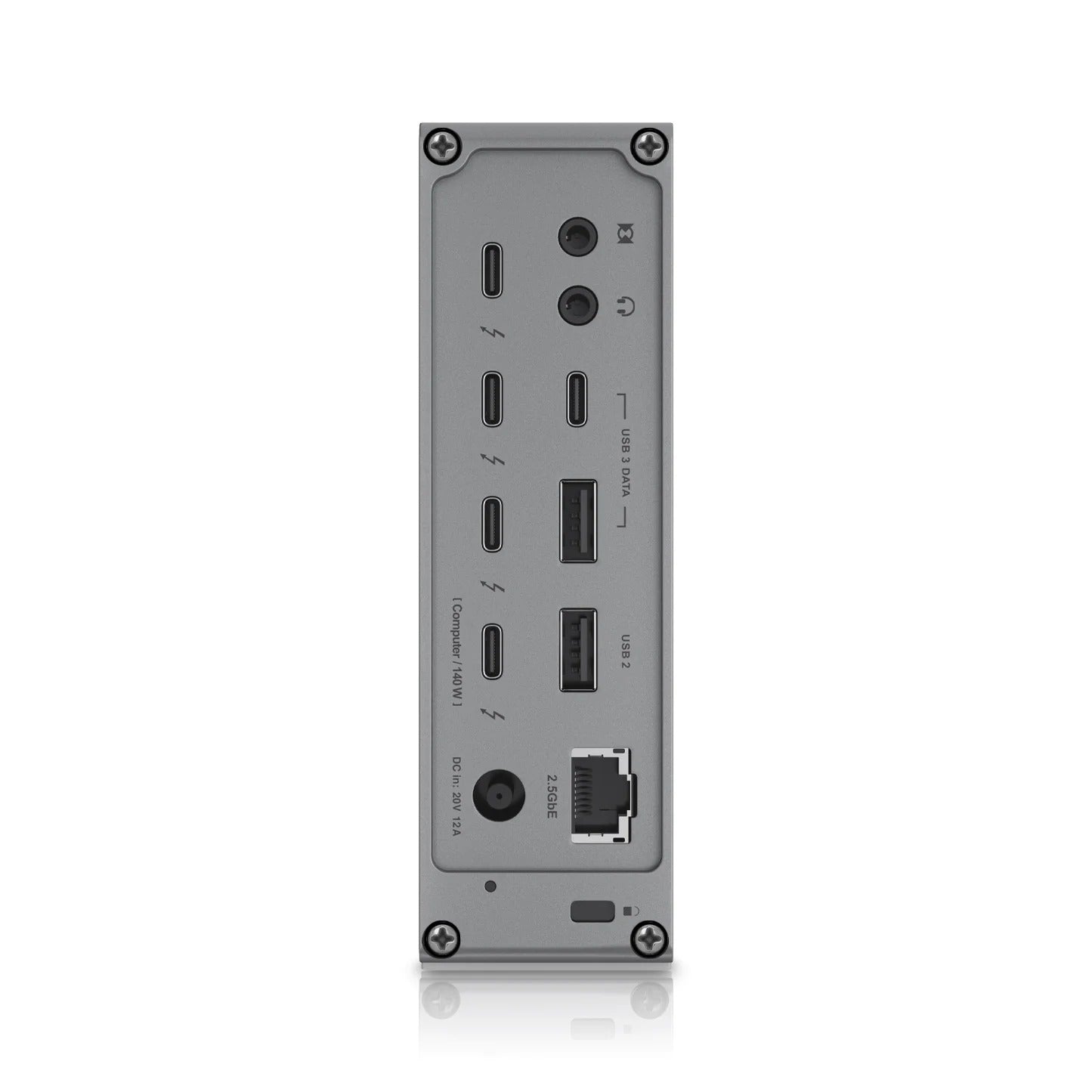

Rear Host Port
Most generic Thunderbolt docks feature a front host Thunderbolt port which results in messy cable management.
The The TS5′ unique rear Thunderbolt 5 host port features a more elegant solution for a clean desktop experience.
Specification
| Interface | 1 x Thunderbolt 5 Host (Up to 120Gb/s) 3 x Thunderbolt 5 (80Gb/s) 3 x USB-C (10Gb/s) 1 x USB-A (10Gb/s) 1 x USB-A (480MB/s) 1 x SD 4.0 (UHS-II) 1 x microSD 4.0 (UHS-II) 1 x 2.5 Gigabit Ethernet 1 x Front Combo Audio In/Out (3.5mm) 1 x Rear Audio Out (3.5mm) 1 x Rear Audio In (3.5mm) 1 x DC In (20V 12A) |
|---|---|
| Minimum System Requirements | macOS 15 or above Windows 11 or above iPadOS Chrome OS Thunderbolt 5 Computer Thunderbolt 4 Computer Thunderbolt 3 Mac USB-C (USB4 or USB4 v2) Computer USB-C Mac, PC, Tablet, Phone Thunderbolt/USB4 iPad |
| Power Delivery | Thunderbolt 5/USB4 Host Port: Up to 140W Each Downstream Thunderbolt 5/USB4 Port: 15W Front 20W USB-C Port: 20W Remaining USB-C Ports: 7.5W USB-A Ports: 7.5W |
| Size & Weight | Height: 5.55” (141.0mm) Width: 1.65” (42.0mm) Length: 4.46” (113.4mm) Weight: 1.41lbs (0.64kg) |
| Warranty | 2 Years |
Package content
| In the Box | 1 x CalDigit TS5 |
|---|---|
| 1 x Thunderbolt 5 Braided Cable (1.0m) | |
| 2 x Rubber Feet Strips | |
| 1 x Power Cord | |
| 1 x Power Supply (240W) |
