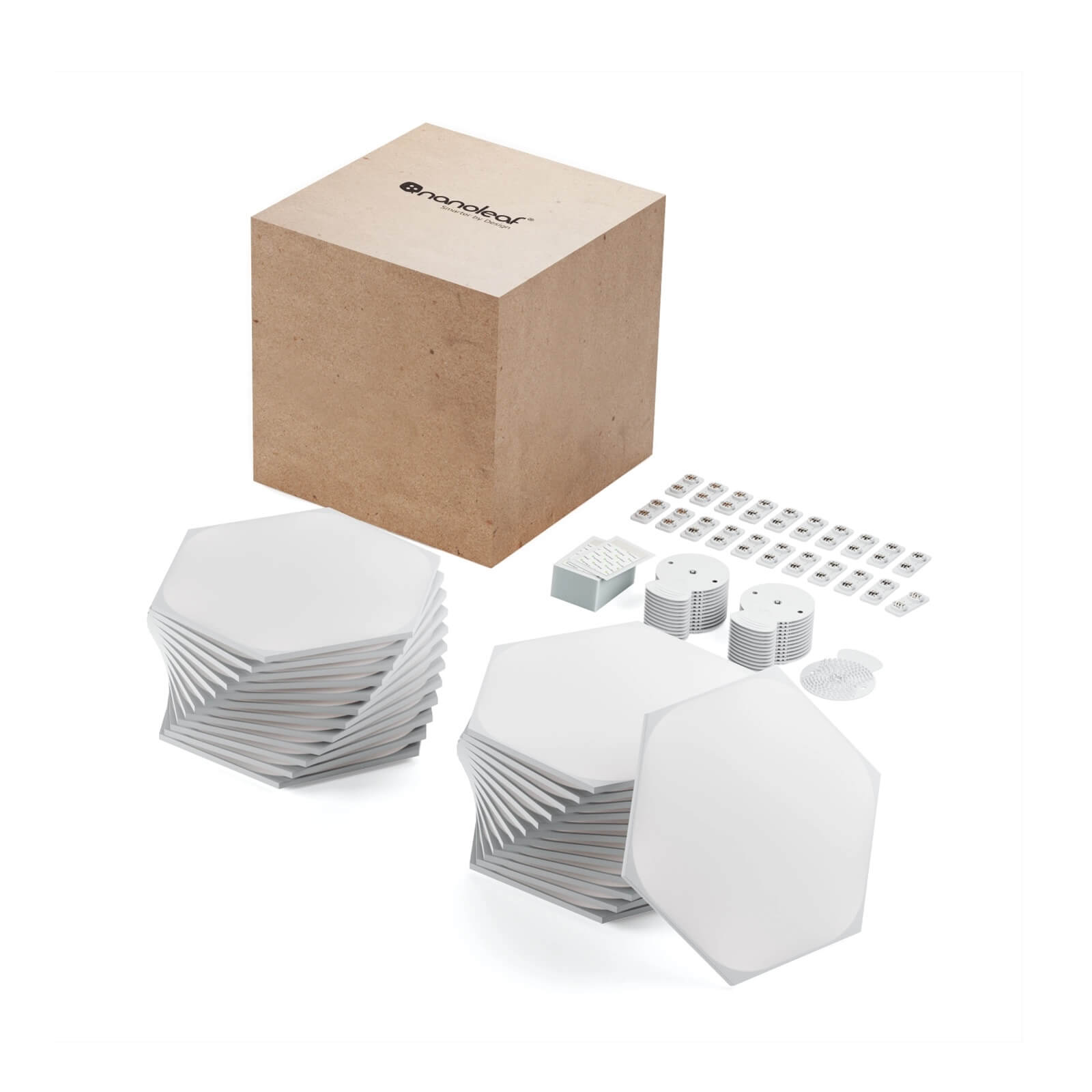

Nanoleaf - Shapes Hexagon Expansion Pack
Connect+ Technology
Create your own completely unique layouts with modular panels, with Connect+ technology for endless design combinations.
Music Visualiser
Transform your favourite songs into a music festival light show in your own home. Try the Pop Rocks Rhythm Scene and watch your lights dance to the beat.
Layout Assistant
Explore different panel layouts with the Layout Assistant, and preview them in your room using the AR feature. Learn More.
Screen Mirror
The colours from your screen are reflected on your panels for an immersive experience. Available through the Nanoleaf Desktop App.
Perfect for Any Room
Battlestation
This colour changing smart lighting is what your setup has been missing. Add Shapes panels to the wall behind or next to your gaming setup for an immersive experience using the Screen Mirror feature, or your own custom RGB Scenes.
Living Room
Add more to your entertainment experience. Instal Shapes around the TV for multicoloured lighting that provides a cinematic ambience to enhance your movie night, game night, date night—any night.
Entertainment / TV
out your battlestation, entertainment area, TV room, bedroom and more with these ultra thin modular light panels to create the ultimate RGB vibe.
Bedroom
With endless design possibilities, you can let your imagination run wild. Upgrade any space with your own unique layouts, and add custom RGB colour palettes to make any room feel brand new.
Specification
| Height per panel | 7.75 inches / 20 cm |
|---|---|
| Width per panel | 9 inches / 23 cm Panel |
| Panel thickness | 0.39 inches / 10 mm |
| Thickness | 0.24 inches / 0.6 cm |
| Weight per panel | 0.46 lb / 208 g |
| Cable length | 8.2 ft / 2.5 m |
| Connect+ | Yes, Shapes panels are designed to work together. |
| Touch control | Yes. |
| Music synchronization | Yes. |
| Screen mirroring | Yes. |
| Luminous flux per panel | 80 lumens. |
| Lifespan | 25,000 hours. |
| Communication protocol | WiFi (2.4 GHz b/g/n) NOTE: 5 GHz networks are not compatible with Nanoleaf products. |
| Dimmable | Yes (via app, voice control, touch) |
| Mounting type | Using the included double-sided tape or screw mounts (screws and anchors not included) |
| Thread compatibility | Yes, Shapes function as Thread Border Routers |
| Color temperature | 1200K – 6500K |
| Color channel configuration | RGBW |
| Max. colors | Over 16 million |
| Color rendering index (CRI) | 80 |
| Voltage | 110VAC - 240VAC |
| Maximum power supply | 42W |
| Power consumption per panel | 1.5W |
| Maximum number of panels per 42 W power supply | 28 panels NOTE: If you are combining shapes, make sure you have sufficient power. Use our PSU calculator. |
| Maximum number of panels per controller | 500 Triangles |
| Compatibility | Apple HomeKit, Amazon Alexa, Asystent Google, IFTTT, kontroler fizyczny, Nanoleaf Remote, Razer Synapse, SmartThings, Homey |
| Nanoleaf app | Control via the Nanoleaf app (Android and iOS) on your phone/tablet or the Nanoleaf Desktop app (Windows and Mac). |
| Warranty | 2 Years |
