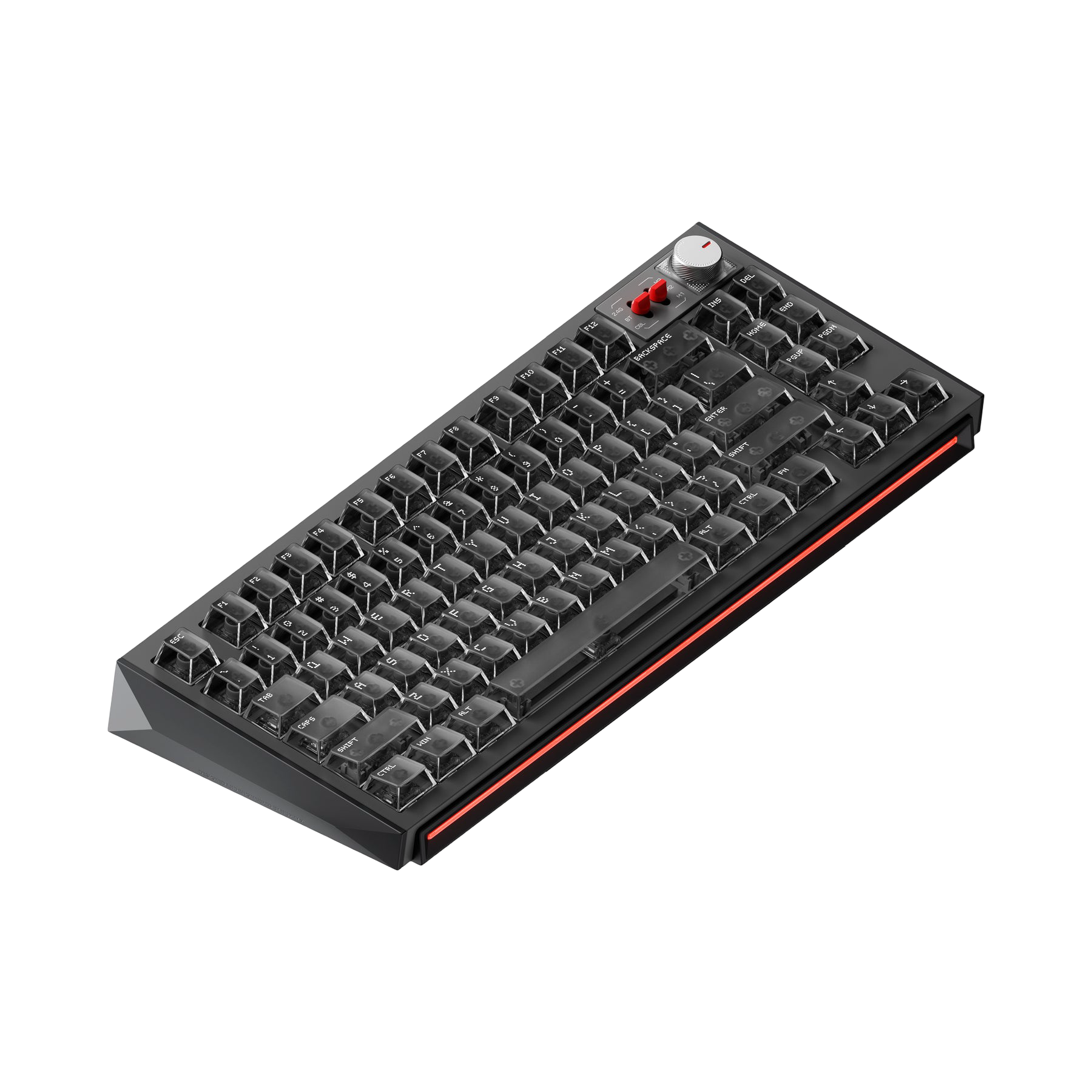

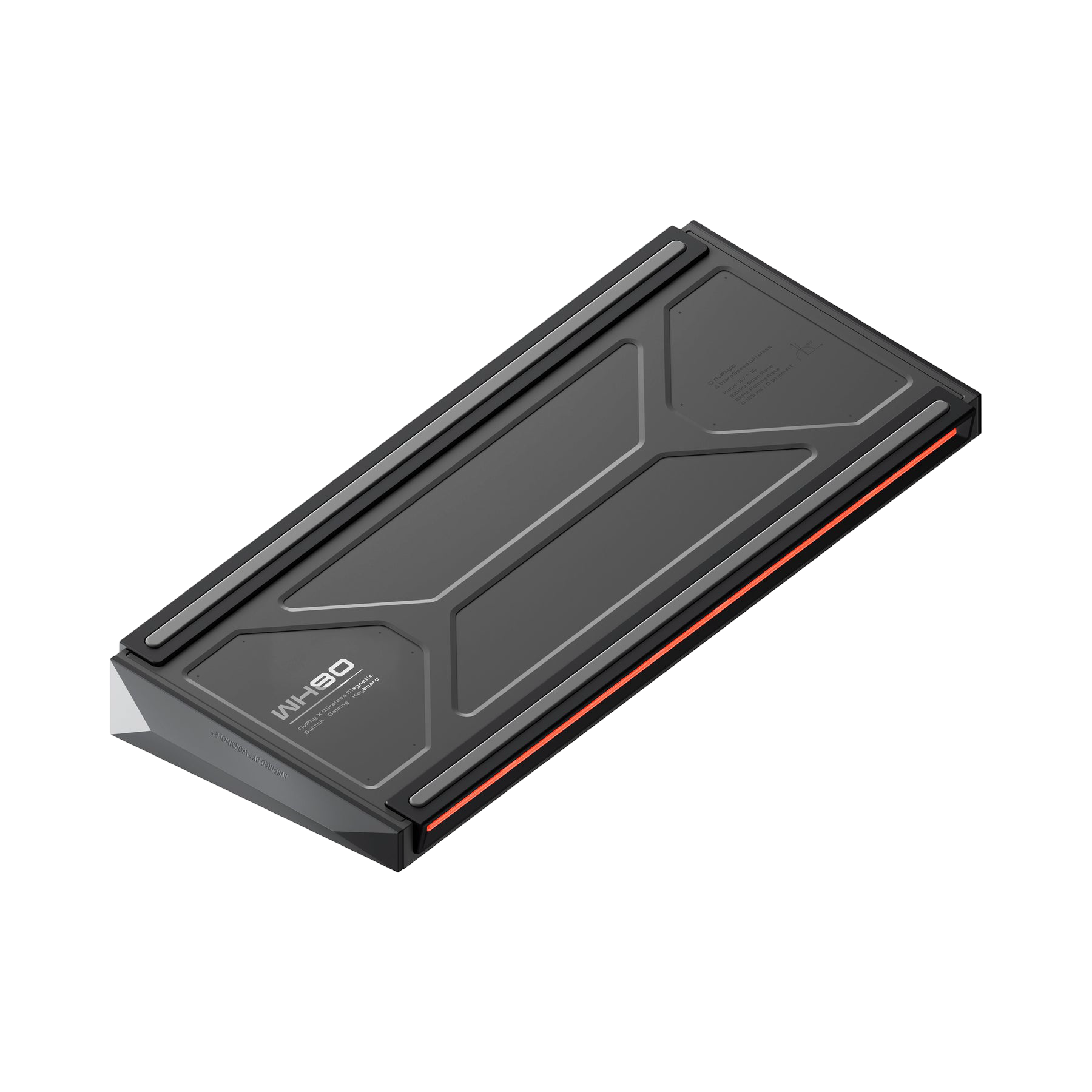

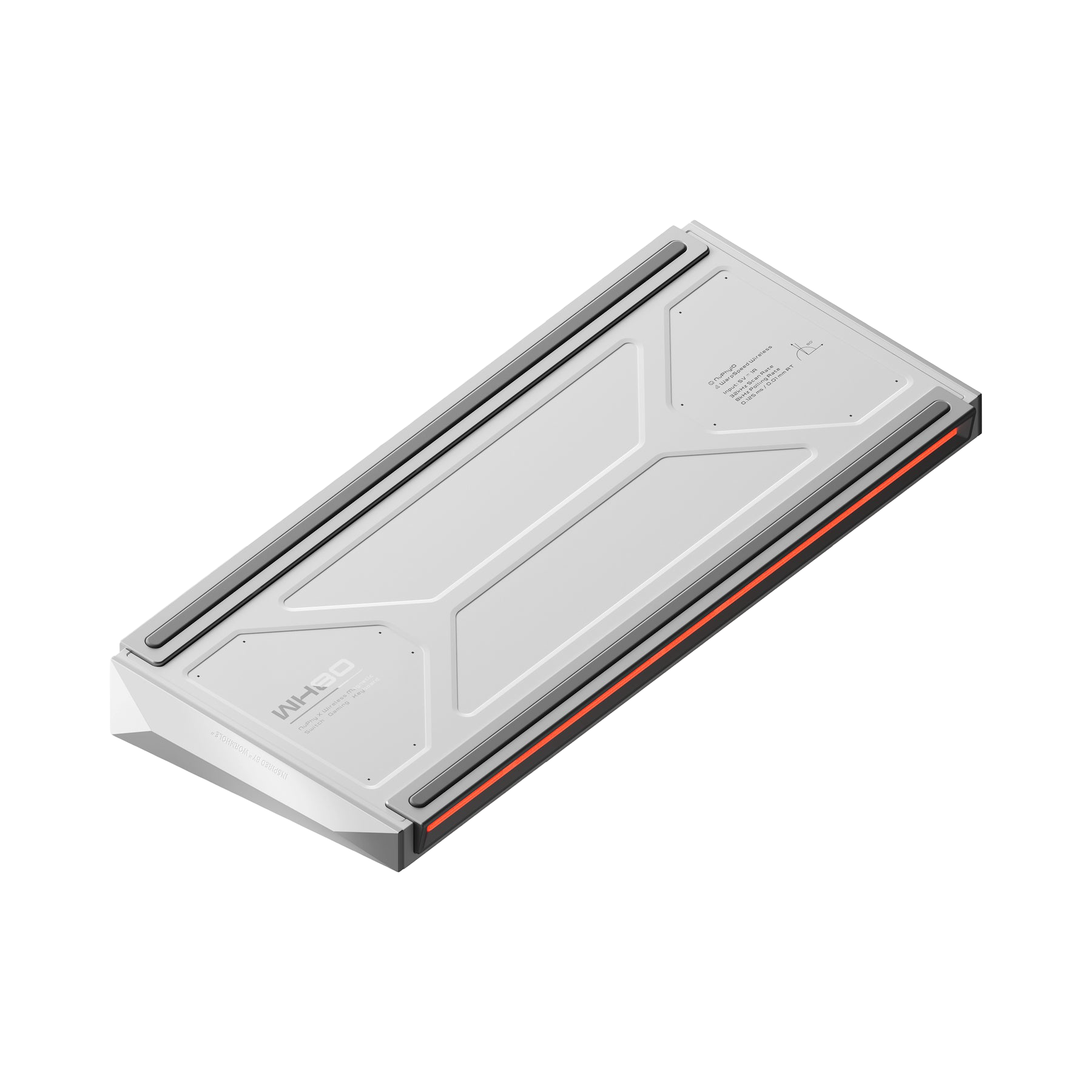

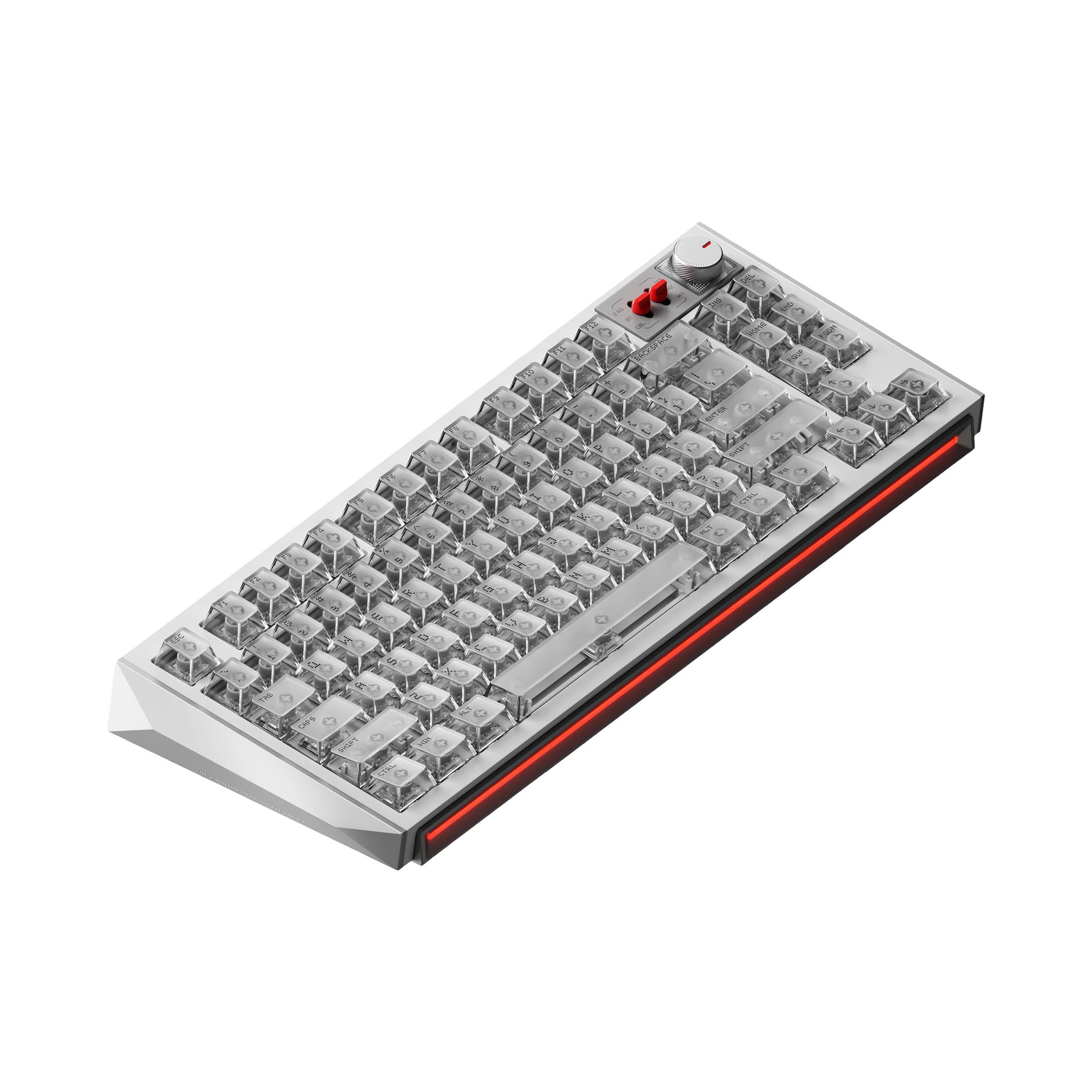

NuPhy - WH80 Wireless Magnetic Gaming Keyboard
WH80
YOUR GAMING KEYBOARD TO WIN








ADVANCED HE FEATURES
SOUND AND FEEL
Gasket + a full stack of sound mods for a top of the line sound and type experience on a HE keyboard.

CO-DEVELOPED BY GATERON & NUPHY
A major evolution of the Jade Pro, the Jade Dragon-N introduces an innovative two-piece POM stem that boosts control and reduces accidental activations. By enclosing the magnet within the split stem, it delivers smoother travel, more reliable bottom-out performance, and a cleaner, more satisfying acoustic profile. It’s the best magnetic switch we’ve ever made.










Specification
| Layout | ANSI 80% |
|---|---|
| Number of Keys | 83 |
| Switch Type | High-Profile Magnetic Switches |
| Stabilizer Type | Plate Mounted |
| Mount Type | Gasket Mount |
| Power-off Replaceable Switches Supoort | Yes |
| Backlight | Top-emitting LED |
| Backlight Modes | 20 |
| Compatible System | macOS/Windows/Android/iOS |
| Operating Environment | -10 to 50℃ |
| Mode | 24GHz, Wired (USB-C) or Bluetooth 5.0 |
| 2.4GHz Polling Rate | 8000Hz |
| Wired Polling Rate | 8000Hz |
| Bluetooth 5.0 Polling Rate | 125Hz |
| Keycaps | PBT |
| Keyboard | ABS |
| Long | 357mm (14.05 inches) |
| Wide | 144.7 mm (5.69 inches) |
| Back Height | 35.4 mm (1.39 inches) |
| Front Height | 21.7 mm (0.85 inches) |
| Weight | 1516 grams (3.34 pound) |
| Type Angle | 7º |
| Warranty | 1 Year |
Package content
| PRE-BUILT KEYBOARD | 1 x WH80 Keyboard |
|---|---|
| 1 x 2.4G Dongle | |
| 1 x USB-C to USB-C Cable | |
| 1 x USB-C to USB-A adapter | |
| 1 x Keycap/Switch Puller | |
| 6 x Extra Keycaps | |
| 2 x Extra Toggle | |
| 1 x Quick Start Guide | |
| (with FAQ & Instructions) | |
| 1 x Keyboard Pack |
