NuPhy - Node 75 Wireless Mechanical Keyboard
Timeless design.
Exceptional feel.
For everyone
Back to the future
A harken back to the mid-century clean lines and controls, and a touch of the digital age on all that dot-matrix and concentric elements, Node 75 is a work that bridges futurisms between ages.
The design is not a simple homage however, utilizing light materials, it aims to create a device that is playable, touchable, portable, and good for everyday use, in ways that you define.

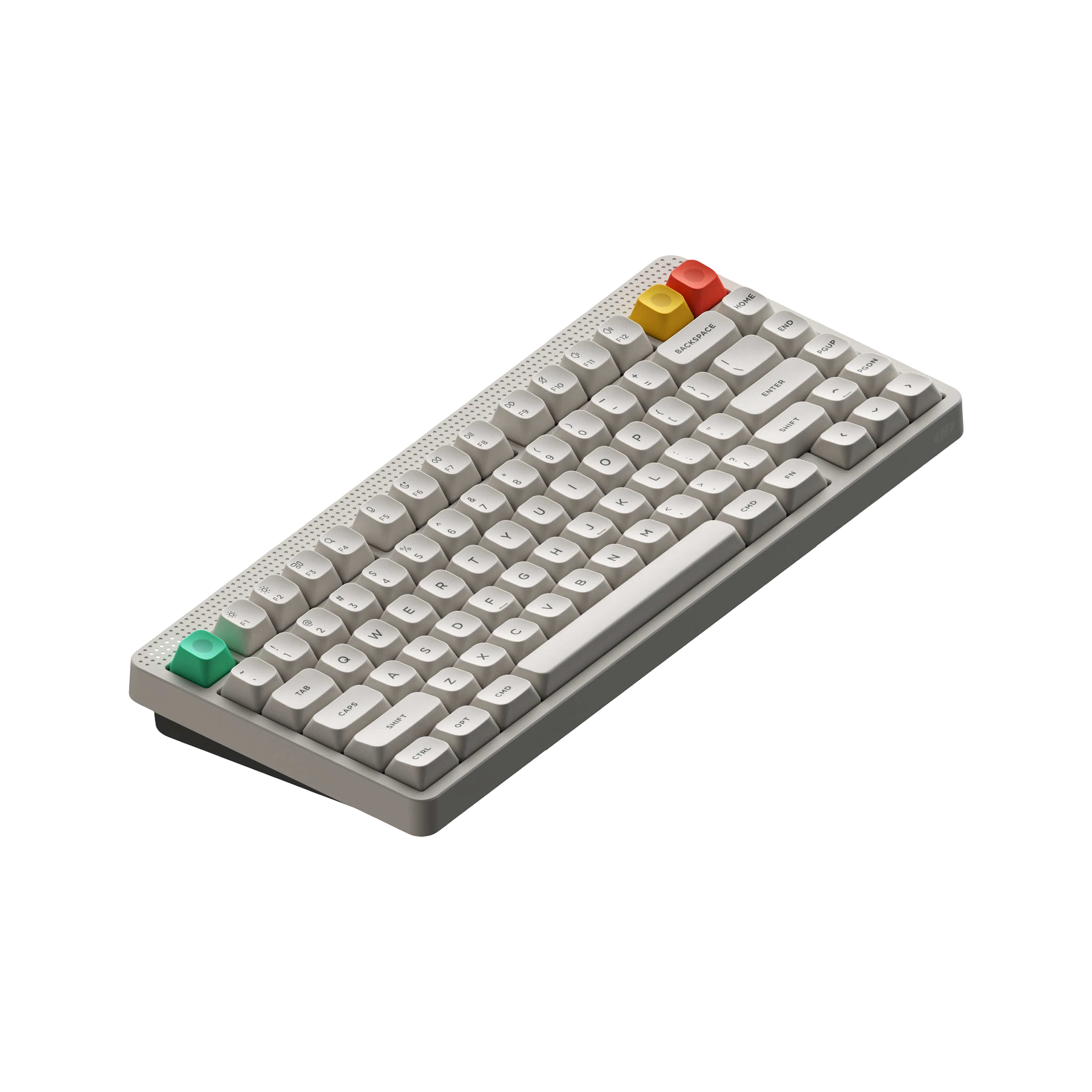

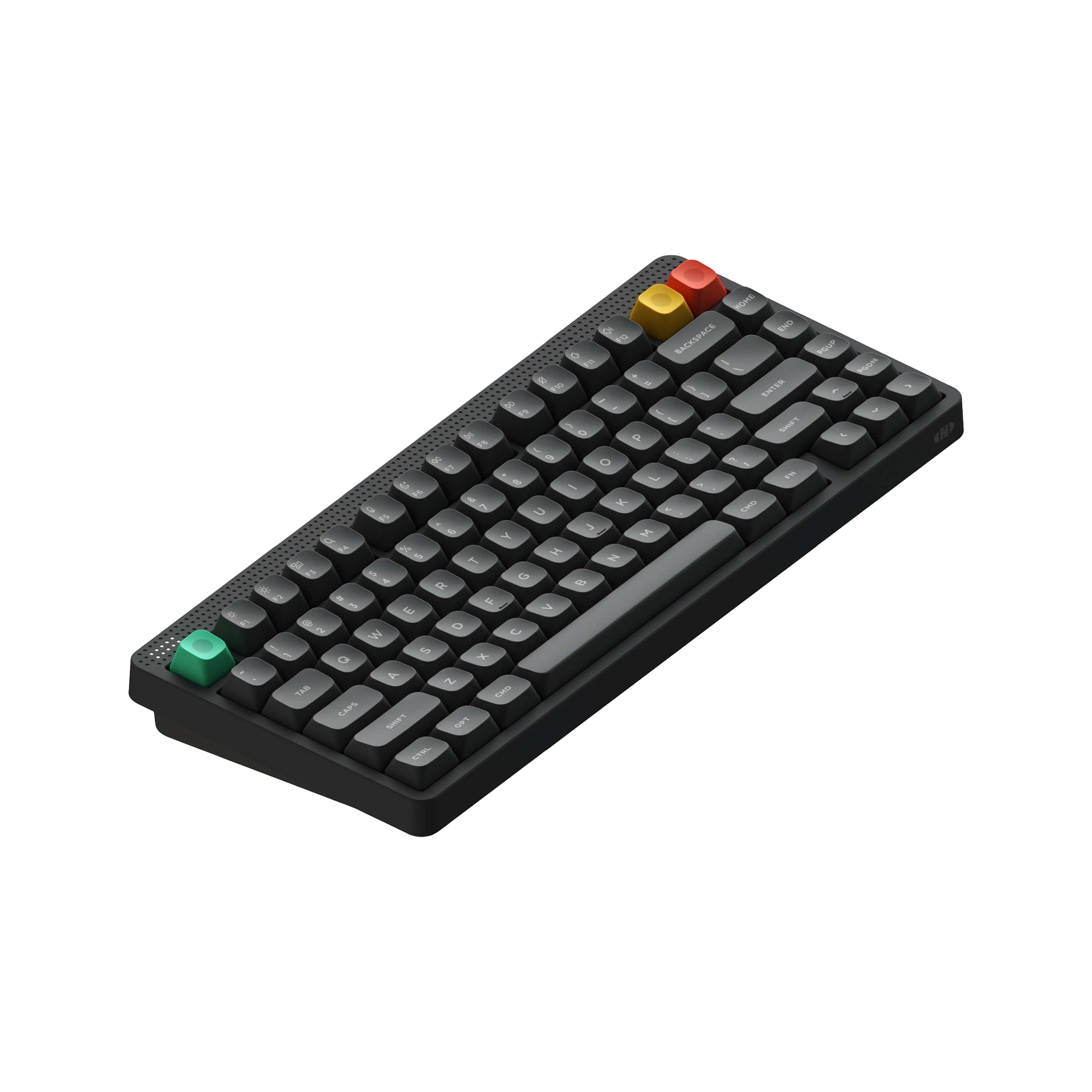

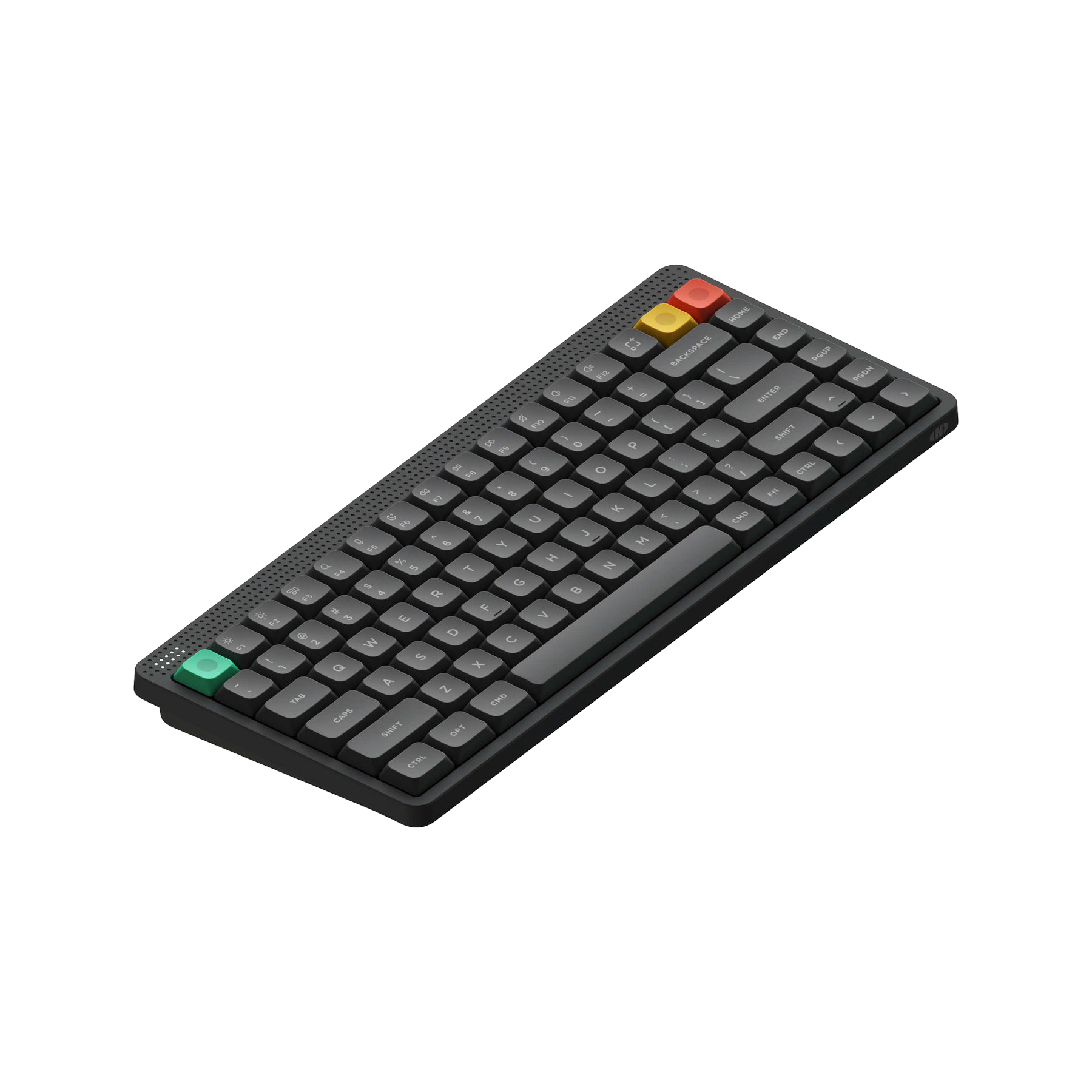

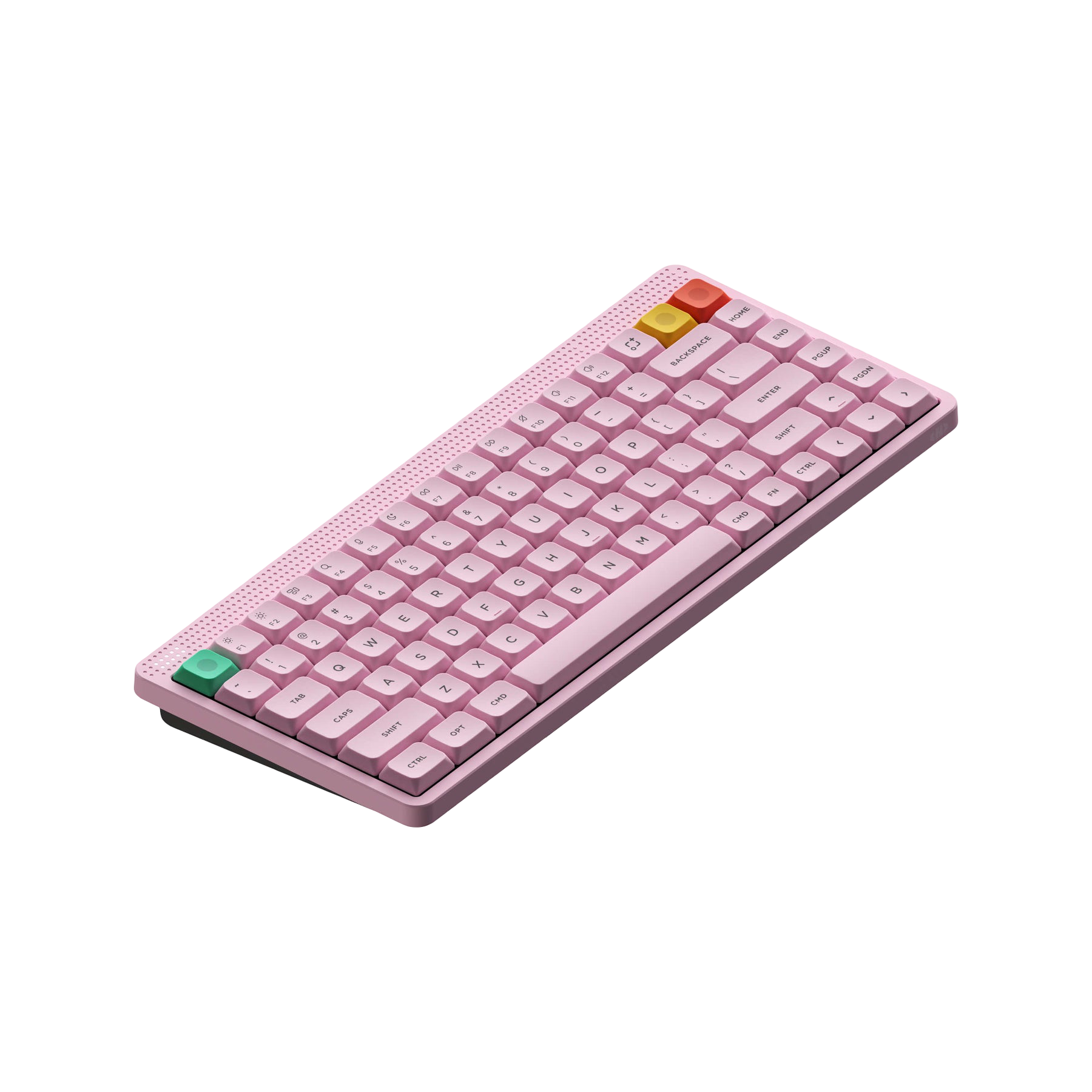

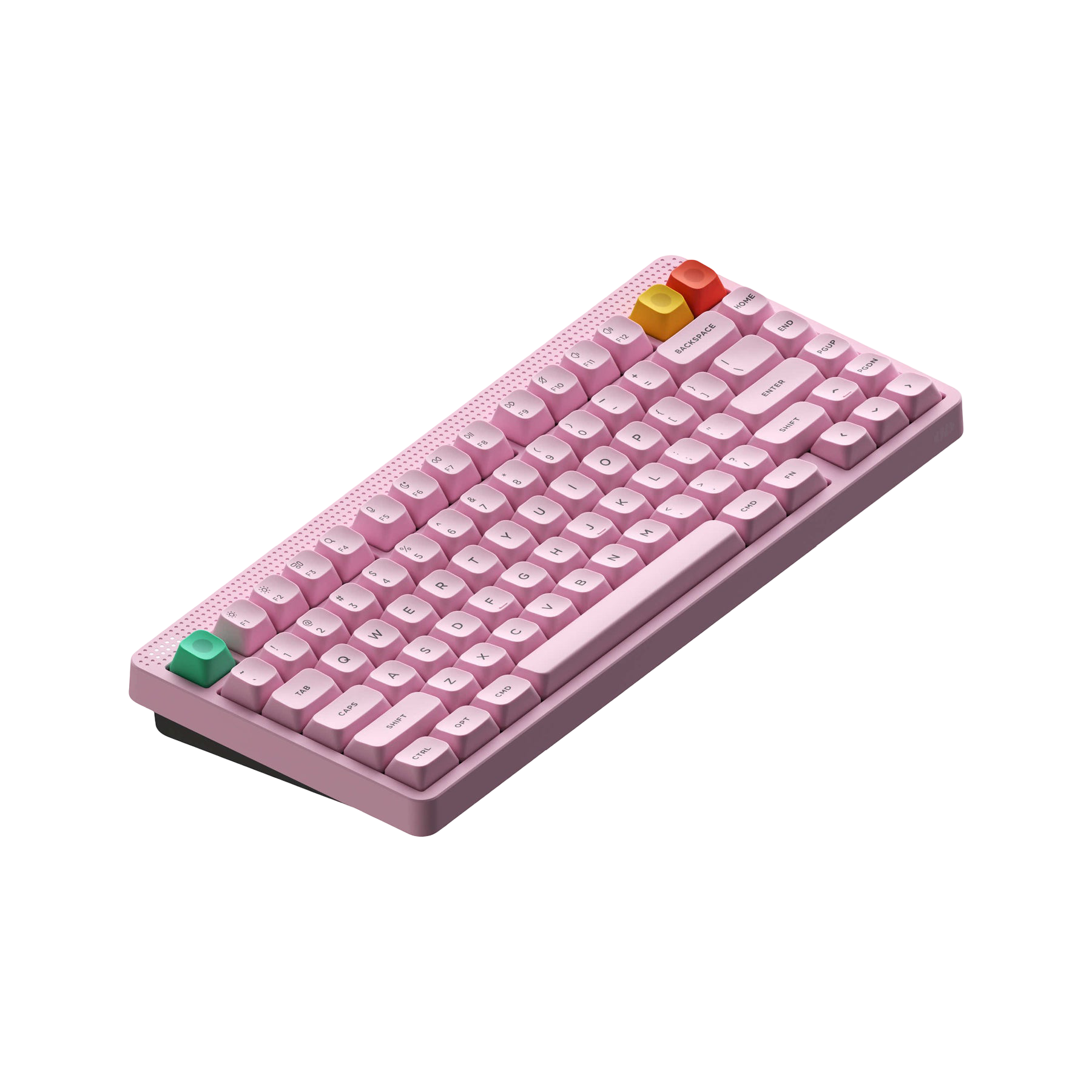

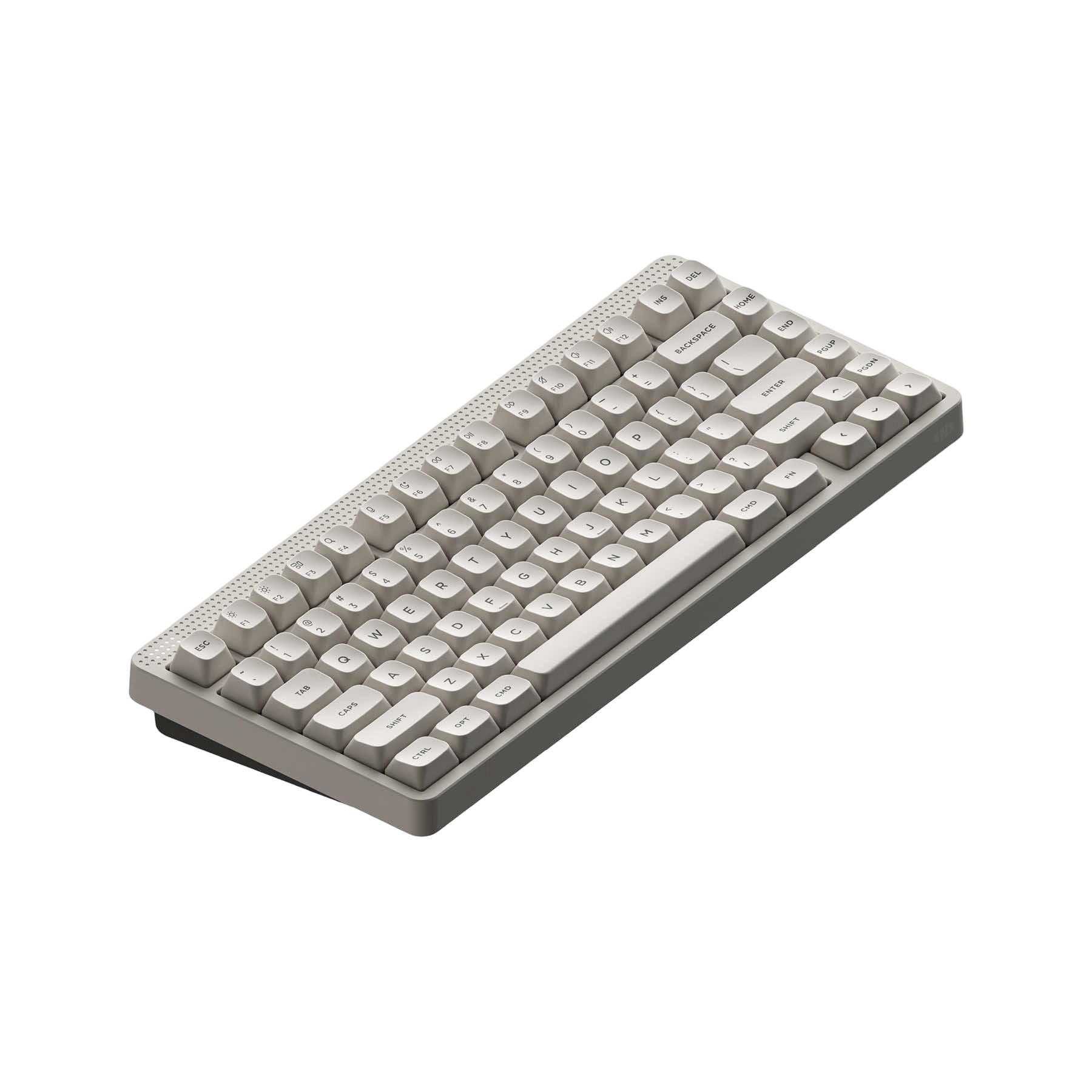

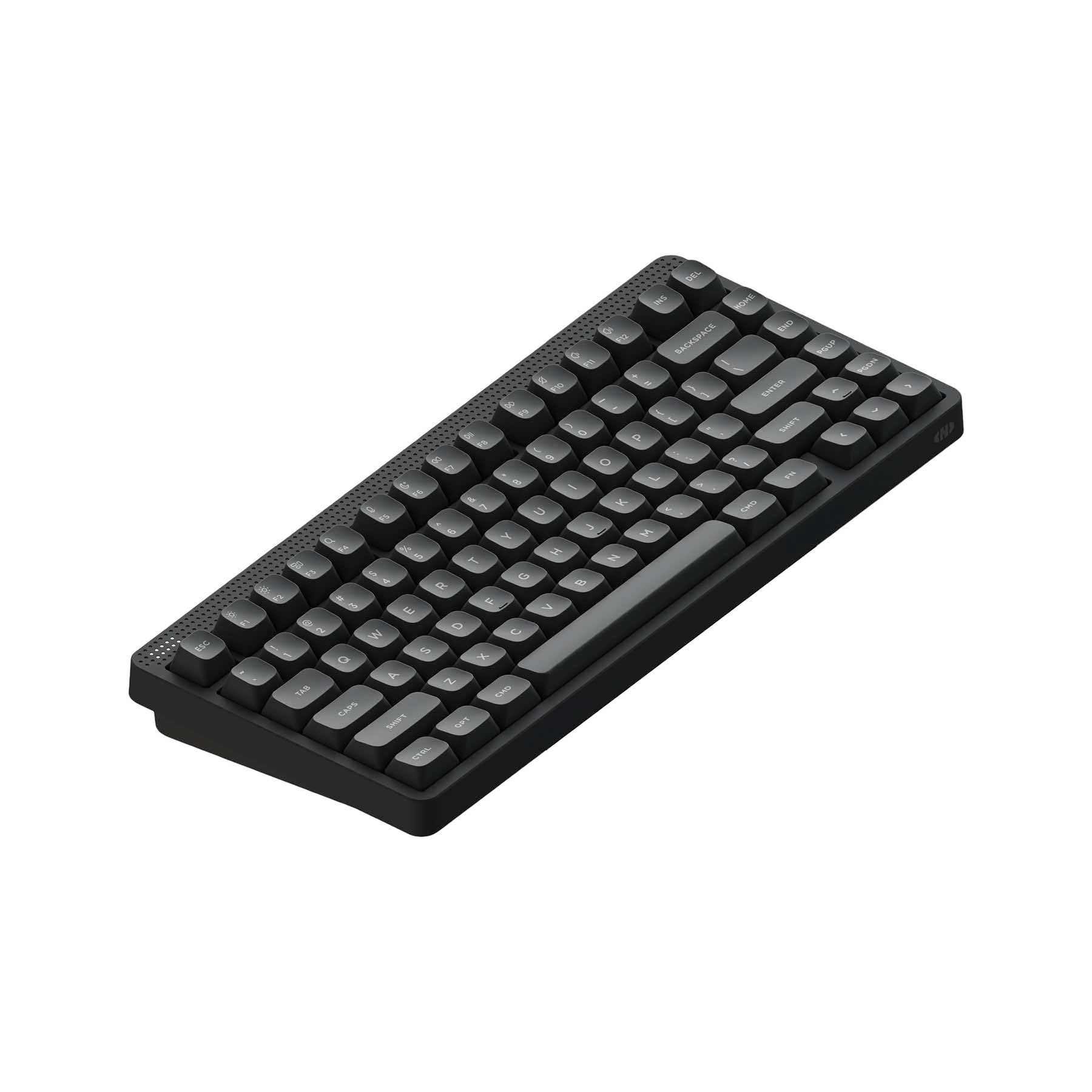

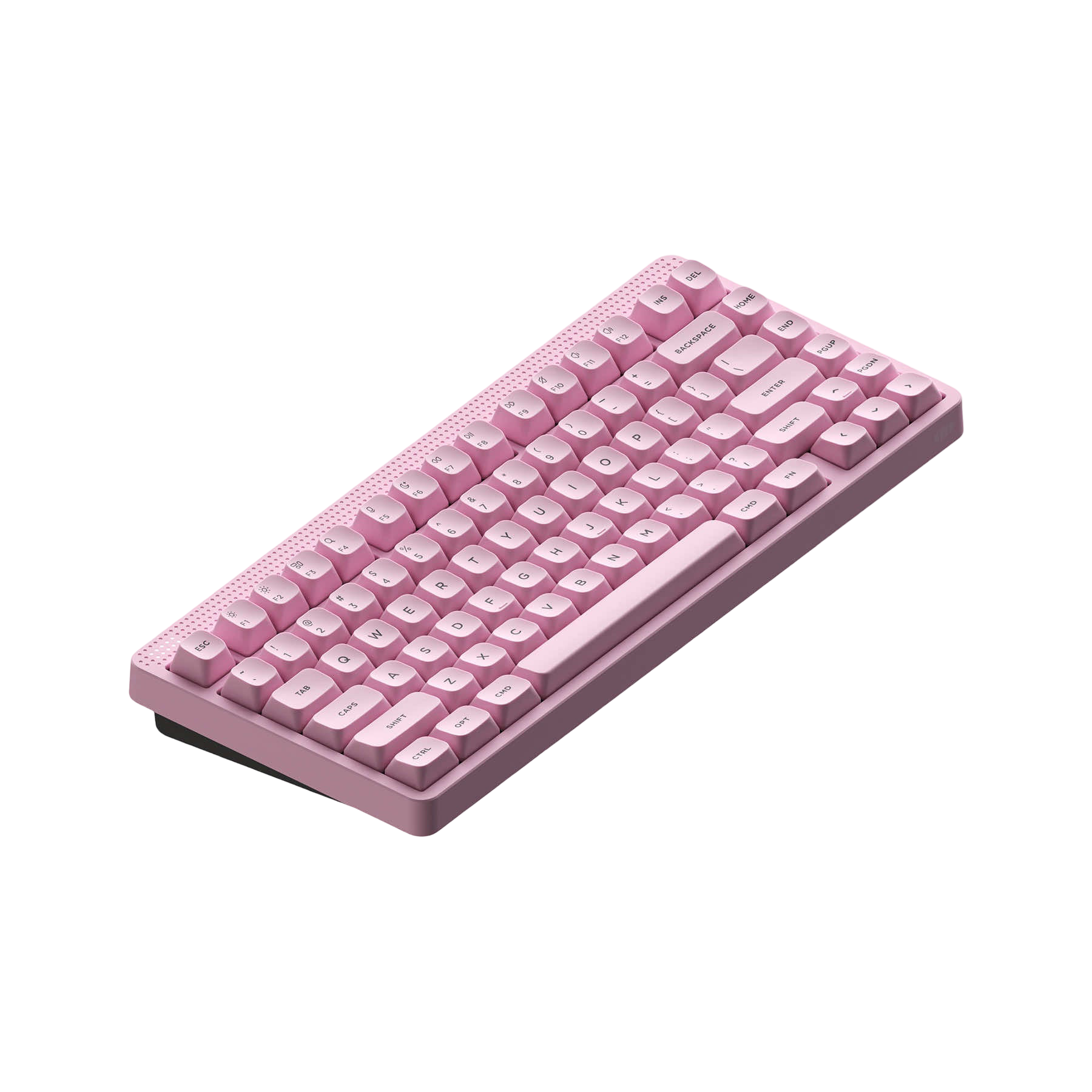

Three Minimal Colorways
To touch, to feel
By making interactions with the keyboard more natural and diverse, Node 75's touch zone unlocks the potential of your fingers. Slide, tap, or double tap to execute various functions, and use the dot-matrixed LEDs to accurately read the effect of your input.
The switch-craft
Built for unmatched typing precision, sound, and comfort, and with a hellalot of POM and LY materials, our nano/Max switch duo wreaking havoc across the switch landscape has joined force with Node 75 to bring more joys to your mechnical keyboard adventure.
Red nano
Brown nano
Blush nano
Red Max
Brown Max
Blush Max
It's a new world of possibilities, and it is NuPhy
Every Mac-tweak you can find on a NuPhy keyboard, you can find it on Node 75, as well as the same outstanding essential wireless capabilities that came to define NuPhy low profile keyboards.
3D printing support for multi-dimensional explorations
Specification
| Node75 High-Profile Keyboard | SPECIFICATION Layout: ANSI 75% Number of Keys: 82 Switch Type: High-profile Stabilizer Type: Plate Mounted Mount Type: Gasket Hot-swappable Support: Yes N-key Rollover Support: Yes Backlight: North-facing RGB LED Backlight Modes: 20 Compatible Systems: macOS / Windows / Android / iOS Operating Environment: -10°C to 50°C CONNECTION Connection Modes: 2.4GHz / Wired (USB-C) / Bluetooth 5.0 2.4GHz Polling Rate: 1000Hz Wired Polling Rate: 1000Hz Bluetooth Polling Rate: 125Hz MATERIALS Top Case: ABS Bottom Case: ABS Plate Material: PC Keycaps: Double-shot mSA PBT SIZE AND WEIGHT Dimensions: 318.1 × 141.5 × 18.9 mm Dimensions (inches): 12.5 × 4.5 × 0.72 in Weight: 827 g (1.82 lb) Typing Angle: 6° / 9° / 12° POWER AND BATTERY Battery Capacity: 4000 mAh Battery Life (RGB On): 60–100 hours (lab tested) Battery Life (RGB Off): Up to 1000 hours (lab tested) |
|---|---|
| Node75 Low-Profile Keyboard | SPECIFICATION Layout: ANSI 75% Number of Keys: 84 Switch Type: Low-profile Stabilizer Type: Plate-mounted Mount Type: Gasket Hot-swappable Support: Yes N-key Rollover Support: Yes Backlight: North-facing RGB LED Backlight Modes: 20 Compatible Systems: macOS / Windows / Android / iOS Operating Environment: -10°C to 50°C CONNECTION Connection Modes: 2.4GHz Wireless / Wired (USB-C) / Bluetooth 5.0 2.4GHz Polling Rate: 1000Hz Wired Polling Rate: 1000Hz Bluetooth Polling Rate: 125Hz MATERIALS Top Case Material: ABS Bottom Case Material: ABS Plate Material: PC Keycaps: Double-shot nSA SIZE AND WEIGHT Dimensions: 317.1 × 137.1 × 14 mm Dimensions (inches): 12.48 × 5.39 × 0.5 in Weight: 659 g (1.45 lb) Typing Angle: 4° / 8° / 11° POWER AND BATTERY Battery Capacity: 3000mAh Battery Life (RGB on): 60–100 hours (lab tested) Battery Life (RGB off): Up to 1000 hours (lab tested) |
| Warranty | 1 Year |
Package content
| Node75 High-Profile Keyboard | 1 x 2.4G Receiver 1 x USB-C to USB-C Cable 1 x USB-C to USB-A adapter 1 x Keycap/Switch Puller 3 x Extra Keycaps 3 x Dotted Keycaps 1 x Quick Start Guide |
|---|---|
| Node75 Low-Profile Keyboard | 1 x 2.4G Receiver 1 x USB-C to USB-C Cable 1 x USB-C to USB-A adapter 1 x Keycap/Switch Puller 3 x Extra Keycaps 3 x Dotted Keycaps 1 x Quick Start Guide |
