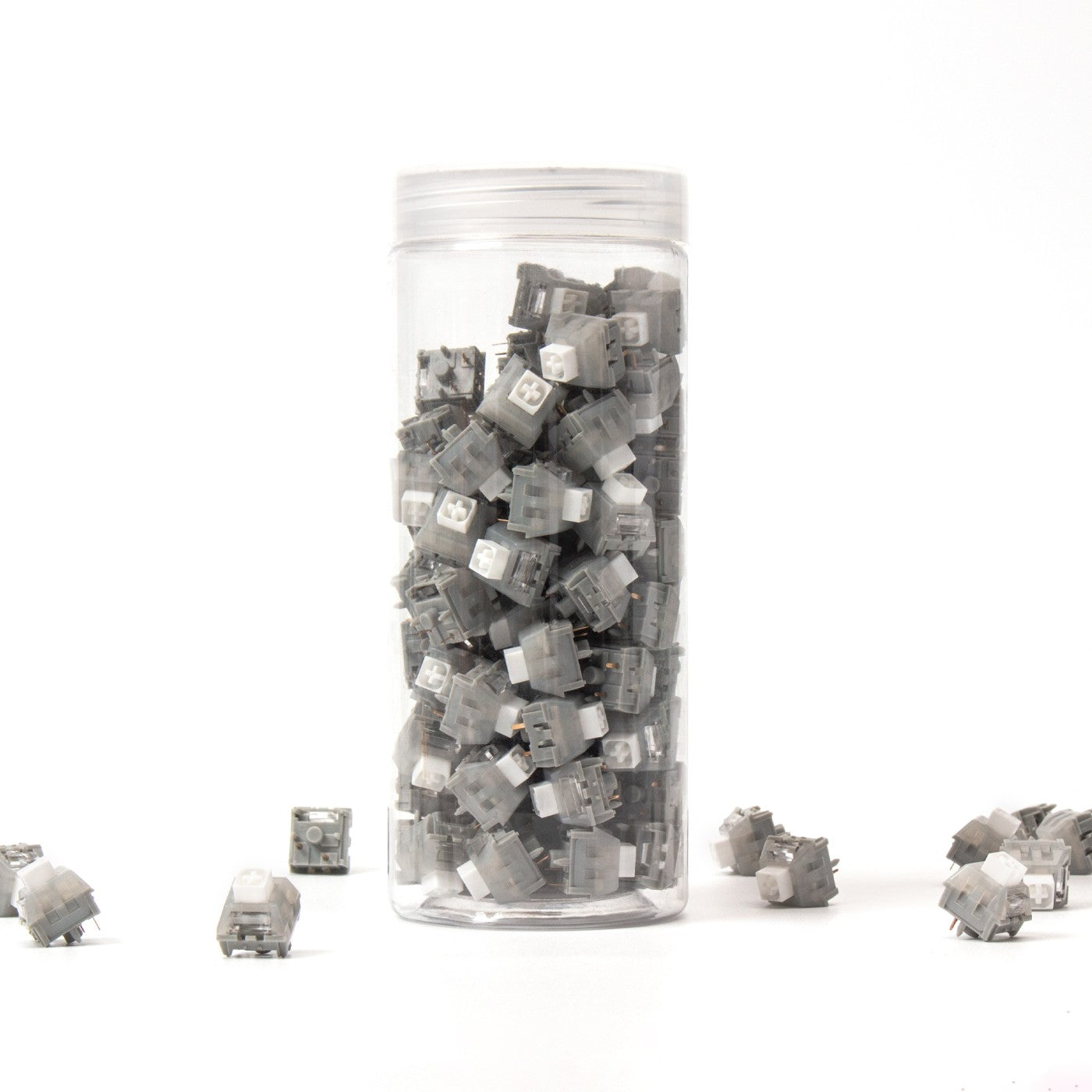

Kailh White Owl Box Switch
Military Level Gold Alloy Contact
The inside of the switch adopts a military-level gold alloy contact to offer better durability performance. It greatly helps to improve the oxidation resistance of the switch and guarantees the switch for up to 80 million keystrokes.
Short Spring. Stronger Rebound
The short spring design of this switch brings a stronger rebound than ordinary springs as well as it binds the 5-Pin structure to deliver a stable pressing experience.
90% Light Transmittance
It is crafted with a light guide post to achieve a luminous effect that can reach 90% light transmittance through the switch body.
Square Dust Wall Design
The square dust wall can prevent dust and water from corrosion and increase the switch’s lifespan and longevity.
Product Structure
White Owl Box
Type Clicky
Operation Force 46±20 gf
Pre-travel 1.8±0.4 mm
Return Force ≥15 gf
Total Travel 3.6±0.3 mm
Sound Level Loud
Lifespan Up to 80 million cycles
Suitable for Typing
Specification
| Product Name | White Owl Box Switch |
|---|---|
| Stem | POM |
| Top Housing | PC |
| Bottom Housing | POM |
| Contact | Composite gold |
| Spring | Spring steel |
| Protecting Cover | Nylon |
| Slider | POM |
| Light Guide Post | PC |
| Pins | 5-Pin |
| Factory Pre-lubed | No |
| SMD LED Support | Yes |
| Warranty | 1 Year |
Compatibility
| Compatible keyboards | Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards. |
|---|
