Akko - MOD 007 V3 HE Year of Dragon Wired Mechanical Keyboard

Calibration Reminder

The Hall sensors are highly susceptible to temperature fluctuations, which can lead to significant alterations in the magnetic field of the keyboard during transportation, as it is influenced by changes in temperature and the environment.

For an optimal typing experience, we suggest promptly updating the keyboard firmware as soon as you receive it. Additionally, you can manually calibrate the keyboard by gently pressing every key in the 'About - Maximum Key Travel Calibration - Start Calibration' section.'

Roar Mode

Maximize your typing efficiency with Roar Mode to ensure rapid key responses. Please be advised that the backlight will be deactivated in Roar Mode for optimal performance. Additionally, Roar Mode might impact the input simulator.

*Click above to set up to four keys for Roar mode activation.

Rapid Trigger (RT)

Rapid Trigger dynamically changes the keys’ actuation and deactivation points. Through the Akko Cloud Driver, users can choose “All Buttons” or “Per Button” to customize each key with ultra-precise 0.1 mm sensitivity and adjustable actuation points ranging from 0.1 to 4.0 mm, as well as activate “Non-stop Rapid Trigger” for near-instant key response. This gives FPS gamers a competitive edge in fast-paced gameplay.

For example, when gamers enable RT, they can achieve “Counter-Strafe“ in VALORANT games.

Dynamic Keystrokes (DKS)

A single keypress can achieve 4 actions: you can bind 1 to 4 actions according to 4 different distances. Click the key actions you would like to trigger when pressing and releasing a single keystroke.

Depending on your keypress force: a light press triggers action 1, a deeper press activates action 2, and releasing the key also supports a two-stage key setting.

Mod-Tap

Mod Tap is a design that provides convenience for gaming. It enables the creation of dedicated or dual-functional keys based on key press behavior.

A single keypress can achieve two functions: holding down the key for one function, and press the key for another.

Deadzone Setting

Deadzone represents an area that will not be triggered. With deadzone settings, you can customize the bottom deadzone according to your typing style and preferences, ensuring more precise releases.

On-board Memory

Settings are stored on the hardware, and there is no need to activate the software in the background.

Akko Cream Yellow Magnetic

Type: Linear
Operating Force: 50gf ± 10gf
Total Travel: 4.0mm
Pre-Travel: 2.0 ± 0.5mm

Ultra-accurate typing experiences adjustable in 0.1mm. Applying for the electromagnetic principle, operated by Hall effect sensing.

Please be aware that the Year of the Dragon keyboard does NOT support mechanical switches. If you aim to use mechanical switches with the Year of the Dragon keyboard, you can purchase this MOD 007 Flex-Cut PCBA.

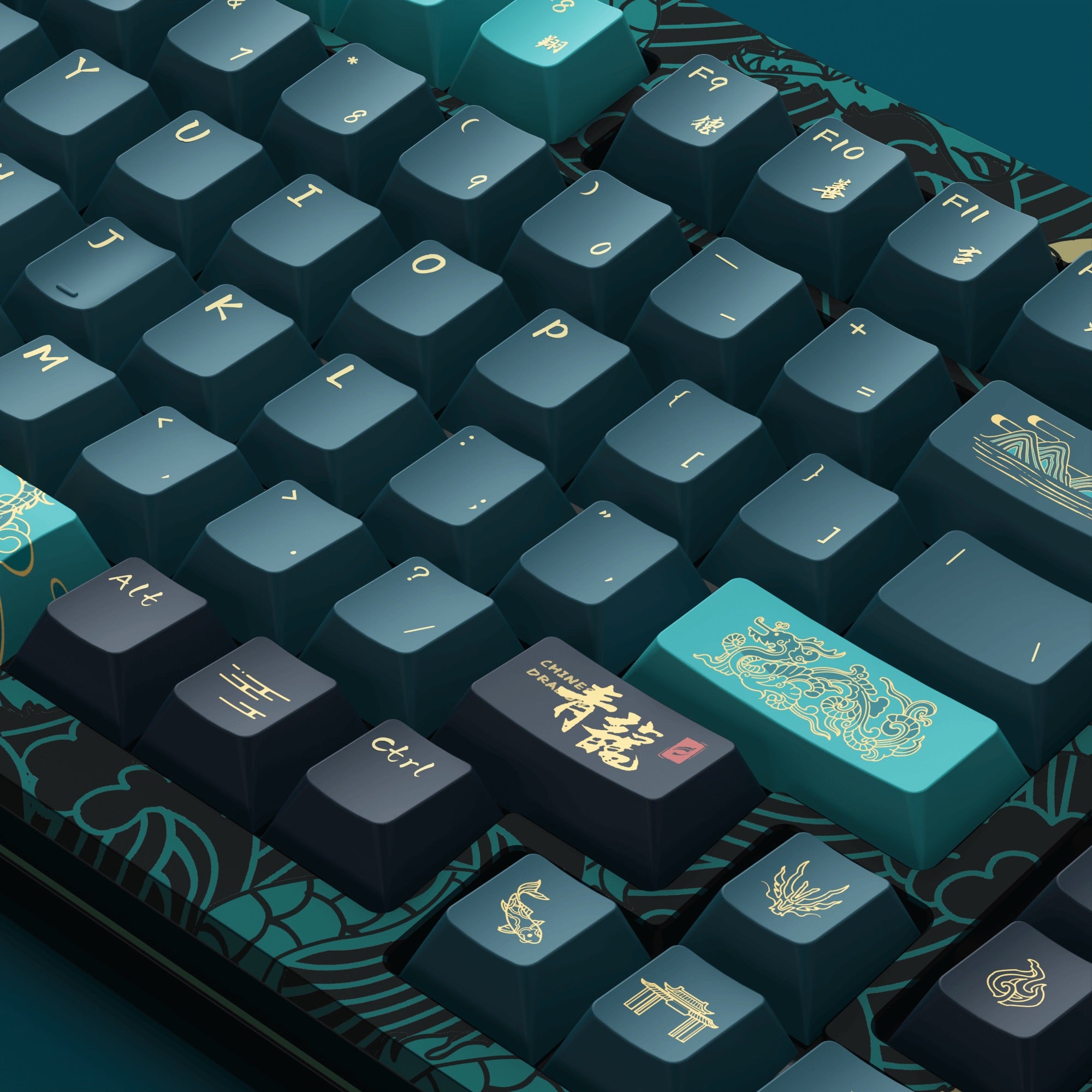

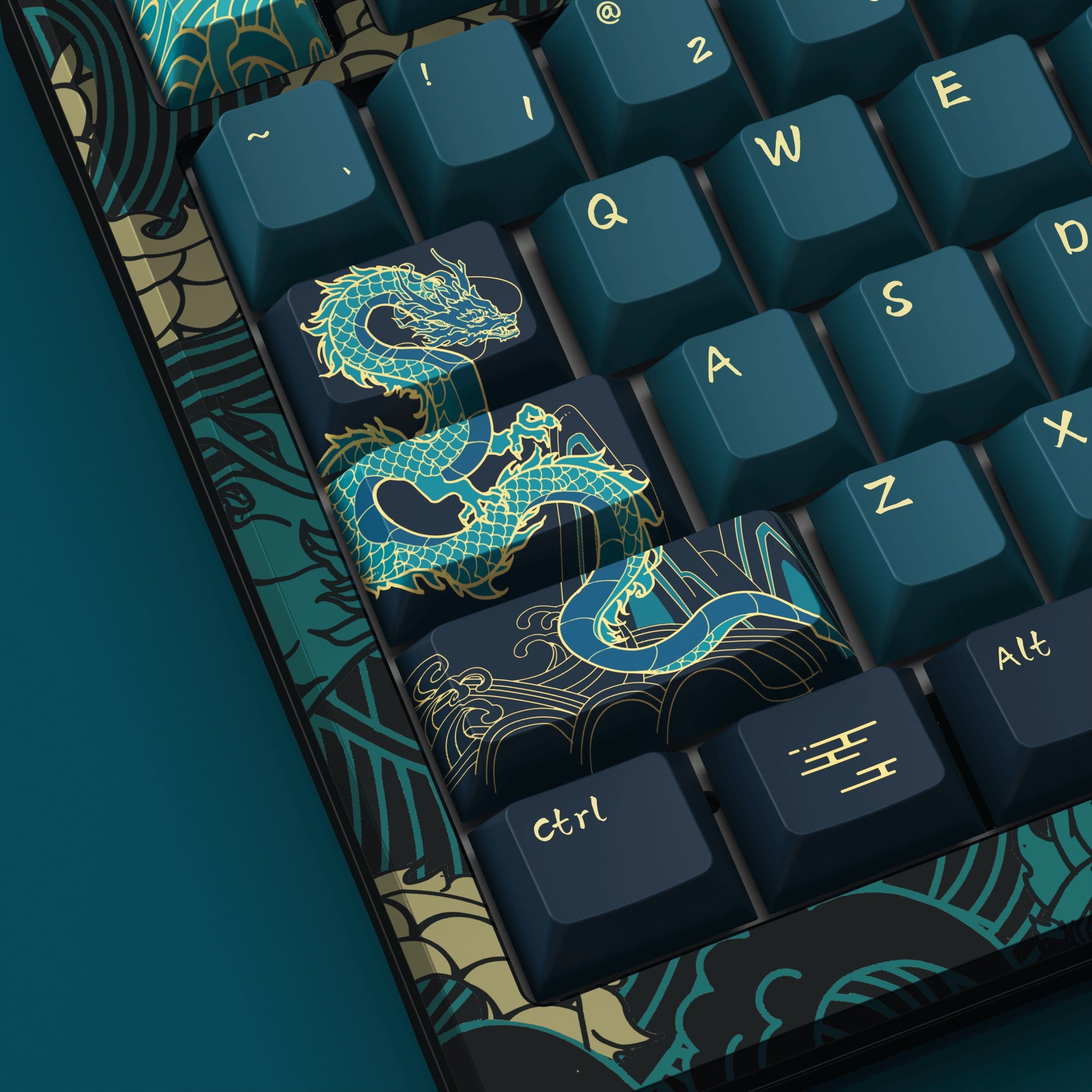

Cherry Profile Dye-sub PBT Keycaps

Utilize a cyan color scheme featuring elements inspired by the 'Year of Dragon'. The PBT keycaps boast exceptional oil resistance, enhancing the overall typing experience while ensuring the longevity of the legends' visibility.

Three Tone Anodization

The case undergoes an extremely intricate three tone anodization process. Enable the keyboard to have enhanced tactile sensation, be more durable, and scratch-resistant.

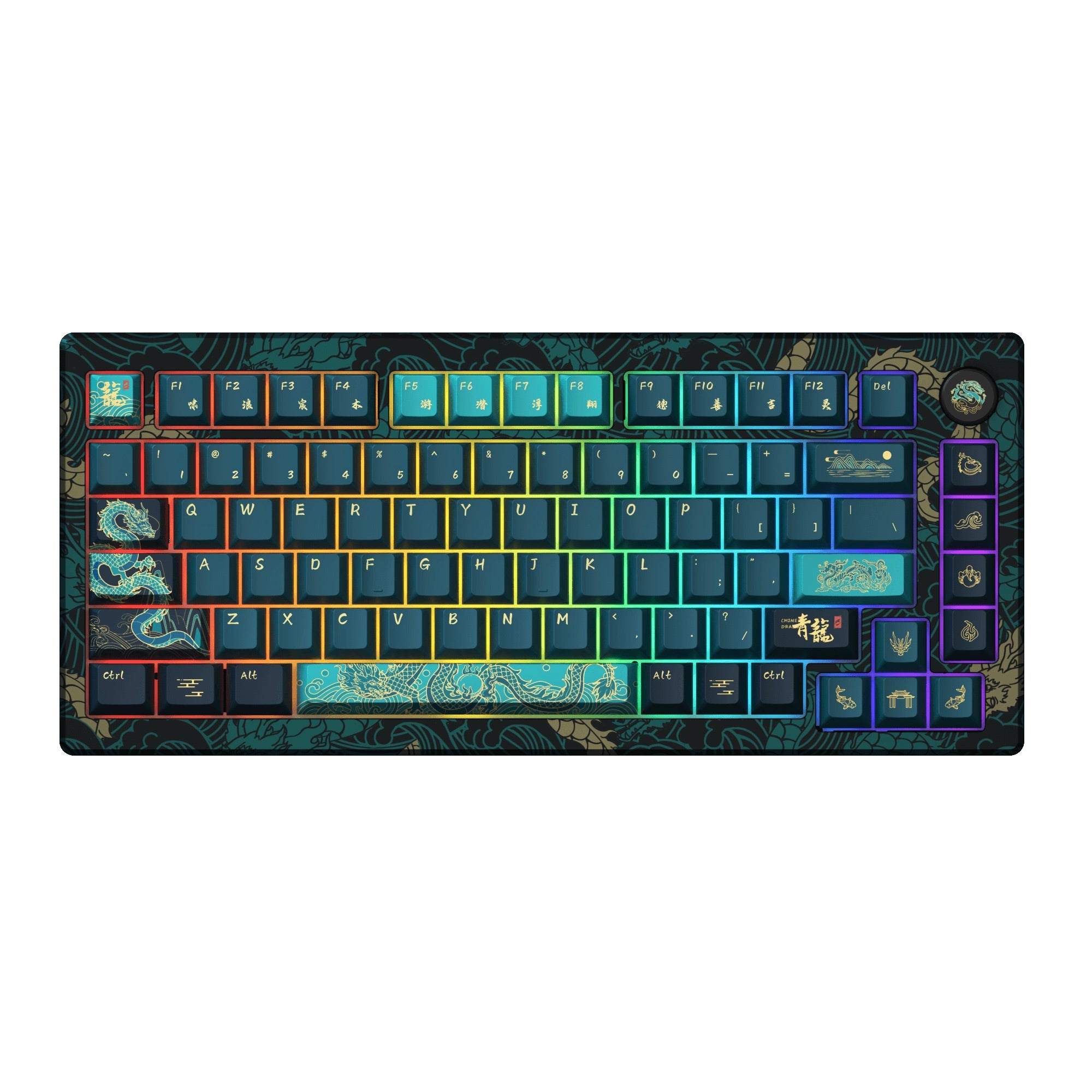

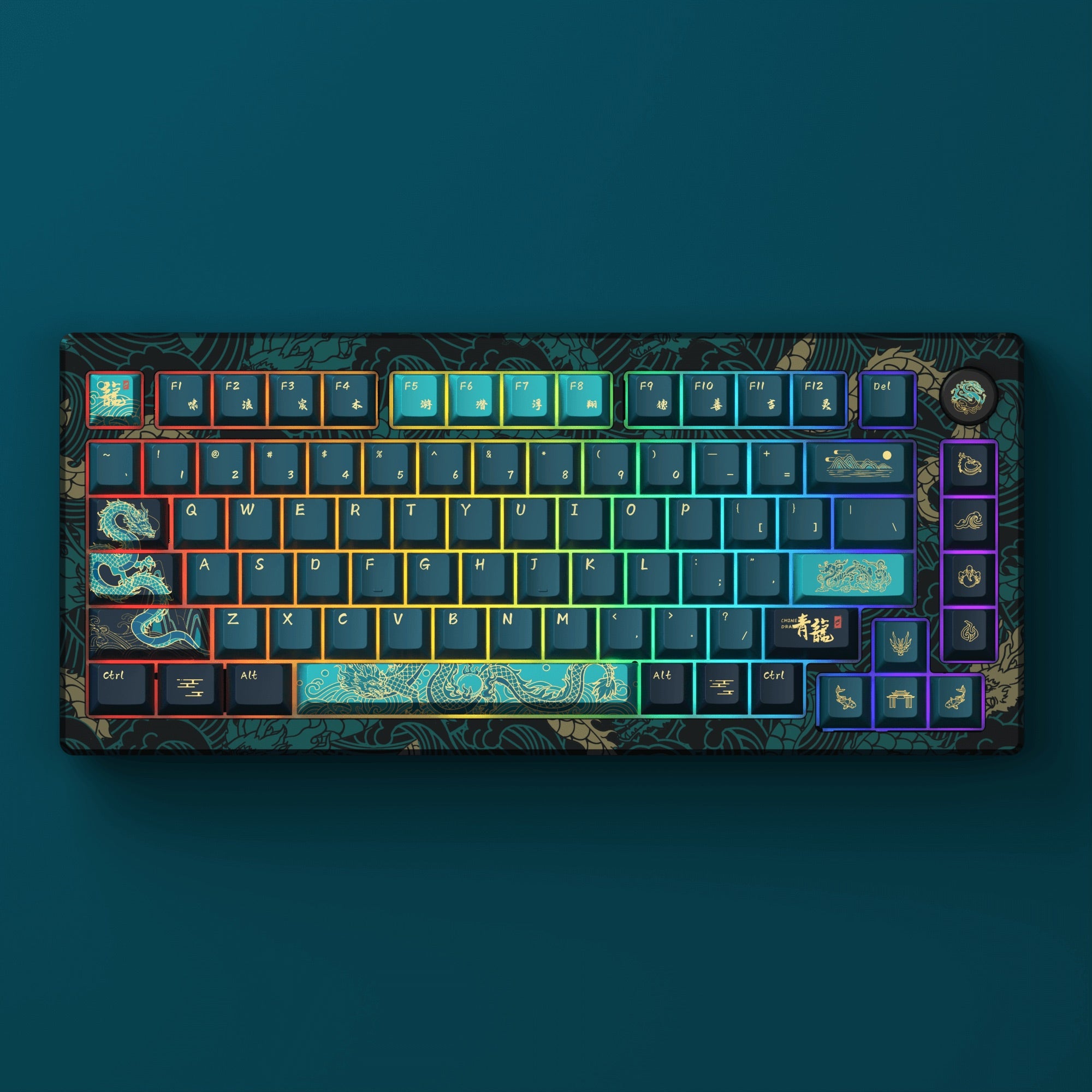

RGB Backlit

MOD 007 V3 HE Year of Dragon can help you type in the dark with decent backlit. It has over 20 preset backlighting modes.

You can easily create and tailor your own lighting effects with the Akko Cloud Driver, which offers over 16 million unique colors per key, as well as adjustable brightness and animation speed level.

PORON Plate Foam

MOD 007 V3 HE Year of Dragon is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.

FR4 & Copper Plate

MOD 007 V3 HE Year of Dragon utilizes an pre-builded FR4 plate and a copper plate for a stiffer and higher-pitched sound profile.

TPU Double-shot Stabilizers

MOD 007 V3 HE Year of Dragon utilizes TPU Double-shot Stabilizers, which effectively minimizes keycap wobbling.

Gasket Mount

A gasket mount keyboard is a type of mechanical keyboard that uses a gasket material, such as silicone or neoprene, to create a “floating” mount for the switches. The gasket is placed between the plate and the PCB, which allows for a more flexible and cushioned typing experience.

This design allows for more flex and cushioning, which can result in a softer typing experience.
