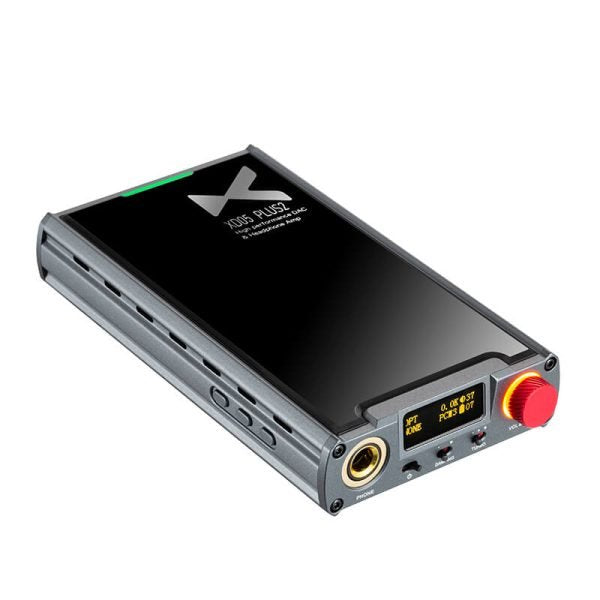

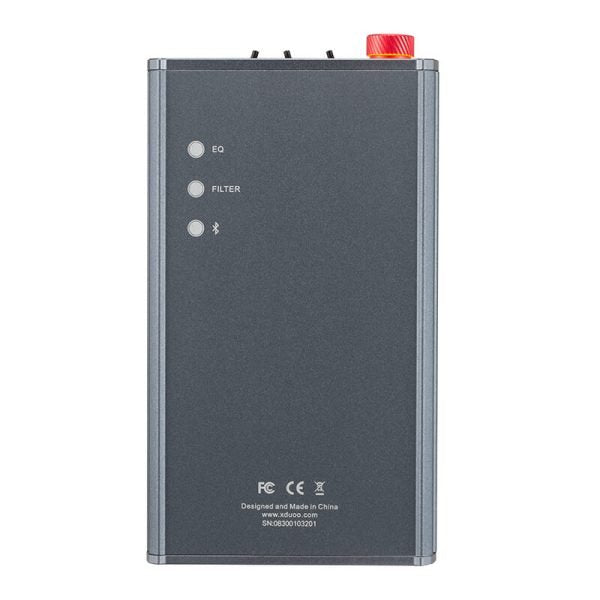

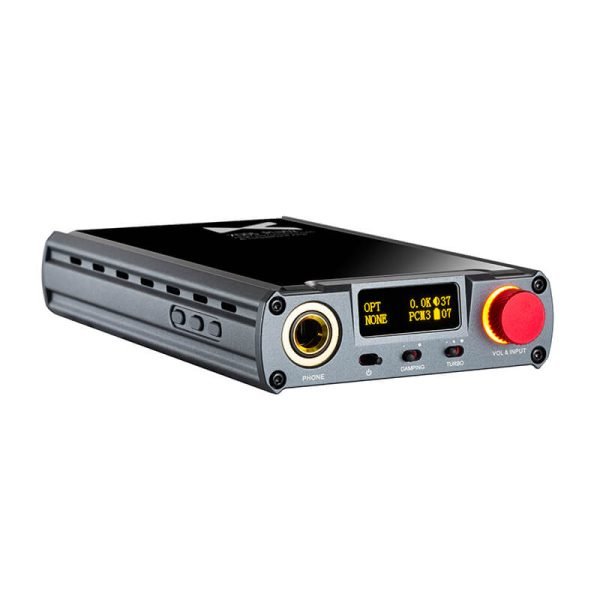

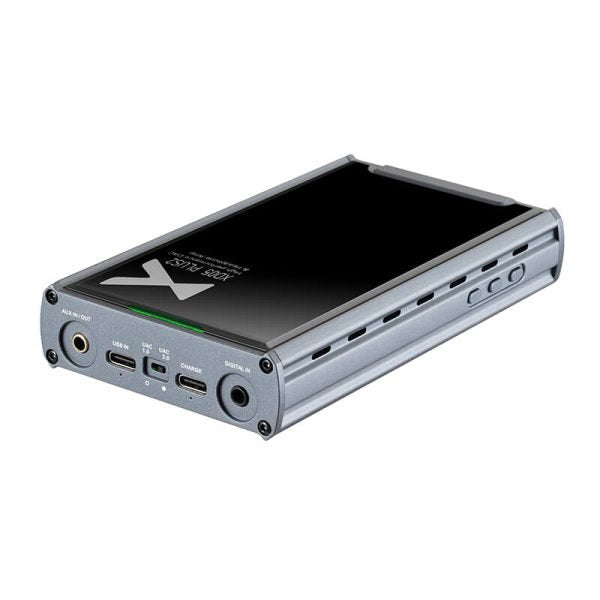

xDuoo - XD05 PLUS2 DAC & Headphone Amplifier
Portability & Power
The xDuoo XD05 PLUS2 Portable DAC Headphone Amplifier is designed for audiophiles on the go. This pocket-sized powerhouse delivers an astounding 1200mW output power with a 32ohm load, making it comparable to desktop headphone amplifiers. Its versatility enables you to enjoy high-quality audio, whether you're commuting, traveling, or simply lounging at home.
Unmatched Decoding & Low Distortion
Immerse yourself in pristine audio with superior decoding capabilities. The XD05 PLUS2 supports DSD formats up to DSD256, PCM/DXD formats up to 32bit/384KHz, and even MQA Render. With a THD as low as 0.0015% and an S/N ratio up to -121dB, the noise is virtually inaudible, allowing for an unparalleled listening experience.
Adaptive EQ & Connectivity Options

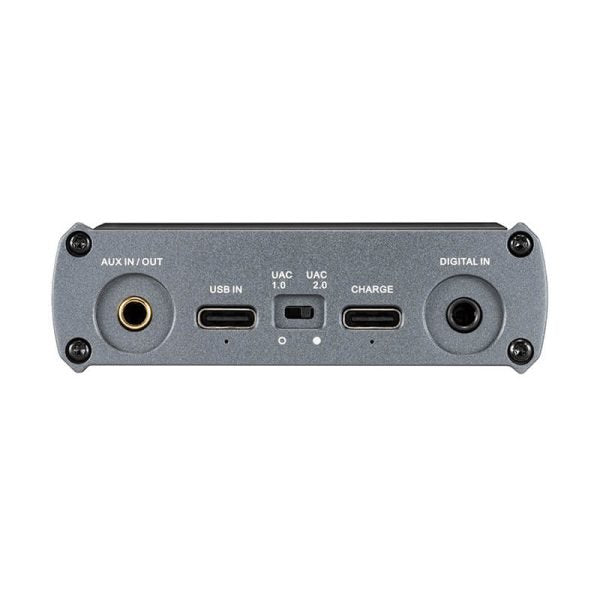

Easily tailor your audio experience with adaptable EQ settings for Music, Movies, Games, and more. Multiple audio inputs include high-definition USB supporting up to DSD256, optical and coaxial inputs, and Bluetooth with multiple formats like SBC, AAC, LDAC, and aptX series, freeing you from the constraints of cables.
User-Centric Design & Gaming Compatibility
Two USB systems (UAC1.0/UAC2.0) make this unit a versatile choice for gamers and cinephiles, compatible with platforms like PC, SWITCH, PS, and XBOX. With 99-level volume adjustment and balanced left and right channels, you can pinpoint the perfect volume for any headphone sensitivity.
Premium Components & Lasting Battery
Quality matters, and that's why the XD05 PLUS2 features professional-grade chips, high-end capacitors, and a DAC chip AK4493SEQ for optimal sound fidelity. Its robust 5000mAh battery ensures more than 9 hours of continuous playtime with USB input, and even longer with SPDIF and Bluetooth inputs, letting you indulge in extended listening sessions without worry.
Specification
| Battery | 3.8V/5000mAh |
|---|---|

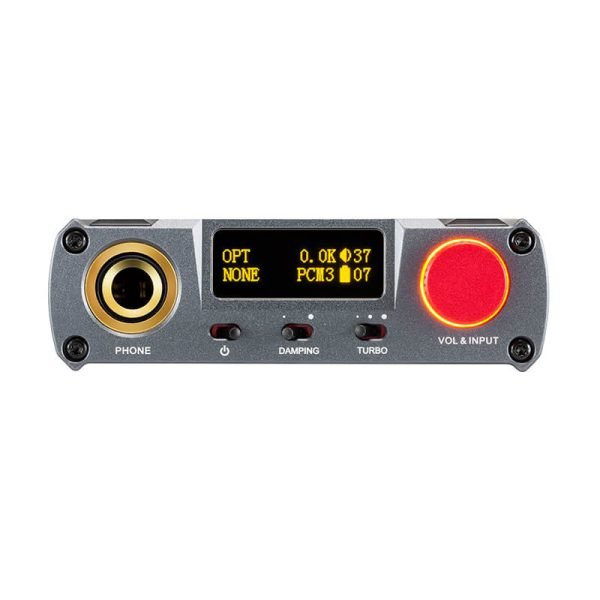

| Screen | 0.91" OLED |
| Compliant OS | Windows/Linux/MacOS/IOS/Android |
| Frequency Response | USB/SPDIF: 20Hz~20kHz(±0.5dB) |
| Frequency Response | AMP: 10Hz~80kHz(±0.5dB) |
| Sampling Rate Support: USB | PCM: 16-32Bit/44.1-384kHz DSD: DOP/NATIVE DSD64-256 MQA: OFS |
| OPT/COA | PCM: 16-24Bit/44.1-192kHz DSD: DSD64(DOP) Bluetooth Formats: AAC/SBC/aptX/aptX LL/aptX HD/LDAC Gain: +0dB/3dB/6dB |
| Headphone out Parameters | Output power: 1200mW (32Ω) THD+N: 0.0015% @1kHz S/N: 121dB Crosstalk: ≥76dB |
| AUX OUT Parameters | Output Level: 2.0Vrms THD+N: 0.0009% @1kHz S/N: 122dB Crosstalk: ≥109dB |
| Battery life | ≥9H (USB IN), ≥15H (SPDIF IN), >18H (BT IN) |
| Charging time | <3 hours (fast charging), <5 hours (slow charging) |
| Size | 13.0X7.5X2.2cmm |
| Weight | 0.29kg |
| Warranty | 1 Year |
