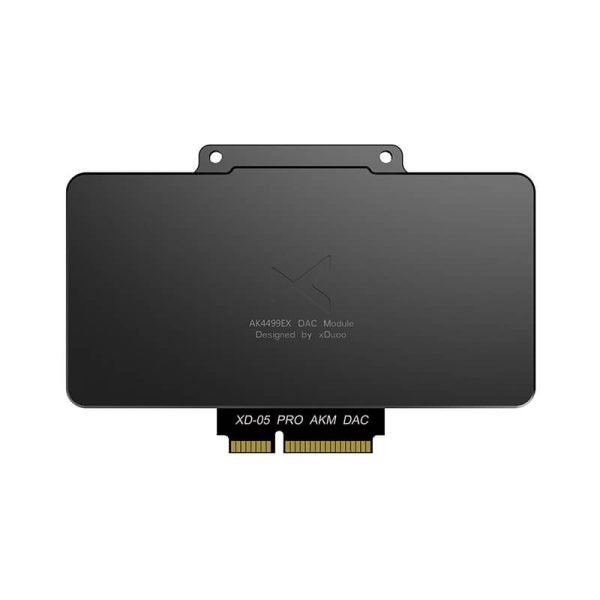

xDuoo - AKM AK4499EX DAC Card for XD05 PRO
By xDuoo
SKU: AK4499EX
€187,50
Upgrade your xDuoo XD05 Pro with the AKM AK4499EX DAC Card — a high-end, swappable module designed to deliver rich, smooth, and analog-like sound. Swap out the standard ES9039PRO card and experience the signature warmth of AKM's flagship DAC technology.
Swappable DAC Module Dedicated to xDuoo XD05 Pro
DAC Chip Model: AKM AK4499EX
The AKM AK4499EX DAC module is an alternative, separately sold upgrade designed for the xDuoo XD05 Pro portable DAC/AMP. It allows you to replace the standard ES9039PRO DAC card with AKM’s flagship chip, significantly altering and enhancing the XD05 Pro’s sound signature.
Specification
| Applicable OS | Windows, Linux, Mac OS, iOS, Android system |
|---|---|
| Battery | 3.7V / 13600mAh |
| Battery Life | USB IN ≥ 11H SPDIF IN ≥ 11H AUX IN ≥ 20H (ECO Mode) |
| Charging Time | ≤ 6 hours (fast charging) | ≤ 15 hours (slow charging) |
| Size | 18.5 x 9.5 x 3.3 (cm) |
| Weight | 0.78 kg |
| UNBALANCED OUTPUT PARAMETERS | Output Power: 2000mW (32Ω, THD+N<1%) 240mW (300Ω, THD+N<1%) Output Impedance: < 0.2Ω Peak Voltage: 23.8Vp-p (TURBO) Frequency Response: 20Hz ~ 20KHz (±0.5dB) Crosstalk: ≥ 75 dB THD+N: 0.0007% S/N: ≥ 117dB |
| BALANCED OUTPUT PARAMETERS | Output Power: 2000mW (32Ω, THD+N<1%) 930mW (300Ω, THD+N<1%) Output Impedance: < 0.4Ω Peak Voltage: 47.2Vp-p (TURBO) Frequency Response: 20Hz ~ 60KHz (±0.5dB) Crosstalk: ≥ 106 dB THD+N: 0.0007% S/N: ≥ 119 dB |
| AUX OUT Parameters | Output Level: 2.0V THD+N: 0.0006% S/N: ≥ 118 dB Crosstalk: ≥ 96 dB |
| BAL-LO Parameters | Output Level: 4.0V THD+N: 0.0005% S/N: ≥ 120 dB Crosstalk: ≥ 100 dB |
| Warranty | 1 Year |
