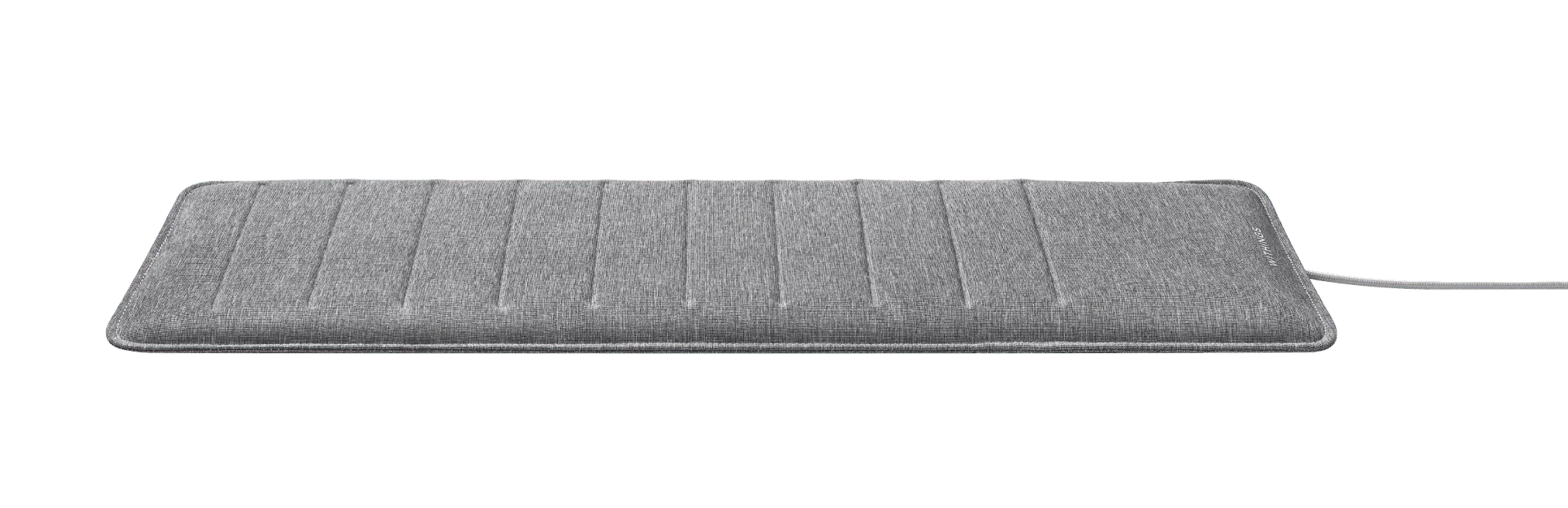

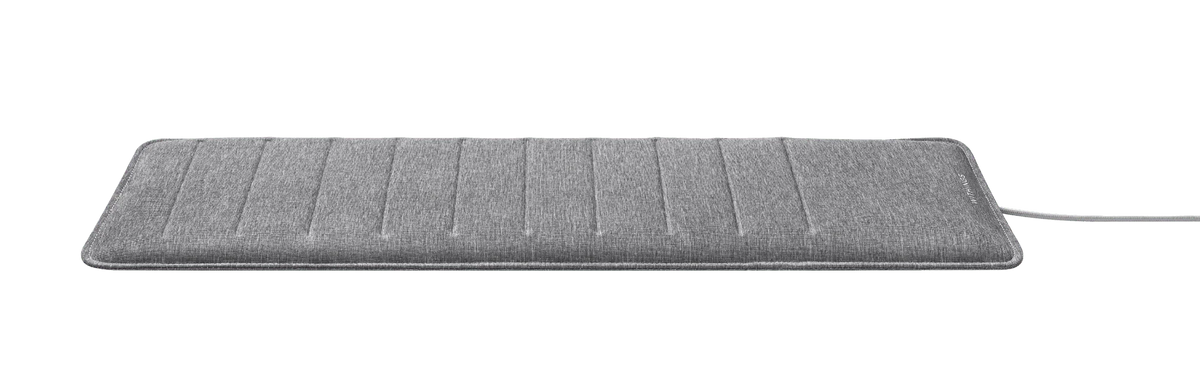

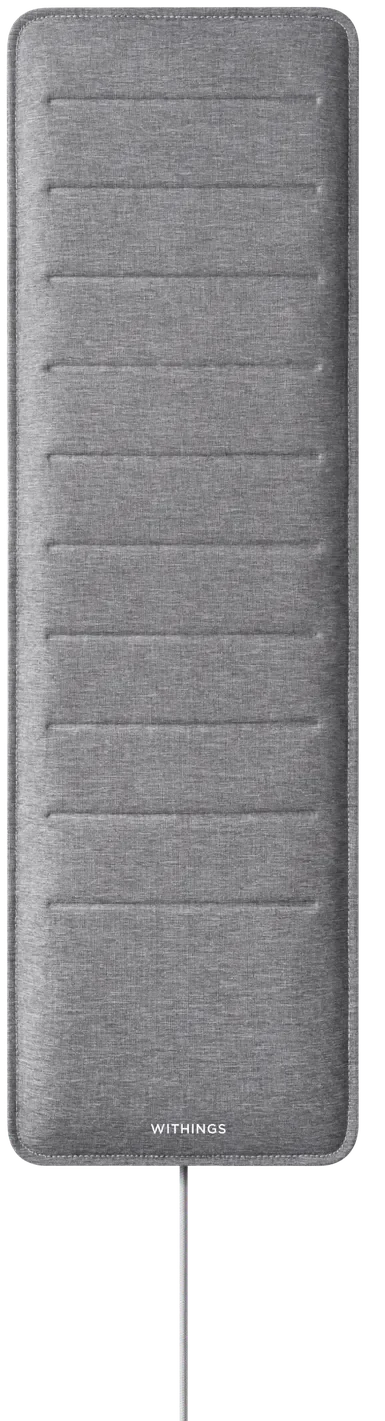

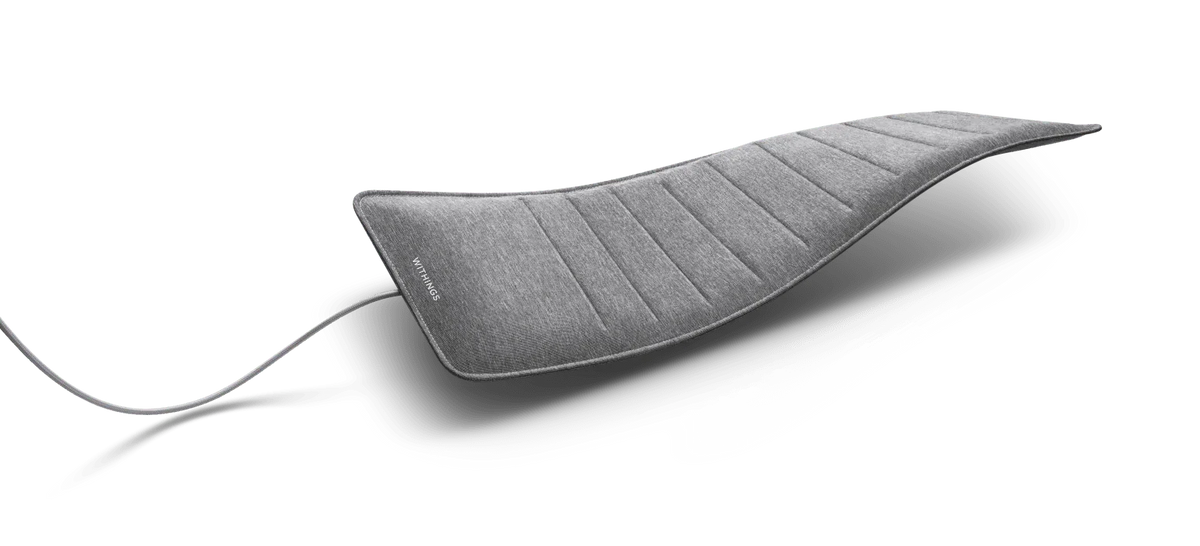

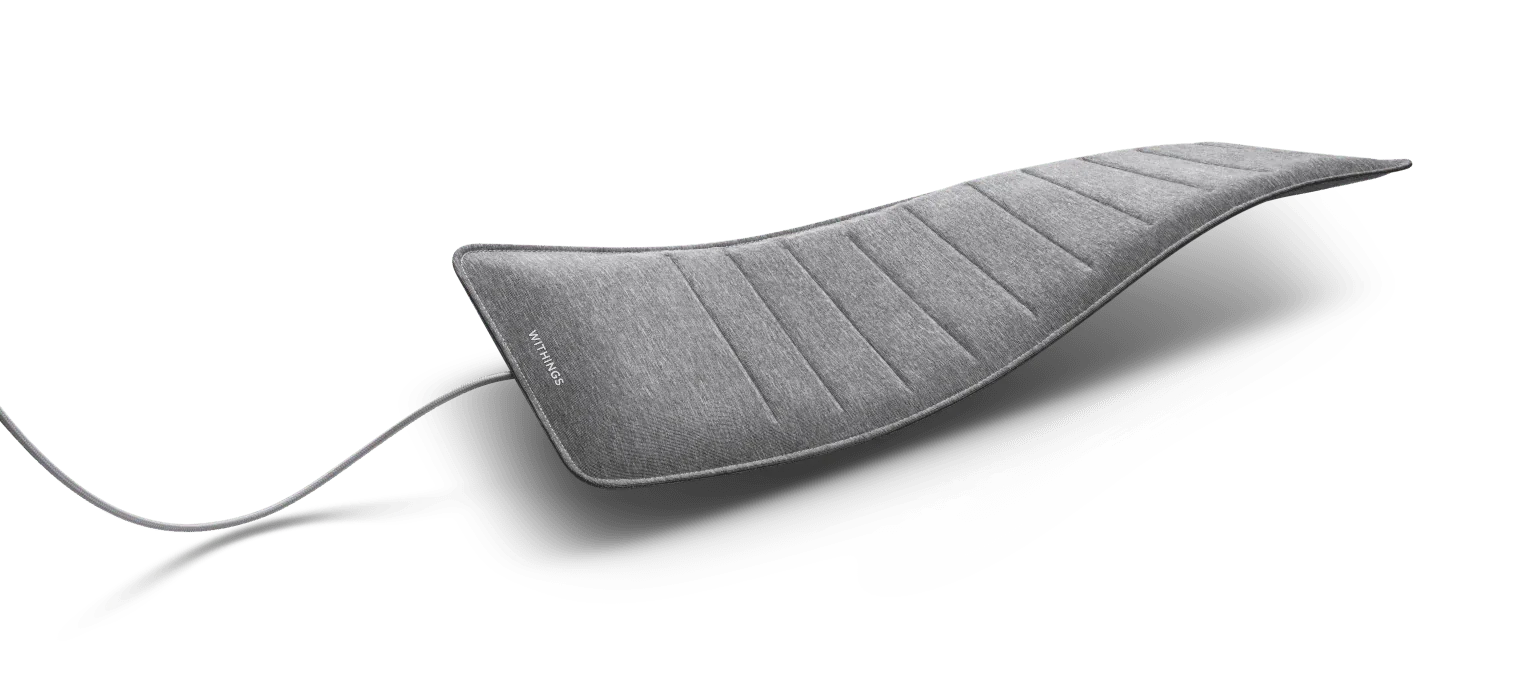

Withings - Sleep Analyzer - Smart Sleep Monitoring and Analysis Mat
Clinical sleep apnea detection
Sleep Analyzer is a medical device that detects sleep apnea—a serious and often undiagnosed condition. Thanks to an exclusive algorithm that analyzes chest and heart activity, the device identifies breathing interruptions and classifies their severity (from mild to severe) in accordance with American Academy of Sleep Medicine standards. This data is clinically validated and can be crucial for medical diagnosis.
Advanced sleep stage analysis and Sleep Score
Every night, the device precisely tracks your recovery, distinguishing between deep, light, and REM sleep stages. Based on this data, Sleep Analyzer calculates a daily Sleep Score—an indicator based on six parameters (including duration, regularity, and interruptions) that uses color-coded markers to show which aspects of your rest need improvement.
Continuous heart and respiratory monitoring
While you rest, the pneumatic sensor records vital parameters in real time. The device measures breathing rate and continuous heart rate, which is a powerful indicator of the impact of your lifestyle on heart health. Resting heart rate analysis helps assess whether you spend enough time in the deep sleep stage, essential for the body's physical recovery.
Smart snoring detection
Sleep Analyzer is equipped with an algorithm trained on a vast database, enabling it to distinguish your snoring from ambient sounds such as a washing machine, television, or a partner's snoring. The device tracks the number and duration of snoring episodes, which, combined with breathing analysis, provides a complete picture of your nighttime respiratory health.
Maximum comfort and smart home integration
This is a “set it and forget it” system—the sensor is placed under the mattress, eliminating the discomfort associated with wearing wristbands. Sleep Analyzer does not require charging and automatically synchronizes data via Wi-Fi after you wake up. Thanks to IFTTT integration, the device can serve as a home automation trigger, for example by turning off the lights when you get into bed or raising the thermostat temperature when you get up.
Specification
| Sensors: | Pneumatic sensor: measurement of breathing rate, heartbeats (ballistocardiography), and body movements. Sound sensor: identification of snoring signals and breathing interruptions. |
|---|---|
| Measured parameters: | Sleep duration, falling asleep and waking up, sleep stages (light, deep, REM), continuous and average heart rate, snoring duration, Sleep Score, sleep apnea episodes. |
| Connectivity | Wi-Fi 2.4 GHz (b/g/n), Bluetooth 4.0 (required for installation). |
| Dimensions: | Length: 637 mm, Width: 190 mm, Thickness: 5 mm |
| Weight: | Weight: 350 g |
| Power supply: | USB 5V 1A power adapter (included). No charging required. |
| Requirements: | iOS 16 (or later), Android 9.0 (or later). A Withings account and Wi-Fi connection are required. |
| Warranty: | 2 Years |
Package content
| Package contents | Withings Sleep Analyzer sleep sensor |
|---|---|
| USB power adapter | |
| Quick installation guide (EN, FR, DE, IT, ES) |
