Keychron - Thunderbolt 5 Dock (14-in-1)

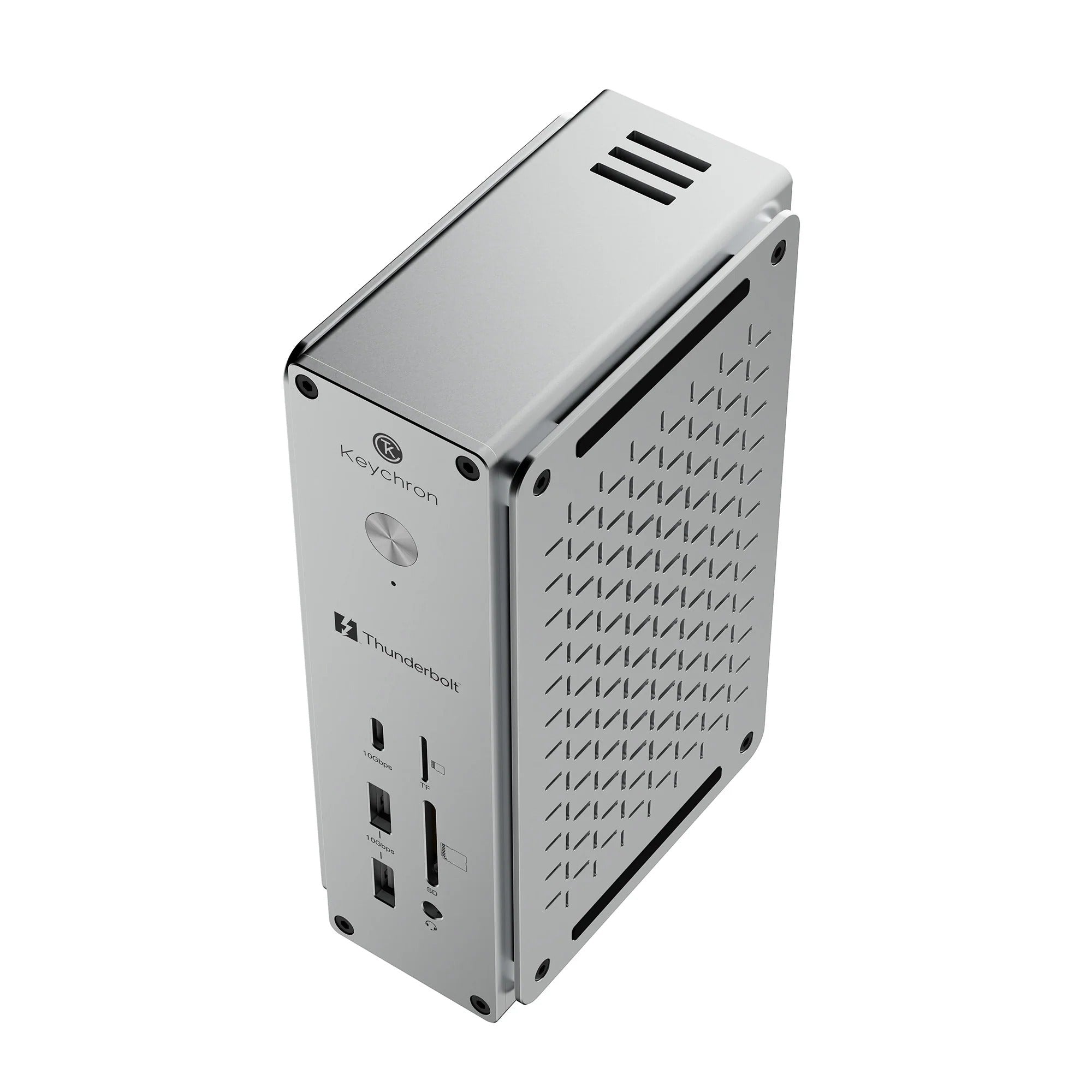

Keychron Thunderbolt 5 Dock (14-in-1)

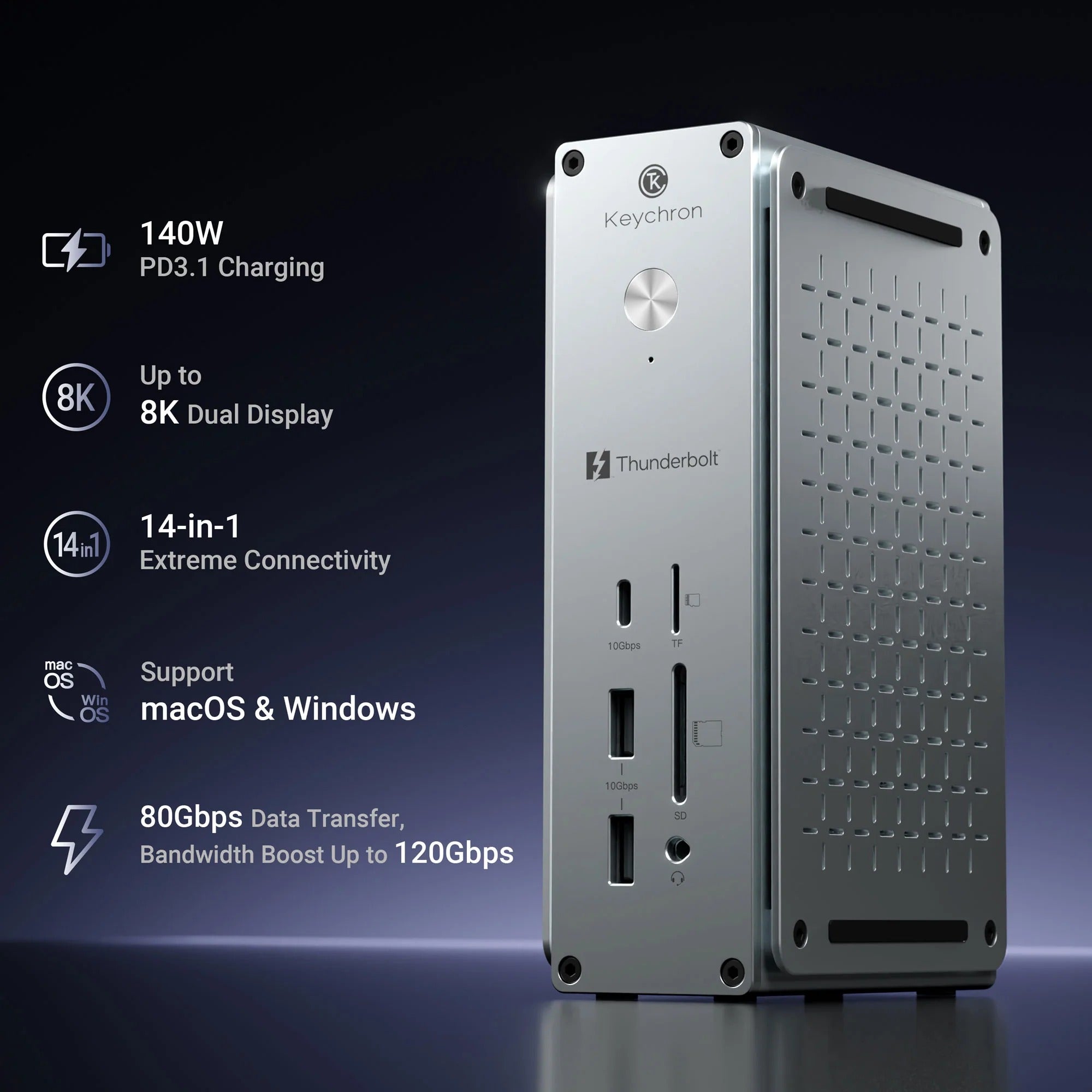

Keychron’s first dock is built for the next generation of desktop connectivity. Crafted from premium CNC-machined aluminum, this refined 14-in-1 docking station delivers a clean, Mac-style aesthetic and redefines how your professional workspace connects. Powered by Thunderbolt 5, it delivers lightning-fast 80Gbps bidirectional data transfer, Bandwidth Boost up to 120Gbps for professional workflows, stunning dual 8K display support, and up to 140W laptop charging. It brings massive desktop expansion into a single high-speed setup, unlocking maximum productivity across macOS and Windows devices.

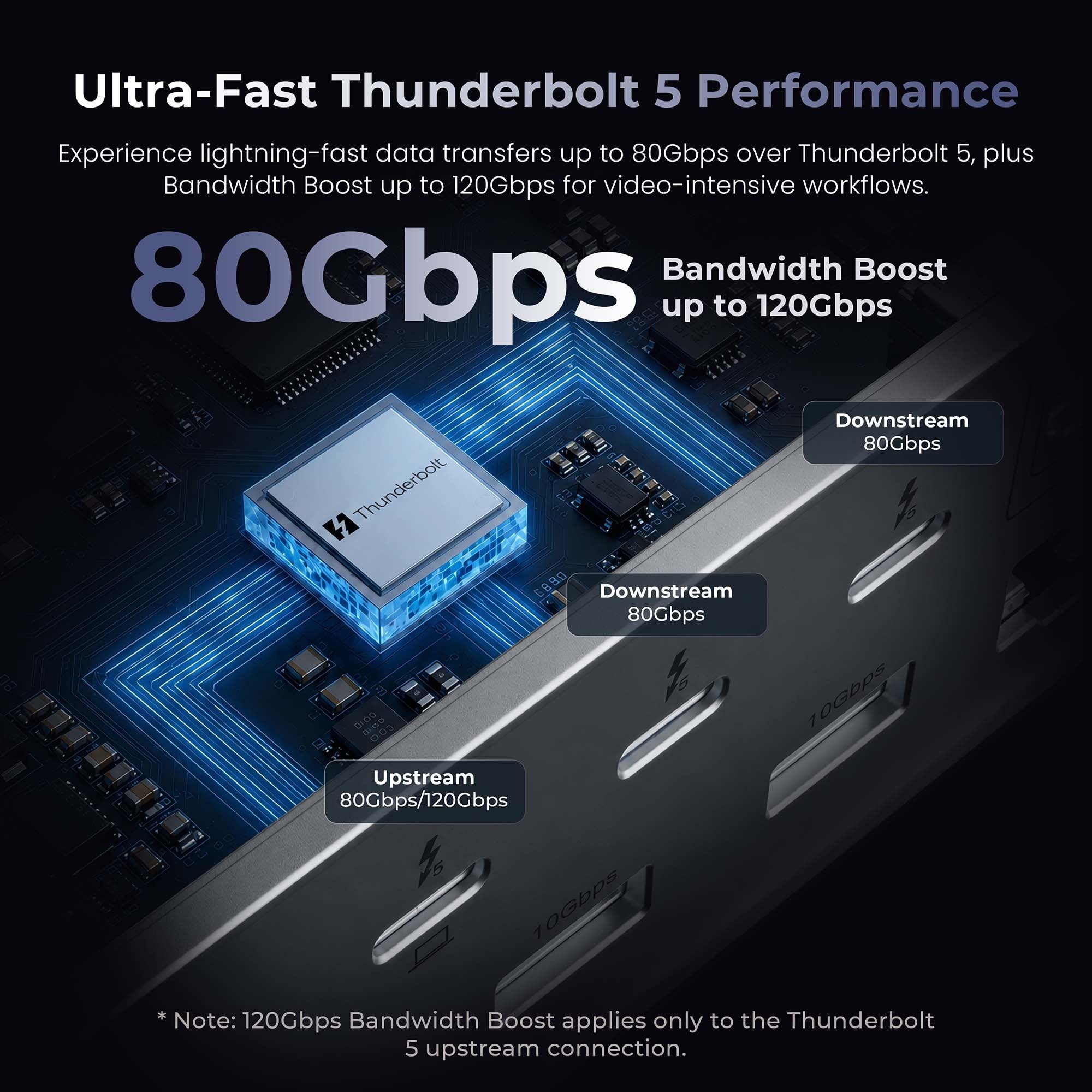

Built for Thunderbolt 5 Speed
Equipped with three 80Gbps bidirectional Thunderbolt 5 ports, this dock delivers double the performance of Thunderbolt 4. Powered by this next-gen architecture, it fully unlocks the true potential of your high-performance laptop, avoiding the bottlenecks of standard hubs. It brings unprecedented bandwidth to your desk for massive file transfers and ultra-fast storage. Meanwhile, with Bandwidth Boost reaching up to 120Gbps (Thunderbolt 5 upstream only) for video-intensive workflows, it delivers maximum performance for multi-display creative setups.

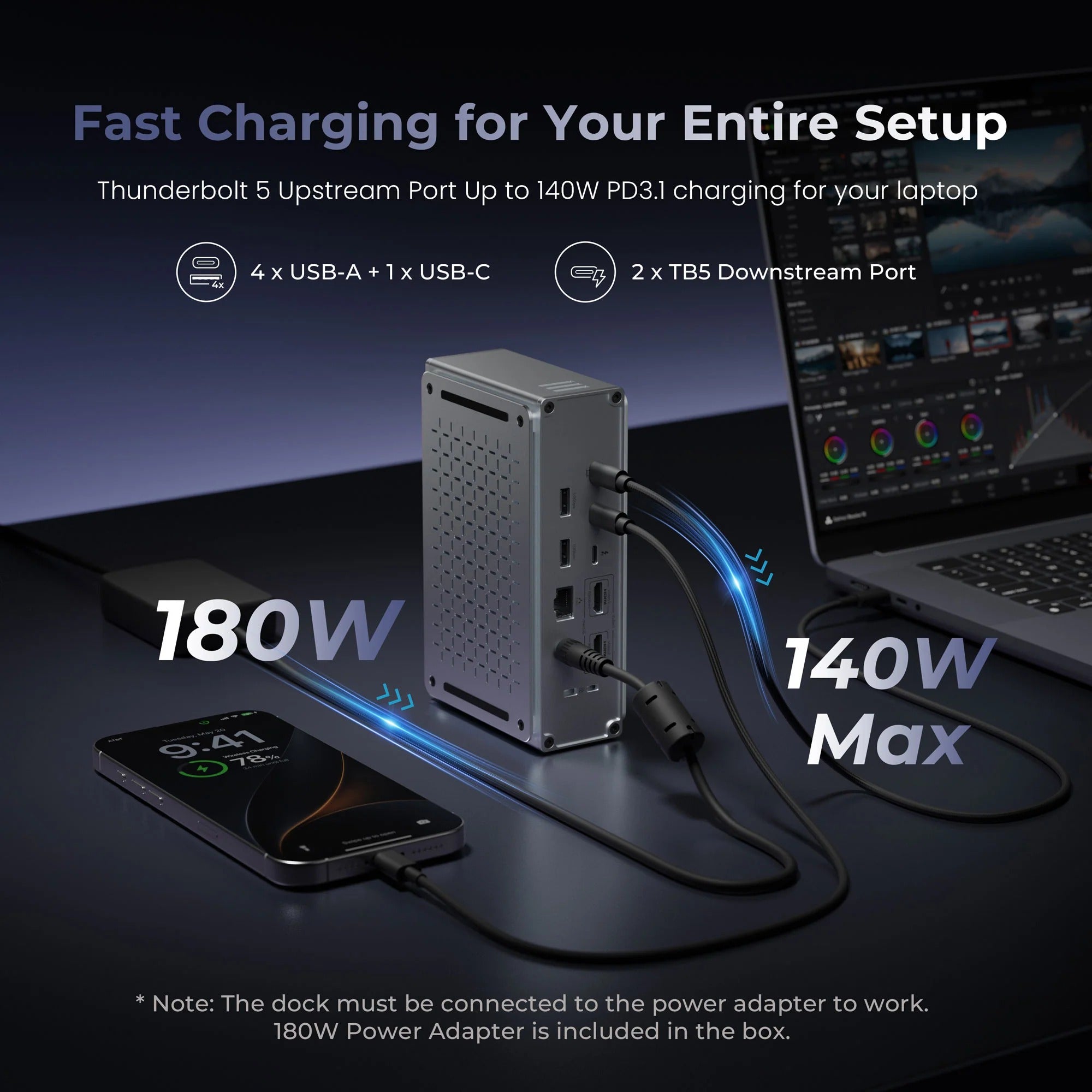

Fast Charging for Your Entire Setup
Charge your laptop at up to 140W through the Thunderbolt 5 upstream port—making it ideal for laptops like the 16″ MacBook Pro with M3, M4, or M5 Pro/Max chips. Meanwhile, the downstream Thunderbolt 5 ports support up to 30W and 15W output to keep your everyday devices powered and ready for work.
*Note: The dock requires the included 180W power adapter connected to its DC input to work.
Connect More. Work Faster.
Five USB ports let you connect everyday essentials and production gear, from keyboards, mice, and capture cards to external SSDs and storage devices. With up to 10Gbps transfer speeds, the dock helps keep your workflow fast and efficient.
Made for Modern Mac Setups

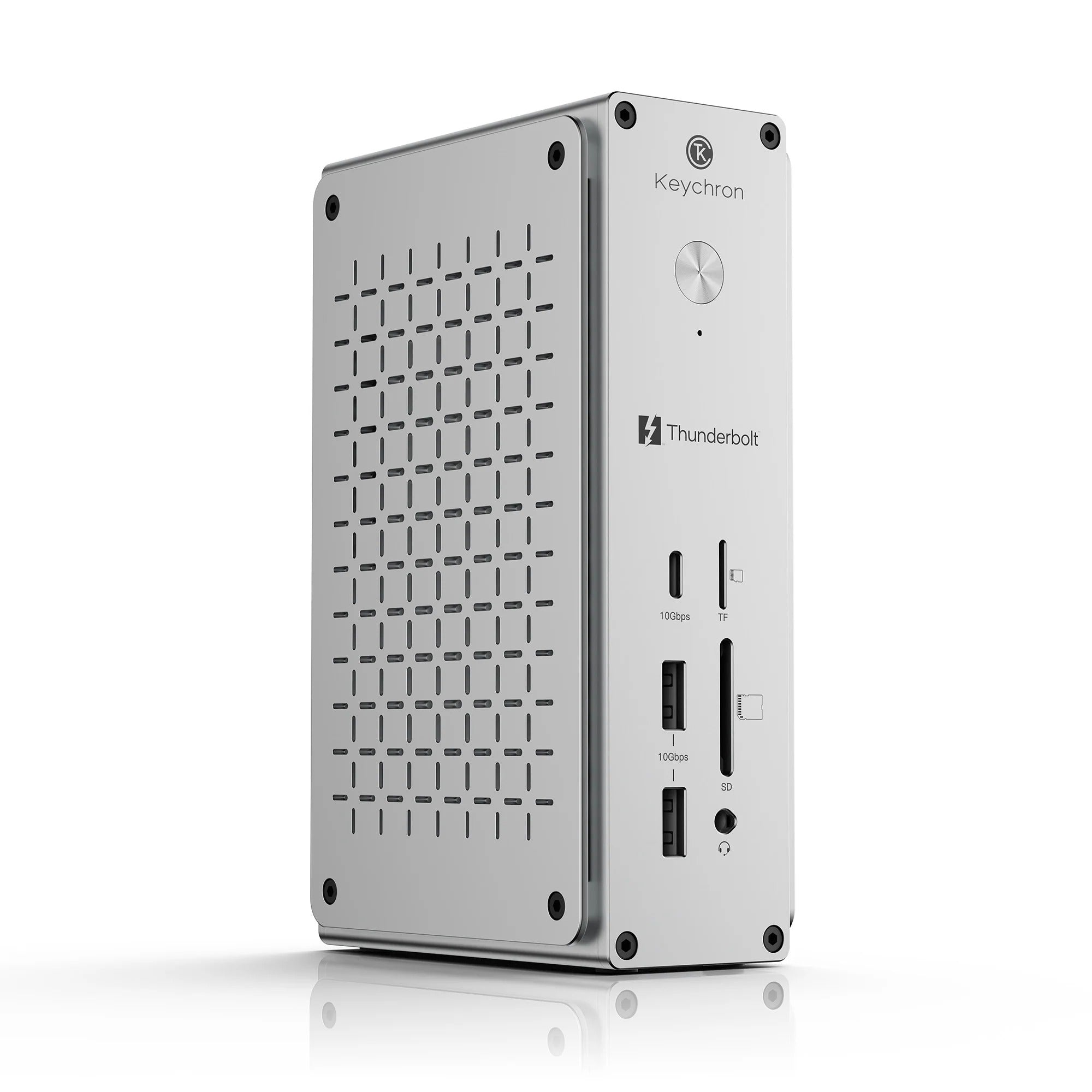

With a slim vertical form, this dock brings full-featured Thunderbolt 5 power to your desk without cluttering your workspace. Its premium aluminum enclosure and signature silver finish deliver a clean, Mac-style aesthetic that blends beautifully into any professional setup—from premium MacBooks to high-end Windows workstations.

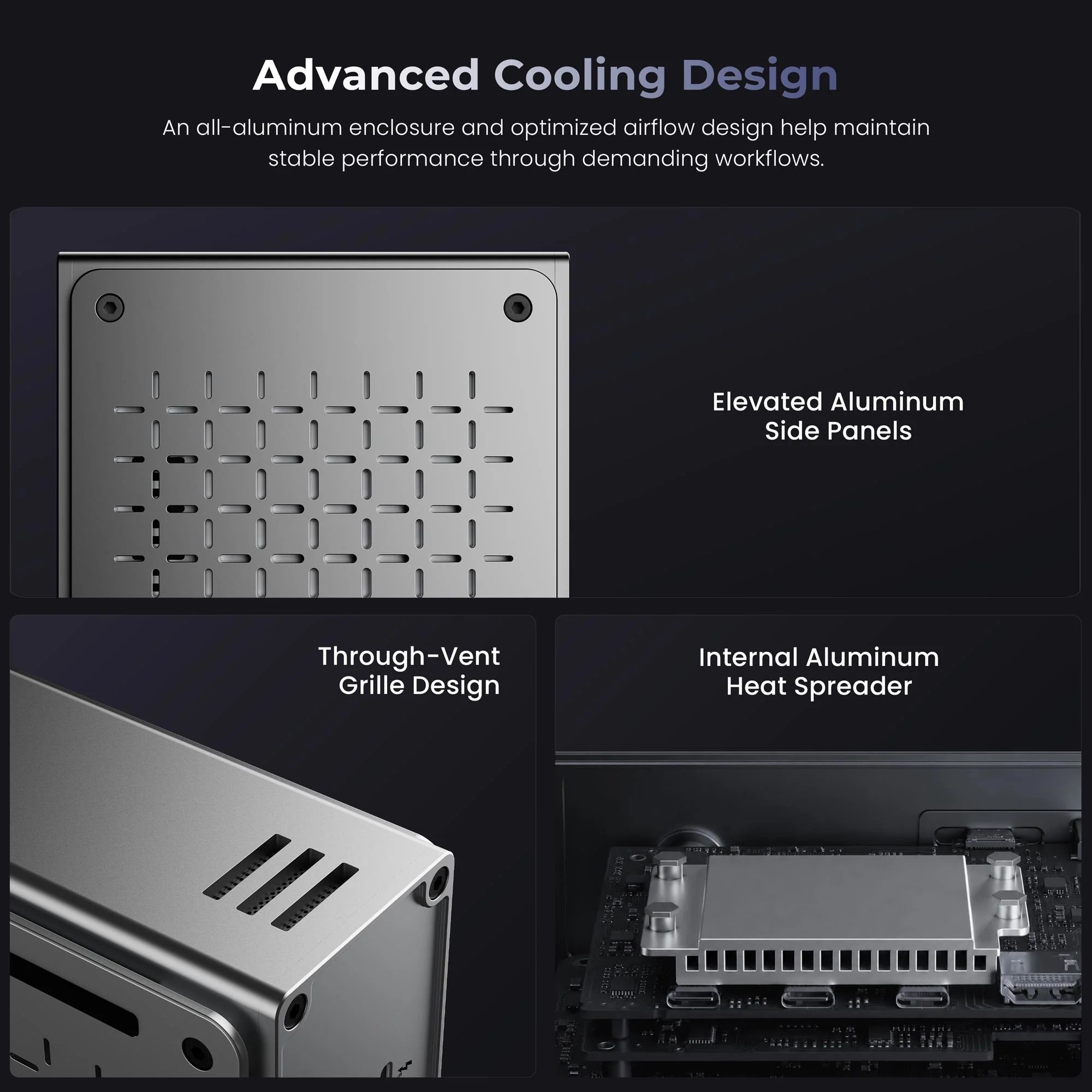

Advanced Cooling Design
Built for silent efficiency, this fanless, all-aluminum design delivers exceptional passive heat dissipation with zero operational noise and zero RGB light pollution. Engineered with elevated side panels, a through-vent grille, and an internal heat spreader, it maintains rock-solid stability during continuous Thunderbolt 5 transfers, multi-display output, and high-speed storage access.

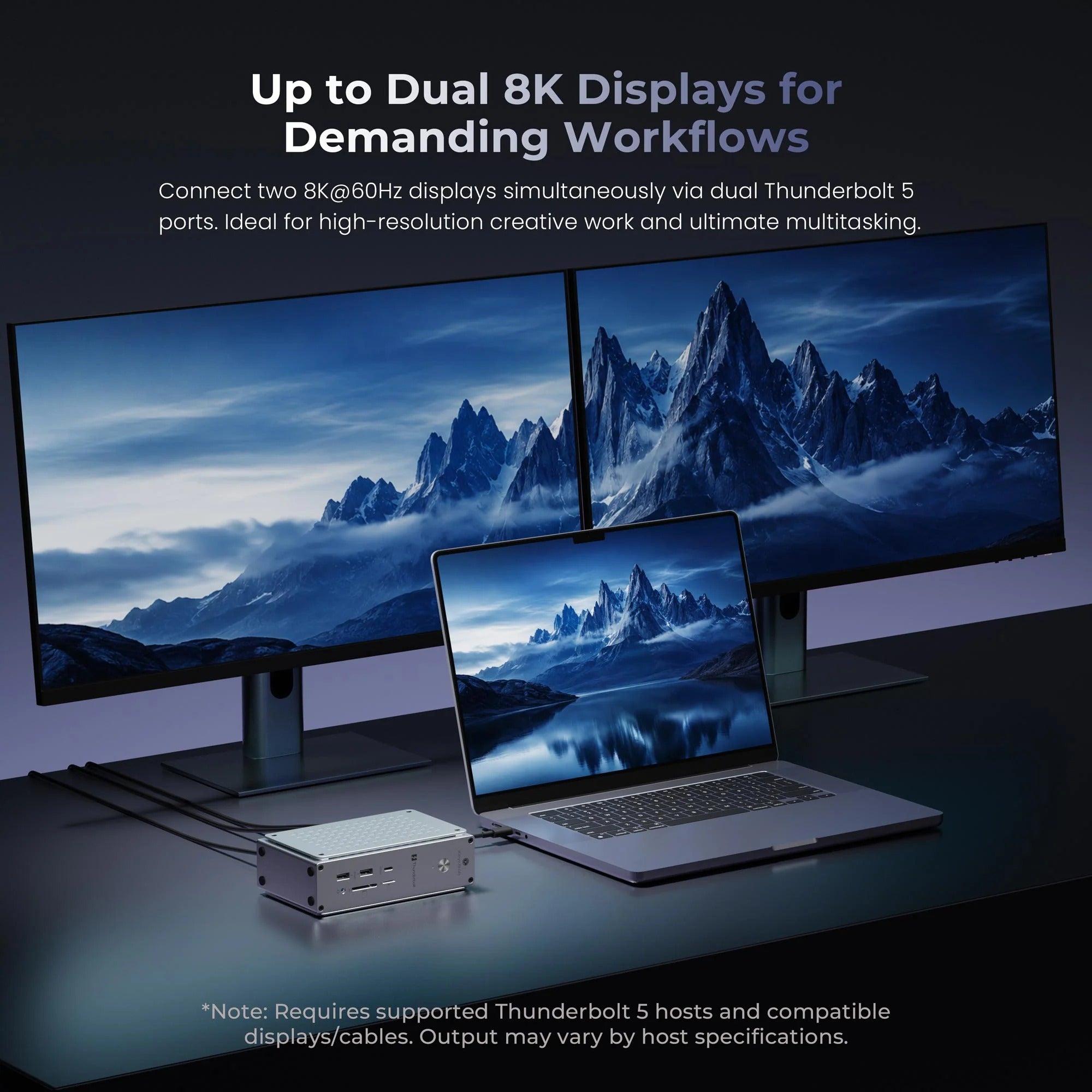

Powerful Multi-Display Layouts
Display Resolutions and Refresh Rates

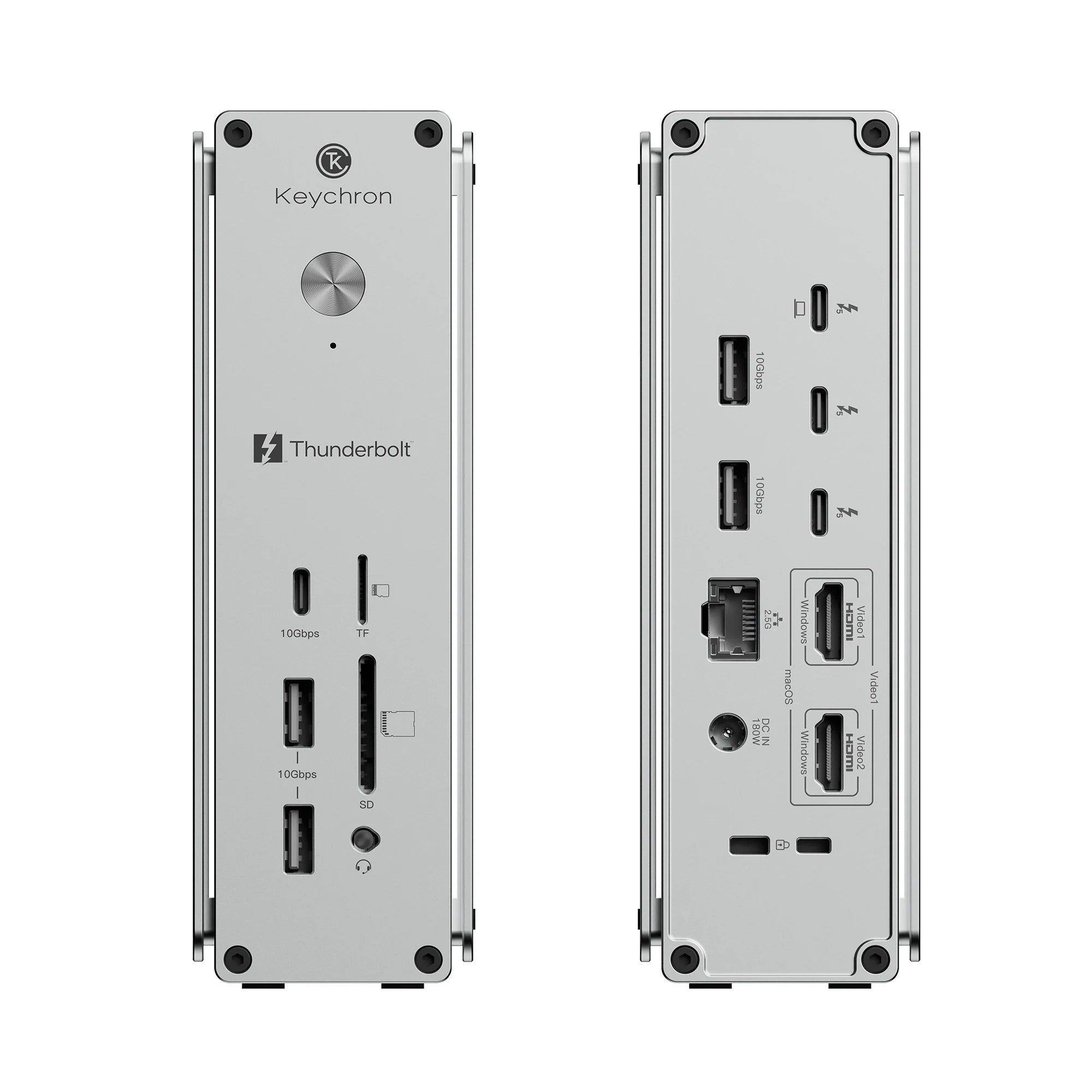

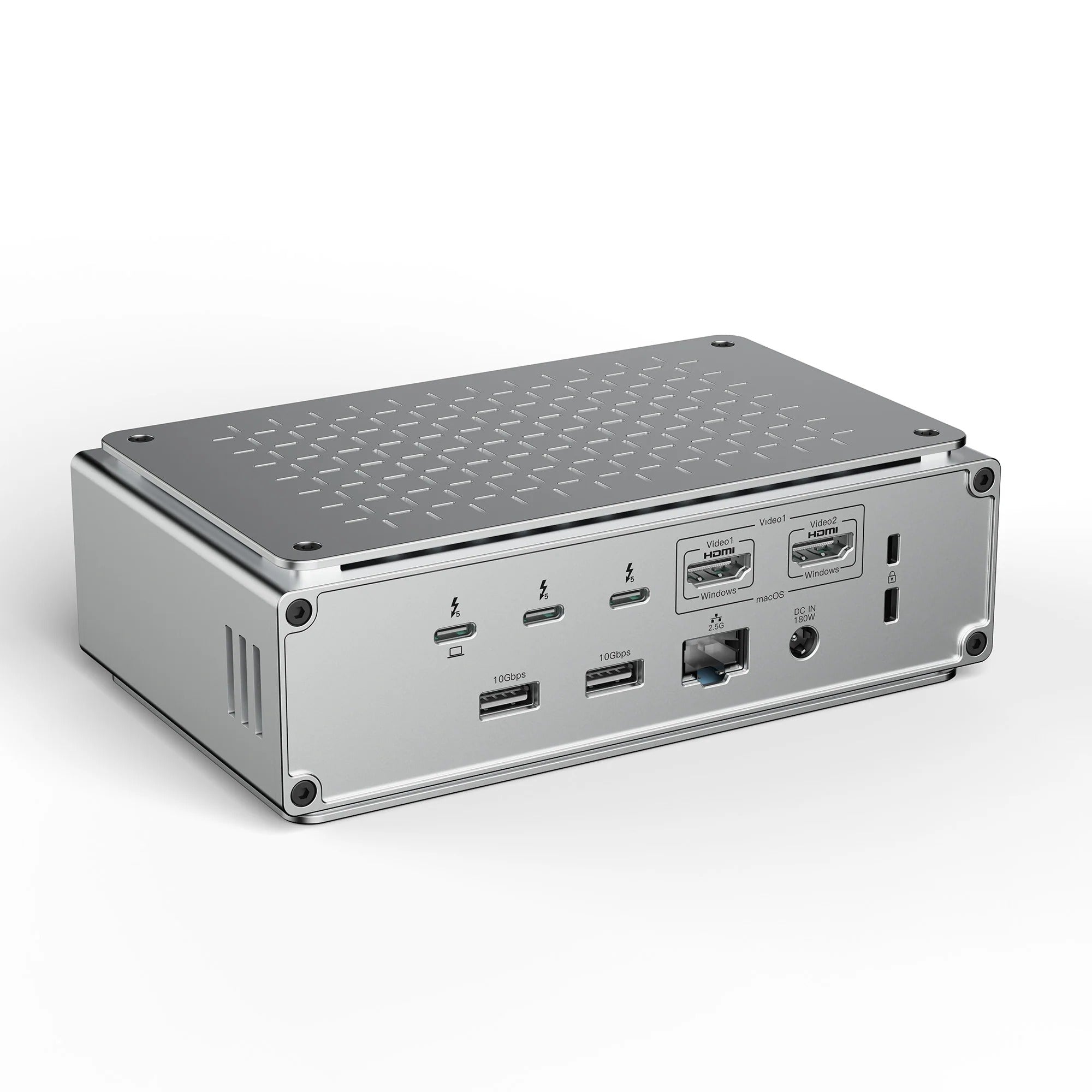

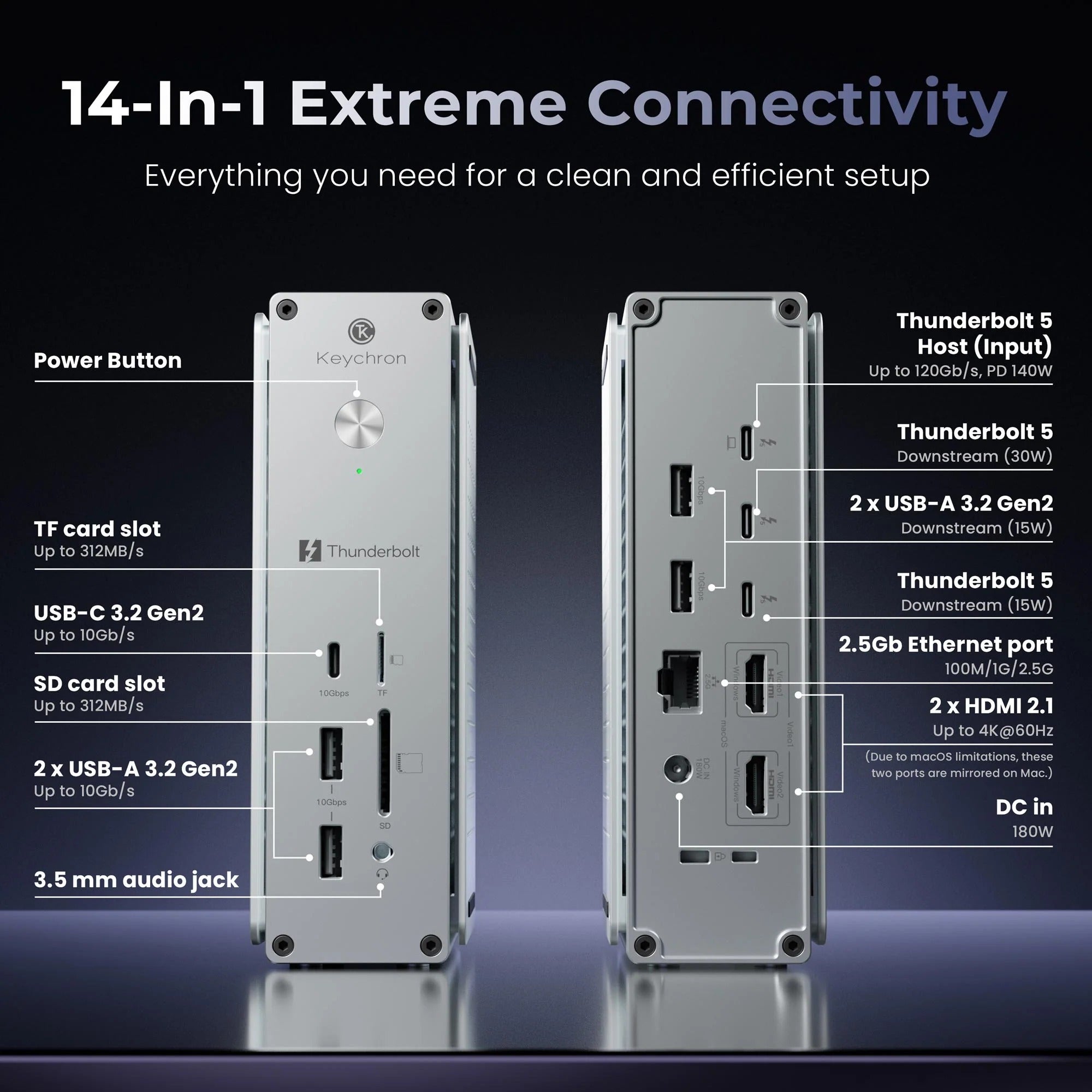

Every Port You Need
Specification
| Product Name | Keychron Thunderbolt 5 Dock |
|---|---|
| Total Ports | 14 |
| Host Interface | 1 x Thunderbolt 5 Upstream Port |
| Thunderbolt Bandwidth | Up to 80Gbps bi-directional bandwidth, Bandwidth Boost up to 120Gbps |
| Host Charging | Up to 140W Power Delivery (PD 3.1) |
| Thunderbolt Ports |
• 1 x Thunderbolt 5 Upstream (140W PD) • 1 x Thunderbolt 5 Downstream (30W) • 1 x Thunderbolt 5 Downstream (15W) |
| USB Ports |
• 4 x USB-A 3.2 Gen 2 (10Gbps) • 1 x USB-C 3.2 Gen 2 (10Gbps) |
| Video Outputs |
• 2 x Thunderbolt 5 (Up to 8K @ 60Hz) • 2 x HDMI 2.1 (Up to 4K @ 60Hz) • Supports up to Quad Displays / Dual 8K displays |
| Ethernet | 1 x 2.5Gb Ethernet Port |
| Card Reader | SD / microSD (TF) UHS-II, up to 312MB/s |
| Audio | 3.5mm Audio Combo Jack |
| Power Input | DC 180W |
| Material | Premium CNC-machined Aluminum Alloy |
| Dimensions | 164.5 x 97.5 x 52.9 mm |
| Weight | 856g (±10g) |
| Operating Environment | Temperature: 0°C to 40°C, Humidity: 20% to 85% (no condensation) |
| Storage Environment | Temperature: -20°C to 45°C, Humidity: 10% to 90% (no condensation) |
| Warranty | 1 Year |
Compatibility
| Supported Operating Systems |
• Windows 7 / 8 / 10 / 11 • macOS 10.12 or later |
|---|---|
| Compatible Host Devices (Examples) | MacBook Air series, MacBook Pro series, Mac mini, Dell Inspiron 14 Plus 7430, ThinkPad X13 Gen 3, MSI Titan GE78 HX, Razer Blade 18, Alienware x14, and more |
| Compatible Peripherals & Devices | SSDs, USB Flash Drives, SD / TF Cards, Keyboards, Mice, Headsets, Gaming Controllers, NAS systems, Phones, and Tablets |
| Compatibility Notes |
• For optimal compatibility, macOS must be version 10.12 or later, and Windows must be updated to version 7 / 8 / 9 / 10. • Charging speed may vary depending on your laptop's power input specifications. |
