Akko - Flash Magnetic Switch - 5pin (45pcs) Lubed with LED Condenser
Price
Pay later with Klarna
Pay in 30 days

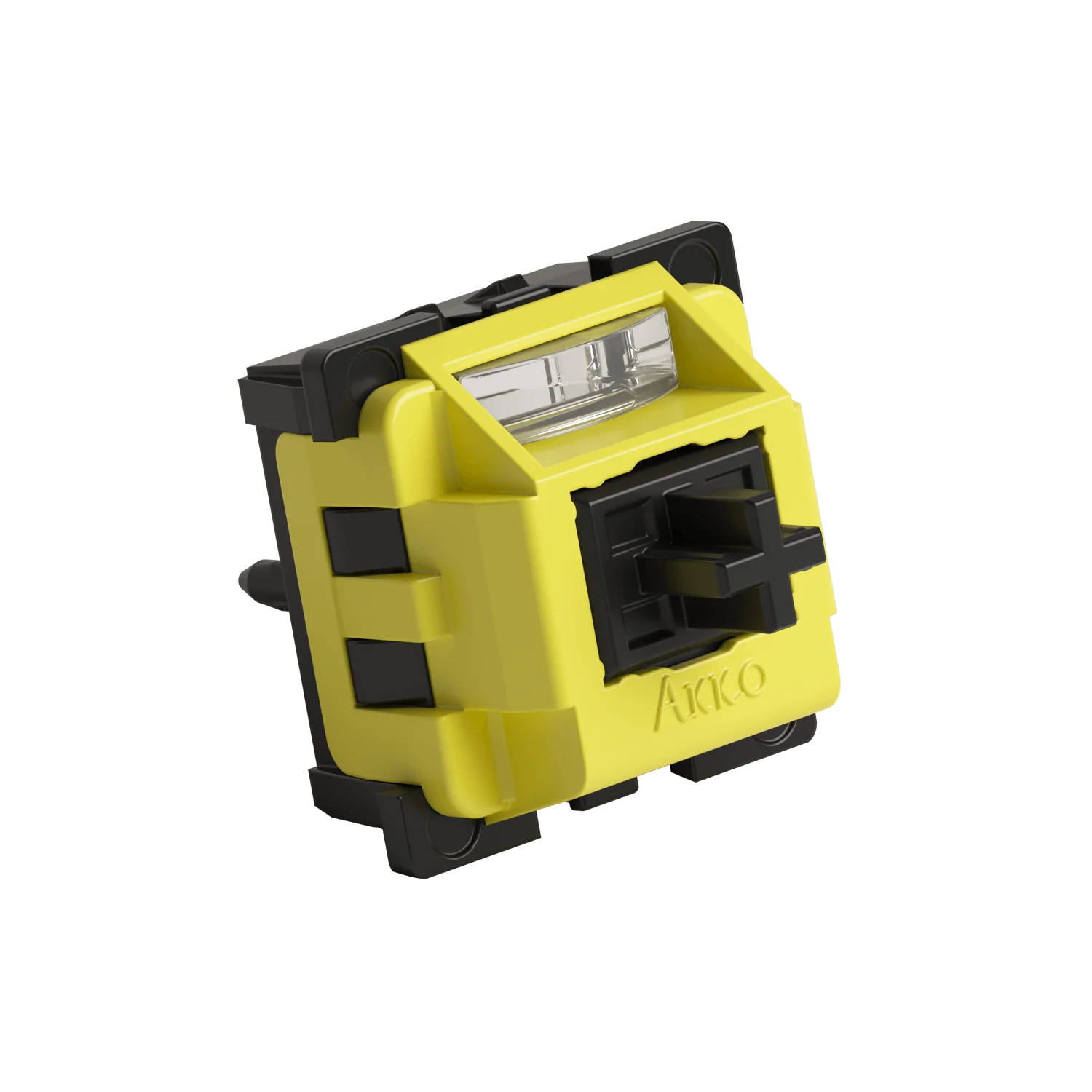

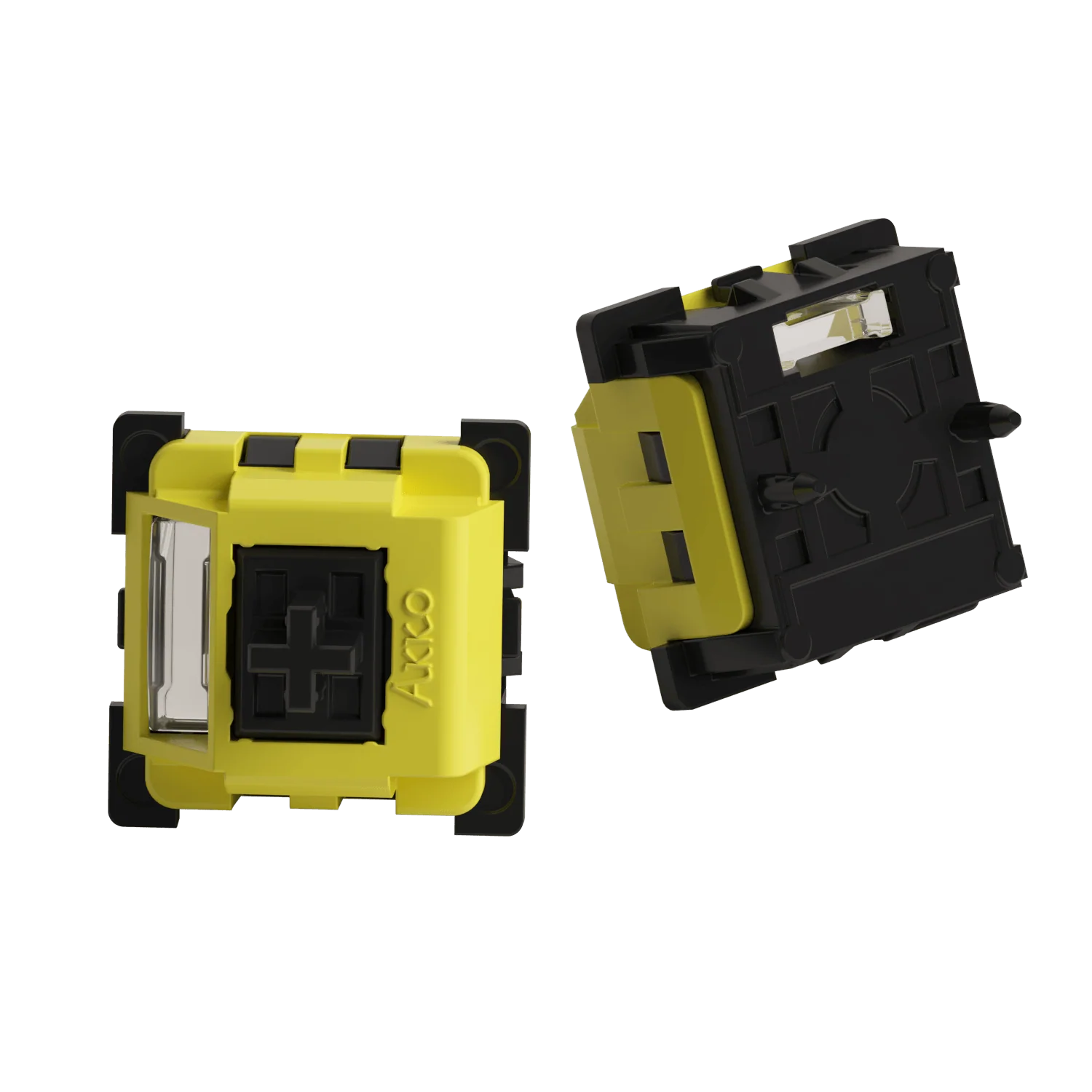

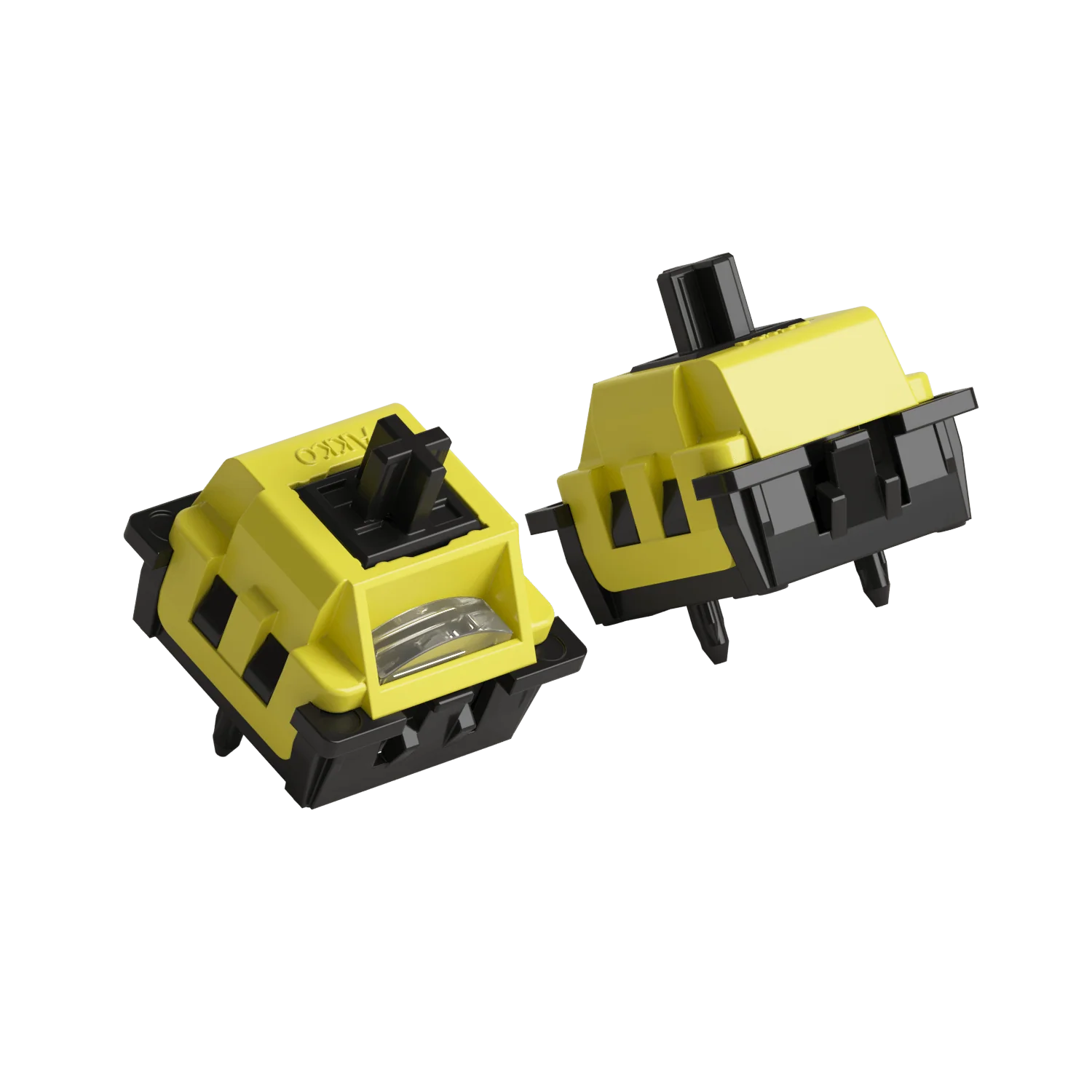

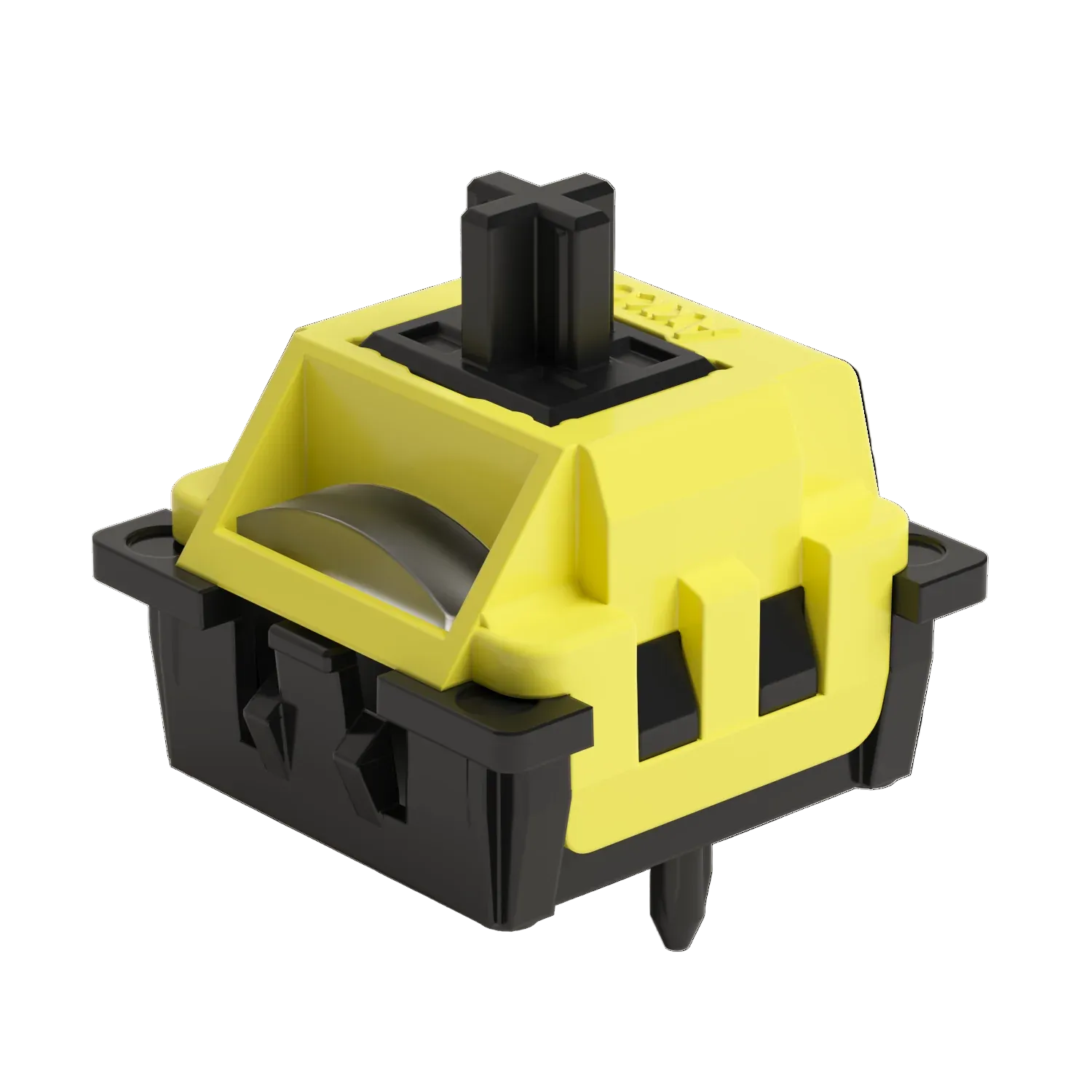

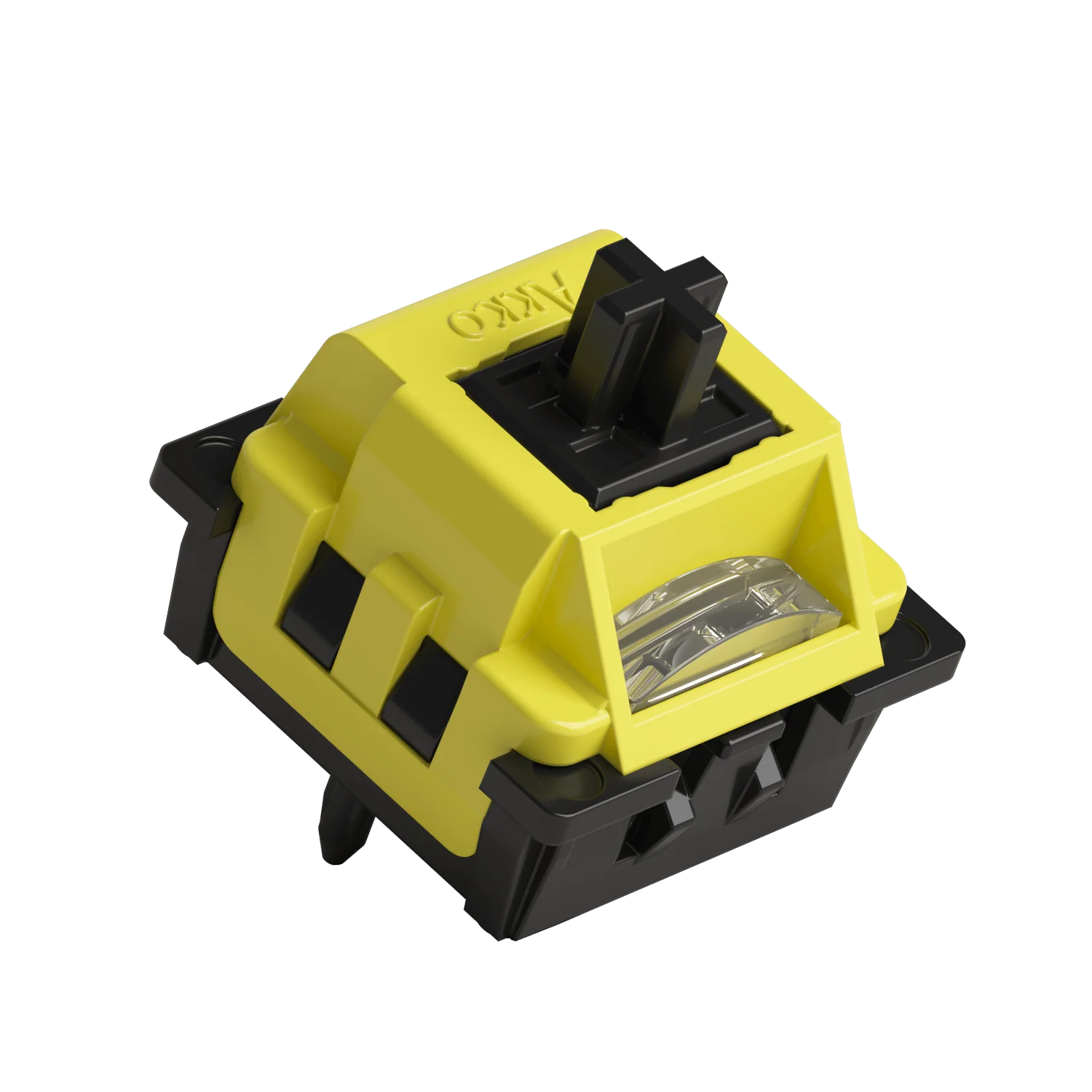

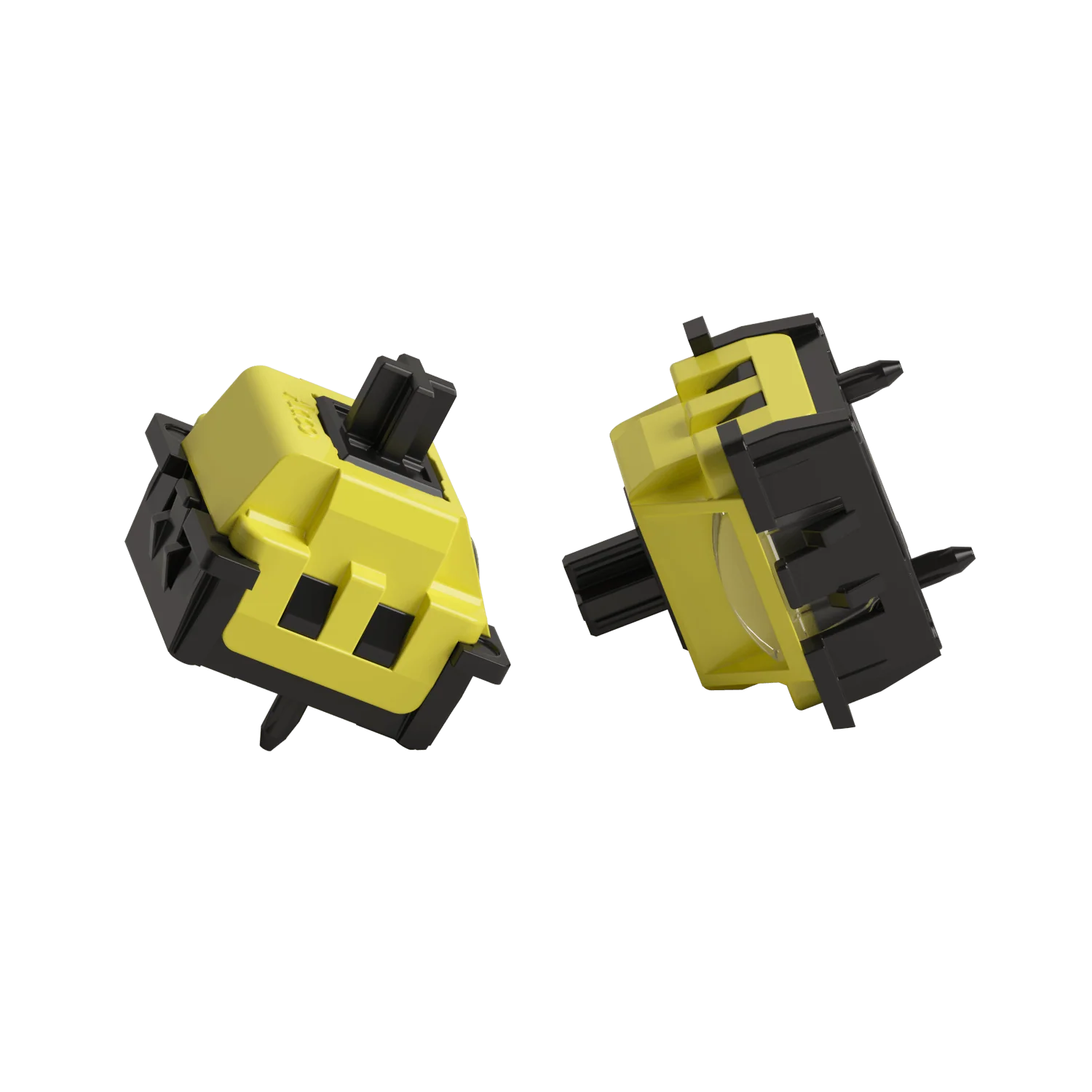

The Akko Flash Magnetic Switch (Lubed) is a factory-lubed, linear MX-style magnetic switch engineered specifically for Hall Effect (HE) mechanical keyboards. Constructed with a premium material layout featuring a POM top, PC stem, and PA66 bottom casing, it provides a smooth, ultra-responsive actuation profile. Boasting a 3.50mm total travel distance, an initial force of 25gf, and a completely custom-defined pre-travel, these switches leverage a downward-facing N-pole magnet optimized for high-performance tracking on both 1.2mm and 1.6mm PCBs.
In stock, ready to ship
Pairs well with
Akko - Flash Magnetic Switch - 5pin (45pcs) Lubed with LED Condenser
45 pcs
€18,48
Akko Flash Magnetic Switch
Type: Magnetic, Linear
Total Travel: 3.5 ± 0.1mm
Initial Force: 25gf Min
End Force: 48gf Max
Initial Magnetic Flux: 90 ± 15GS(PCB1.6mm)/
110+15GS(PCB1.2mm)
Bottom-out Magnetic Flux: 580 ± 50GS(PCB1.6mm)/
720 ± 50GS(PCB1.2mm)
Ultra Light 25gf Initial Force
With a thin layer of factory lubrication
PC housings with POM stem
Light Diffuser - Better RGB Effect
Click to read the full product description
Specifications
| Type | Linear |
|---|---|
| Switch Tech | MX Style |
| Factory Lube | Yes |
| Materials (Top/Stem/Bottom) | POM / PC / PA66 |
| Total Travel | 3.50 ± 0.1mm |
| Pre Travel | Custom Defined |
| Initial Force | 25gf Min |
| End Force | 48gf Max |
| Initial Magnetic Flux |
• 90 ± 15GS (PCB 1.6mm) • 110 ± 15GS (PCB 1.2mm) |
| Bottom-out Magnetic Flux |
• 580 ± 50GS (PCB 1.6mm) • 720 ± 50GS (PCB 1.2mm) |
| Warranty | 1 Year |
Compatibility
| Magnet Orientation | Downward-facing N-pole magnet |
|---|---|
| Keyboard Compatibility | Compatible with Hall Effect (HE) keyboards sharing a similar downward-facing N-pole orientation |
| Known Incompatibilities | Not compatible with MOD007B HE / MOD007 HE YOTD v1 (which utilize a downward-facing S-pole orientation) |
| Important Note | Please verify your keyboard's existing switch specifications and magnetic orientation before ordering |
