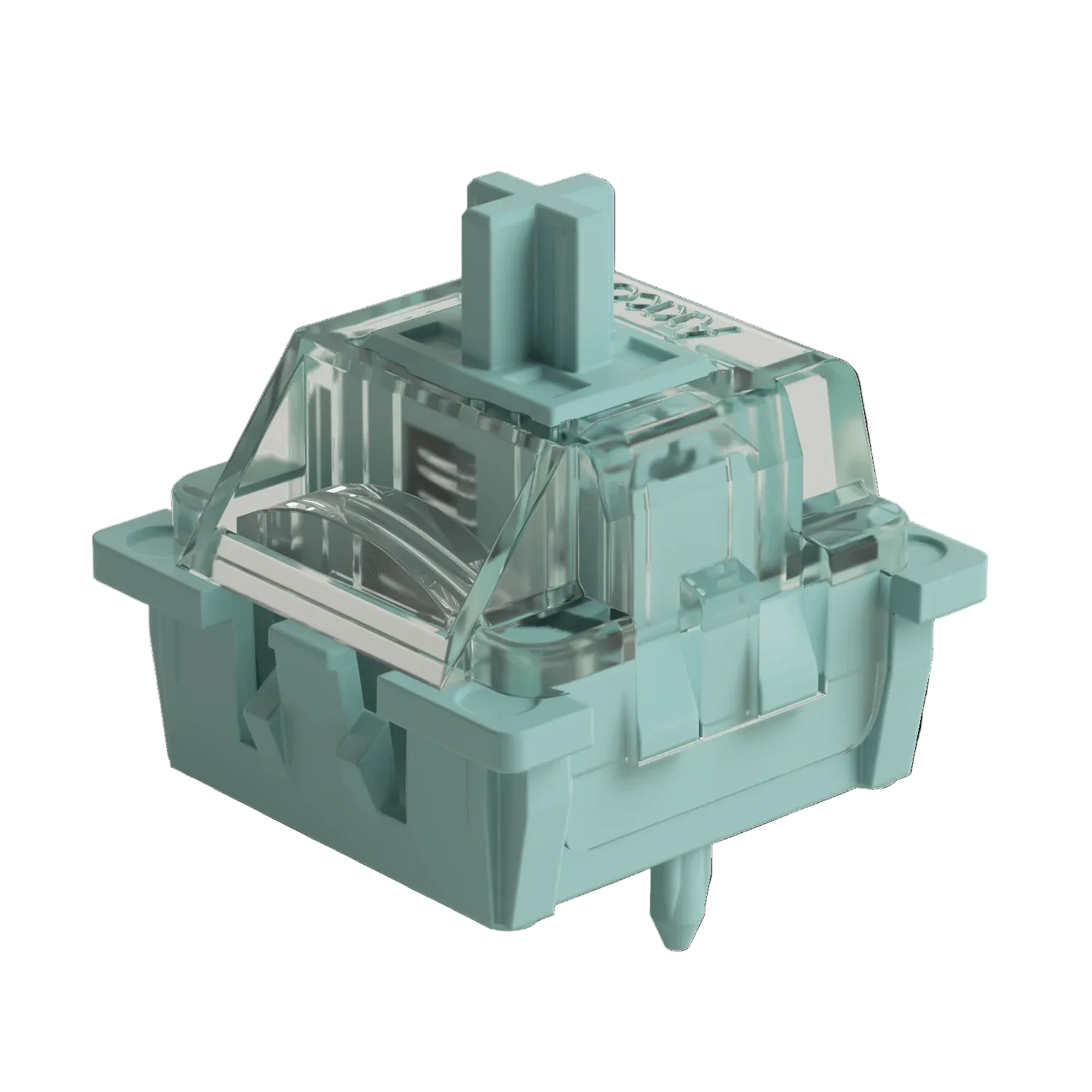

Akko - AstroAim Magnetic Switch - 5pin (45pcs) Lubed with LED Condenser

Akko | SKU: 45A30 | EAN: 6978414650934
src=
src=

Akko AstroAim Magnetic Switch

Type: Linear
Total Travel: 3.5 ± 0.1mm
2mm Force: 45 ± 5gf
Initial Force: 35gf Min
End Force: 55gf Max
Initial Magnetic Flux: 95 ± 15GS(PCB1.6mm)/ 110+15GS(PCB1.2mm)
Bottom-out Magnetic Flux: 580+50GS(PCB1.6mm)/ 720+50GS(PCB1.2mm)

Light 35gf Initial Force

src=

With a thin layer of factory lubrication

src=

PC housings with POM stem

src=

Light Diffuser - Better RGB Effect

src=
src=
src=
src=
Click to read the full product description
Specifications

Type Linear
Switch Tech MX Style
Factory Lube Yes
Pins 5-pin
Quantity 45 pcs
Special Features Integrated LED Condenser
Materials (Top/Stem/Bottom) POM / PC / PA66
Total Travel 3.50 ± 0.1mm
Pre Travel Custom Defined
Initial Force 35gf Min
2mm Force 45 ± 5gf
End Force 55gf Max
Initial Magnetic Flux • 95 ± 15GS (PCB 1.6mm)
• 110 + 15GS (PCB 1.2mm)
Bottom-out Magnetic Flux • 580 ± 50GS (PCB 1.6mm)
• 720 ± 50GS (PCB 1.2mm)
Warranty 1 Year

Compatibility

Magnet Orientation Downward-facing N-pole magnet
Keyboard Compatibility Compatible with Hall Effect (HE) keyboards utilizing a similar downward-facing N-pole orientation
Known Incompatibilities Not compatible with MOD007B HE / MOD007 HE YOTD v1 (which use a downward-facing S-pole orientation)
Important Note Please verify your keyboard's existing switch specifications and magnetic polarity orientation before ordering
