8BitDo - Arcade Controller
Unlock ultra-precise competitive play with the 8BitDo Arcade Controller—a sleek, leverless design that’s as compact as an A4 sheet and just 1.6 cm thin, delivering lightning-fast, all-button arcade control for flawless combo execution
Compatible with Nintendo Switch (3.0.0+) and Windows 10 (1903+) via Bluetooth, 2.4 GHz wireless, or wired USB-C, it offers seriously flexible connectivity and up to 20 hours of play from its rechargeable 1000 mAh Li-ion battery
Customize your setup instantly using the independent control panel with fast-mapping for four programmable buttons, and personalize performance further with hot-swappable Kailh Wizard low-profile mechanical switches and the powerful 8BitDo Ultimate Software V2, featuring macros, SOCD cleaning, and firmware updates
Finished with a fingerprint-proof tempered-glass faceplate, magnetic foldable metal feet, and a non-slip silicone base, it blends pro-level functionality with sleek portability

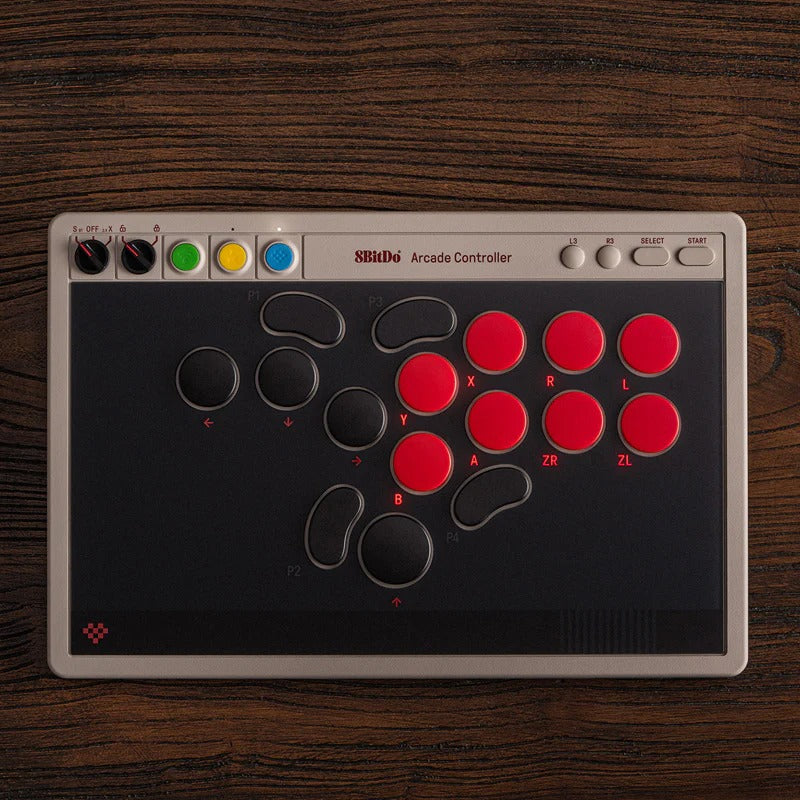

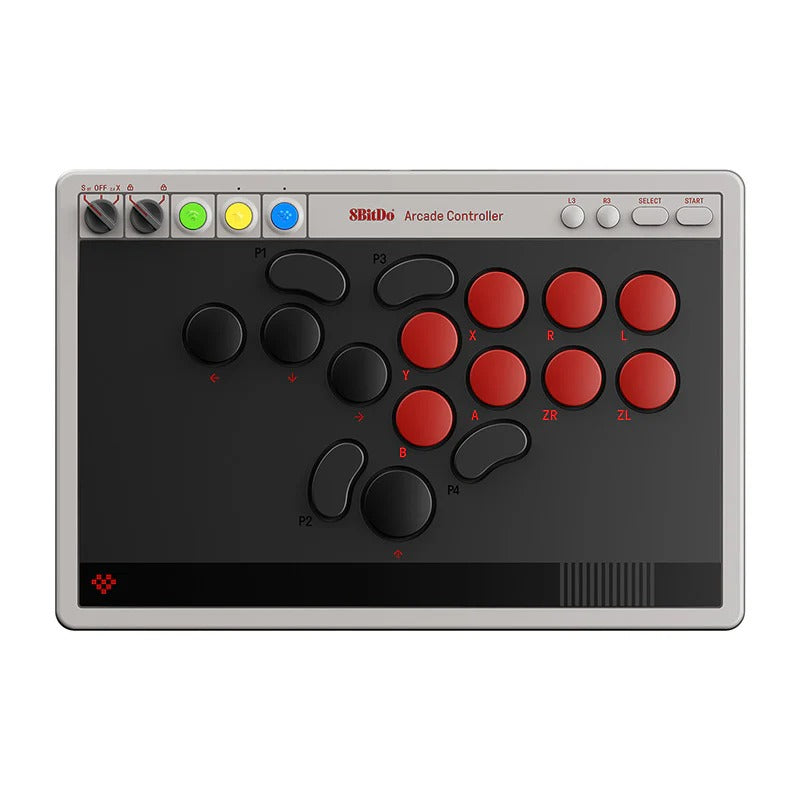

8BitDo Arcade Controller
Built for professionals. Compatible with Switch and Windows.

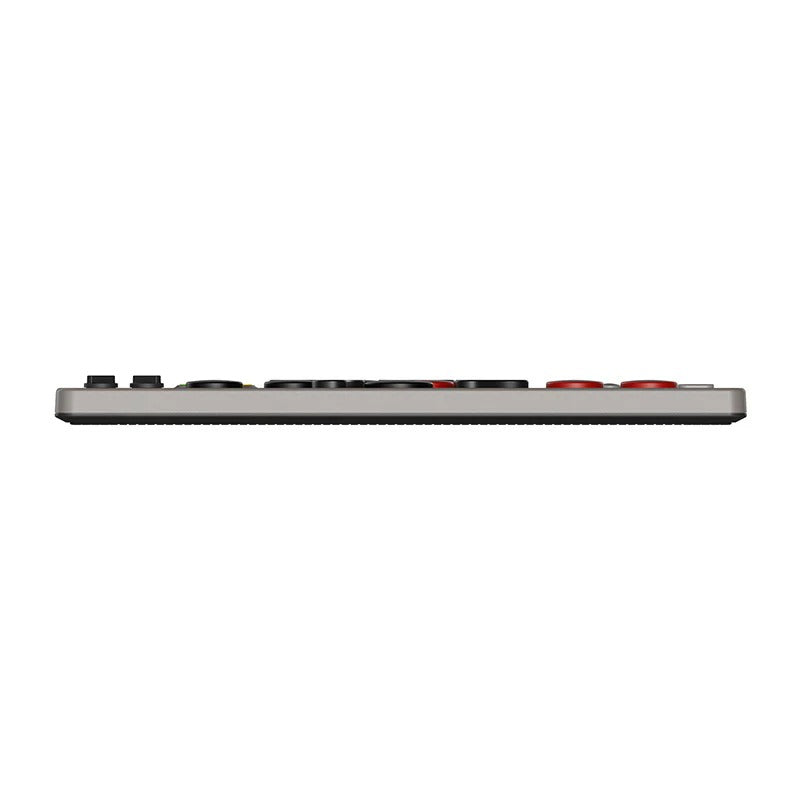

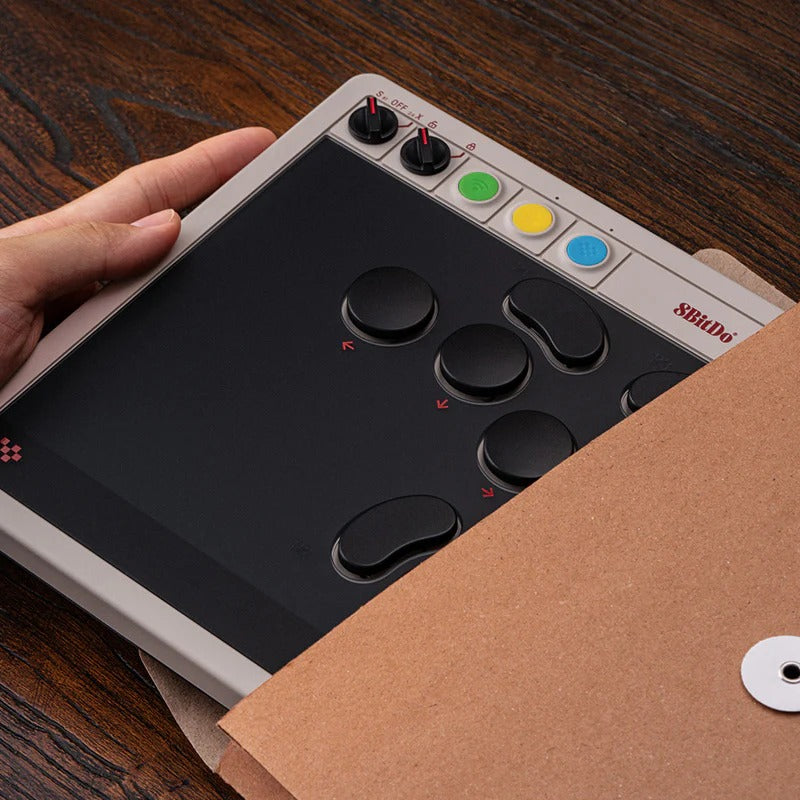

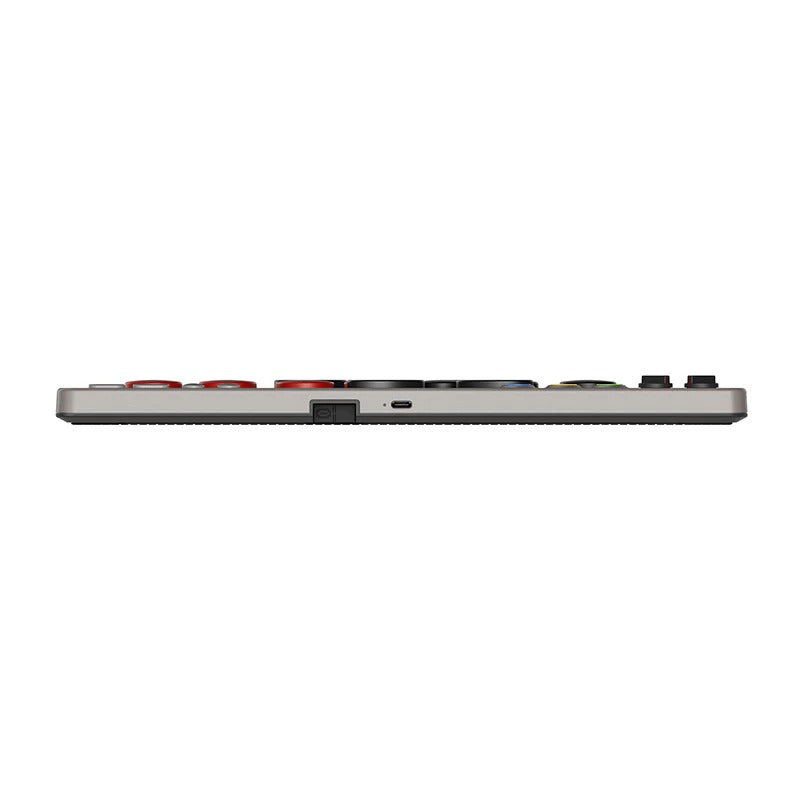

Ultra Thin and Compact
Nearly the same size as an A4 sheet of paper, and as thin as 1.6 cm—almost 1/3 of the thickness of the 8BitDo Arcade Stick. Fight anytime, anywhere.
Leverless. Ultimate Precision
Experience unmatched accuracy and ultra-fast inputs with an all-button arcade design and precise quad-movement layout. Execute combos with greater speed and precision than ever before. Built for competitive fighting games — all at a great value.
Programmable Buttons
Programmable Buttons
Replaceable Lock Caps
Disable the programmable buttons by replacing them with flat lock caps to avoid accidental presses. (4 button lock caps included)
Designed for Pros
Equip yourself with esports-ready features, including SOCD cleaning and tournament lock, for optimal performance in competitive play.
Dynamic Button Layout
When you switch between Switch (S-Input) and PC (X-Input) mode, the Arcade Controller’s dynamic button layout instantly changes its visual layout.

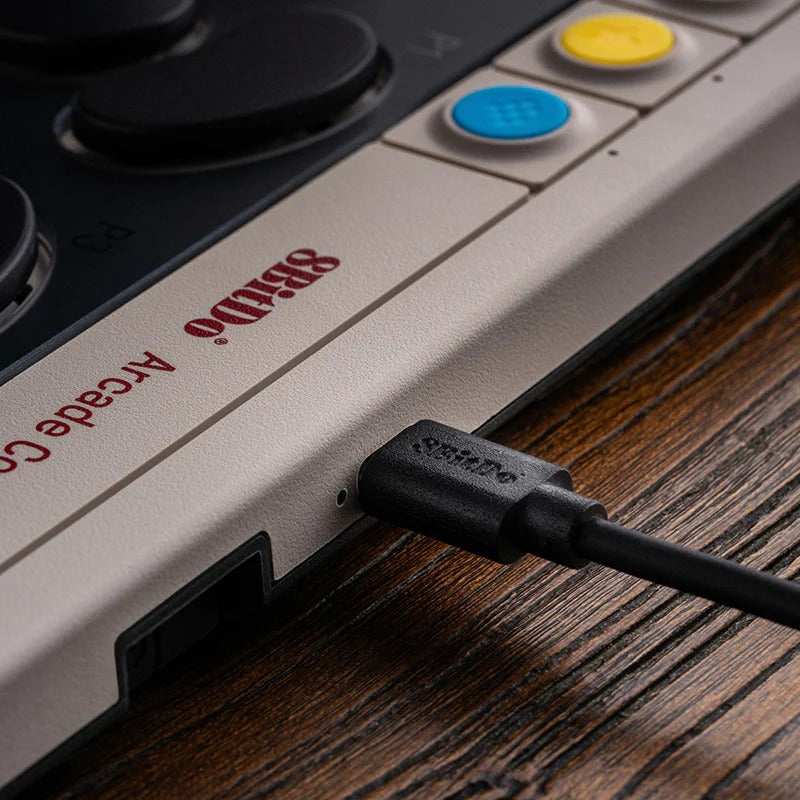

Bluetooth®, 2.4G and Wired Connectivity
Play your way — connect to Switch via Bluetooth, to Windows via 2.4G, or to either device with a wired connection.
Magnetic Foldable Feet
Made of metal. Adjust between two angles for comfort and stability.
Fingerprint-proof Tempered Glass Faceplate
Sleek. Smudge-resistant.
Independent Control Panel
Easily adjust connection modes, volume, and map buttons with intuitive controls. Say goodbye to complex shortcuts and enjoy simple, effective operation with just a turn and a click.
Low-profile Switches
Non-slip Silicone Mat
Magnetic Adapter Compartment

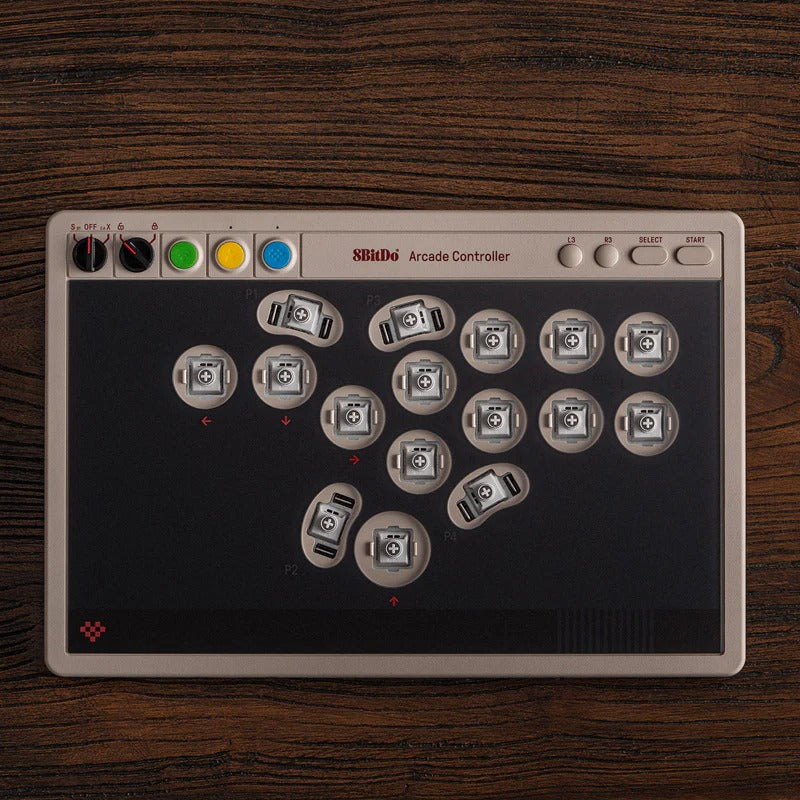

Hot-swappable PCB
Features 16 Kailh Wizard low-profile mechanical switches, allowing you to customize with other switches that fit your needs.
Support 8BitDo Ultimate Software V2
Customize your controller with 8BitDo Ultimate Software and have elite control over every piece of your controller.
Mapping
Assign buttons to your preferred functions.
Macros
Assign a long sequence and action to one single button.
SOCD Modes
Switch between different modes of SOCD.
Firmware Update
Access the latest features and keep your controller up-to-date.
Specification
| Dimension | 301*201*22 mm |
|---|---|
| Weight | 1097g |
| Battery Type | 1000mAh Li-ion battery, rechargeable |
| Battery Life | 20 hours of usage time via Bluetooth connection and wireless 2.4G connection
3 hours charging time |
| Connectivity | 2.4G - Windows Bluetooth - Switch Wired - Windows / Switch |
| Special Features | All-button arcade controller design 3 connection modes 4 programmable buttons with fast-mapping Independent control panel Kailh Wizard low-profile mechanical switches Hot-swappable PCB Support SOCD cleaning and tournament lock Support 8BitDo Ultimate Software V2 |
| Warranty | 1 year |
Compatibility
| Compatibility | Windows 10 (1903) and above |
|---|---|
| Switch 3.0.0 and above |
Package content
| Includes | 8BitDo Arcade Controller |
|---|---|
| 2.4G Adapter | |
| Lock Caps x 4 (for programmable buttons) | |
| Cable | |
| Manual |
